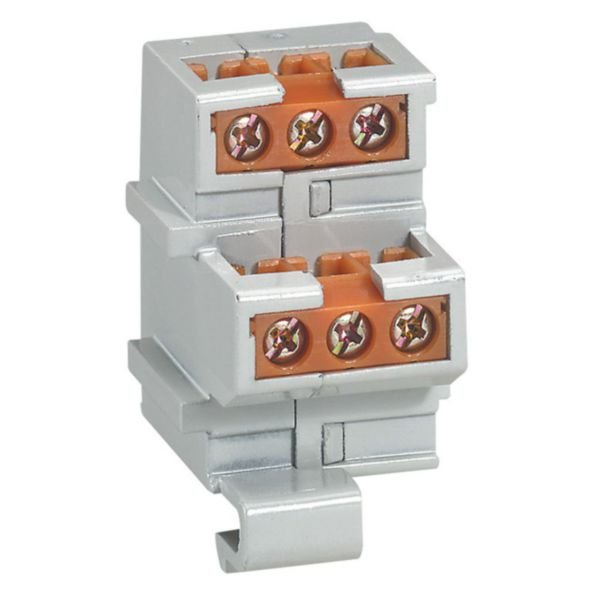

Shunt Trip for DRX | 12V AC/DC | Compatible with DRX 250 MCCBs | Screw Connection | @Each of 1 | by Legrand
The Shunt Trip for DRX operates at 12V AC/DC, making it ideal for enhancing electrical safety in switchboards and power cabinets. Designed for compatibility with DRX 250 thermal magnetic MCCBs, it features a screw connection for easy installation. Perfect for qualified electricians, this device ensures reliable control and protection of low-voltage electrical lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated control supply voltage AC 50 Hz: 12 V
- Rated control supply voltage AC 60 Hz: 12 V
- Rated control supply voltage DC: 12 V
- Voltage type for actuating: AC/DC
- Type of electric connection: Screw connection
- Number of contacts as normally open contact: 0
- Number of contacts as normally closed contact: 0
- Number of contacts as change-over contact: 0
- Suitable for power circuit breaker, off-load switch, motor safety switch, overload relay
- Dimensions (H x L x W): 80mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- Compatible with DRX 250 thermal magnetic MCCBs from 125 to 250 A
- Suitable for power circuit breakers, off-load switches, motor safety switches, and overload relays
- Supplied with M8 terminals, fixing screws, and insulating shields
- Conforms to IEC 60947-2 standards
- Operates at 12 V AC/DC control supply voltage
- Screw connection type for electric connection
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with safety standards and proper integration with existing electrical systems.
Applications
- Switchboards and power cabinets
- Circuit breaker and moulded case switch applications
- Control, isolation, and protection of low-voltage electrical lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
