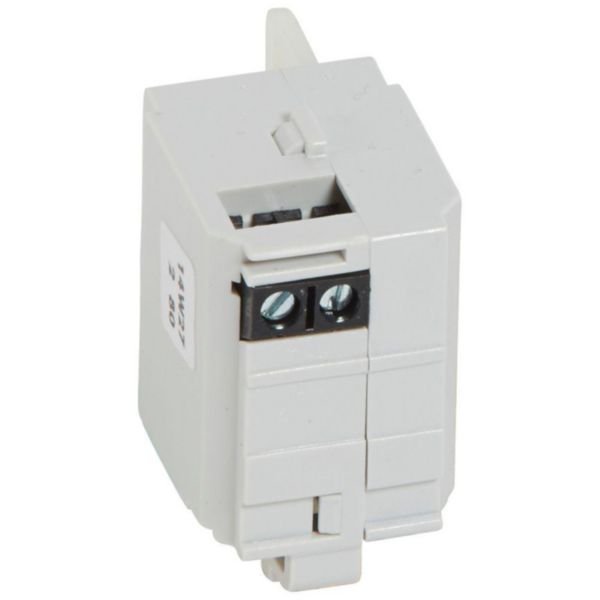

Shunt Trip for DRX | 200-277 V AC | Screw Connection | IEC 60947-2 Compliant | @EA of 1 | by Legrand
The Shunt Trip for DRX operates at 200-277 V AC, making it ideal for switching, control, and protection of low-voltage electrical lines. Designed for use with DRX 250 thermal magnetic MCCBs, it features a screw connection for easy installation. Perfect for switchboards and power cabinets, this device enhances electrical safety and supports efficient system management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated control supply voltage AC 50 Hz: 200-277 V
- Rated control supply voltage AC 60 Hz: 200-277 V
- Voltage type for actuating: AC
- Type of electric connection: Screw connection
- Number of contacts as normally open contact: 0
- Number of contacts as normally closed contact: 0
- Number of contacts as change-over contact: 0
- Suitable for power circuit breaker, off-load switch, motor safety switch, overload relay
- Dimensions (H x L x W): 100mm x 80mm x 50mm
- Weight: 0.3 kg
Key Features
- Compatible with DRX 250 thermal magnetic MCCBs from 125 to 250 A
- Suitable for switching, control, isolation, and protection of low-voltage electrical lines
- Supplied with M8 terminals, fixing screws, and insulating shields
- Fixed thermal and magnetic protection
- Conforms to IEC 60947-2
- Rated control supply voltage: 200-277 V AC at 50/60 Hz
- Screw connection type
- Suitable for power circuit breakers, off-load switches, motor safety switches, and overload relays
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with MCCBs.
Applications
- Switchboards and power cabinets
- Circuit breaker and moulded case switch applications
- Control, isolation, and protection of low-voltage electrical lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of faults and electrical fires
- Supports efficient electrical system management minimizing energy waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.
Available Now
Legrand Shunt Trip for DRX 200/277 V~ is available for immediate purchase, ideal for use in switchboards and power cabinets for electrical protection and control.
