Shunt Trip for DRX | 24V AC/DC | Screw Connection | IEC 60947-2 Compliant | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 027151
$298.90 List price: $372.40
+ −
30 Days Return Delivery Options

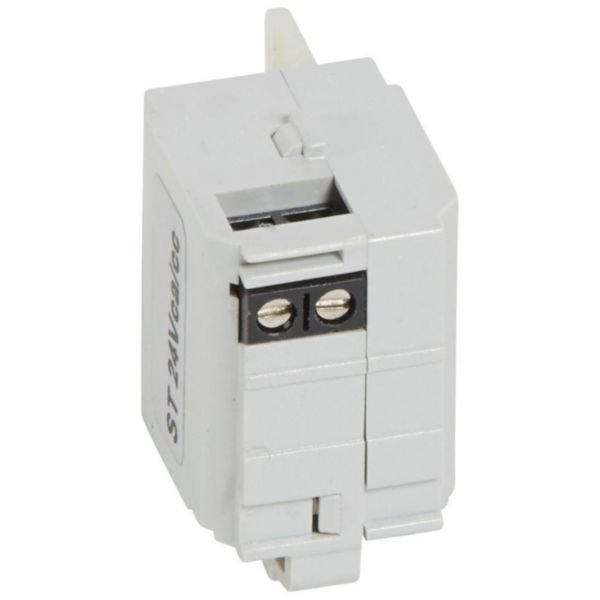

The Shunt Trip for DRX operates at 24V AC/DC, making it ideal for controlling and protecting low-voltage electrical lines. Designed for use with thermal magnetic MCCBs from 125 to 250 A, it features a screw connection for easy installation. This reliable component enhances electrical safety and supports efficient system management, ensuring compliance with IEC 60947-2 standards.

Product Name/Title: Shunt Trip for DRX | 24V AC/DC | Screw Connection | IEC 60947-2 Compliant | @EA of 1 | by Legrand

Brand: Legrand

SKU: 027151

Alternatively Known As: Shunt Trip for DRX 24V, DRX Shunt Release, Circuit Breaker Shunt Trip, MCCB Shunt Trip

Technical Specifications
  • Rated control supply voltage AC 50 Hz: 24 V
  • Rated control supply voltage AC 60 Hz: 24 V
  • Rated control supply voltage DC: 24 V
  • Voltage type for actuating: AC/DC
  • Type of electric connection: Screw connection
  • Number of contacts as normally open contact: 0
  • Number of contacts as normally closed contact: 0
  • Number of contacts as change-over contact: 0
  • Suitable for power circuit breaker, off-load switch, motor safety switch, overload relay
  • Dimensions (H x L x W): 80mm x 60mm x 50mm
  • Weight: 0.3 kg
Key Features
  • Compatible with DRX 250 thermal magnetic MCCBs (125 to 250 A)
  • Operates at 24 V AC/DC control supply voltage
  • Screw connection type for electric connection
  • Includes M8 terminals, fixing screws, and insulating shields
  • Conforms to IEC 60947-2 standards
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure compliance with safety standards and proper integration with MCCBs.
Applications
  • Control and protection of low-voltage electrical lines
  • Use with thermal magnetic MCCBs from 125 to 250 A
  • Suitable for power circuit breakers, off-load switches, motor safety switches, and overload relays
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enhances electrical safety reducing risk of faults and electrical fires
  • Supports efficient electrical system management and protection
Warranty Information

Standard manufacturer warranty applies, typically 1 year against manufacturing defects.

Available Now

Legrand Shunt Trip for DRX 24 V AC/DC is available for immediate purchase, ideal for electrical switchboards and power cabinet applications.
