Shunt Trip Release with OC Contact | 12-24 VAC | DIN Rail Mount by Clipsal
Shunt trip release with OC contact and 12-24 VAC voltage—ideal for circuit protection in residential and small commercial buildings. Built for enhanced safety, with easy DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

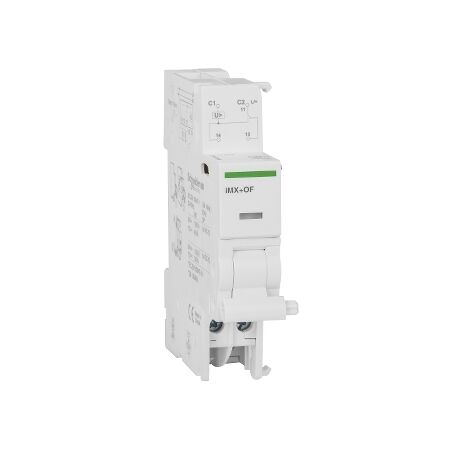

Product Name/Title: Acti9, Shunt trip release with OC contact, iMX+OF, voltage release, 12...24 VAC
Brand: Clipsal
SKU: A9A26948
Alternatively Known As: Shunt Trip Release, Acti9 Circuit Protection, Clipsal iMX+OF
Technical Specifications
- Rated current: AC-12 6 A at 12 V, AC 50 Hz; AC-12 6 A at 24 V, AC 50 Hz; DC-12 6 A at 12 V; DC-12 6 A at 24 V.
- Control circuit voltage: 12...24 V AC 50/60 Hz, 12...24 V DC.
- Relative humidity: 95% at 55 °C.
- Ambient air temperature for operation: -35...70 °C.
- Ambient air temperature for storage: -40...85 °C.
- Tropicalisation: 2 conforming to EN/IEC 60947-5-1.
- Dimensions (H x L x W): 77mm x 95mm x 18mm
- Weight: 0.1 kg
Key Features
- Shunt trip release with OC contact for enhanced safety.
- Compatible with Acti9 range including iC65, iDPN Vigi, and more.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes and small commercial buildings
- General: Circuit protection in various electrical installations
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Complies with EN/IEC 60947-1 and EN/IEC 60947-5-1 standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Acti9 Shunt Trip Release with OC Contact is available now for immediate purchase. Ideal for circuit protection in residential and small commercial applications.
