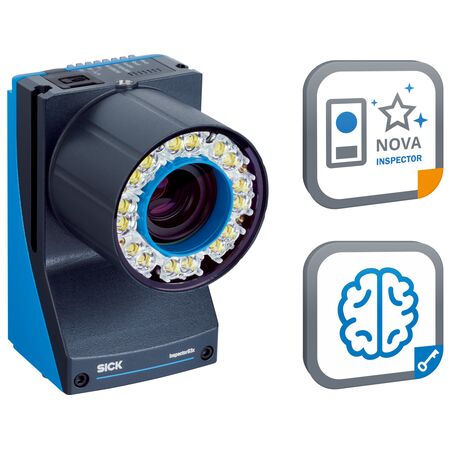

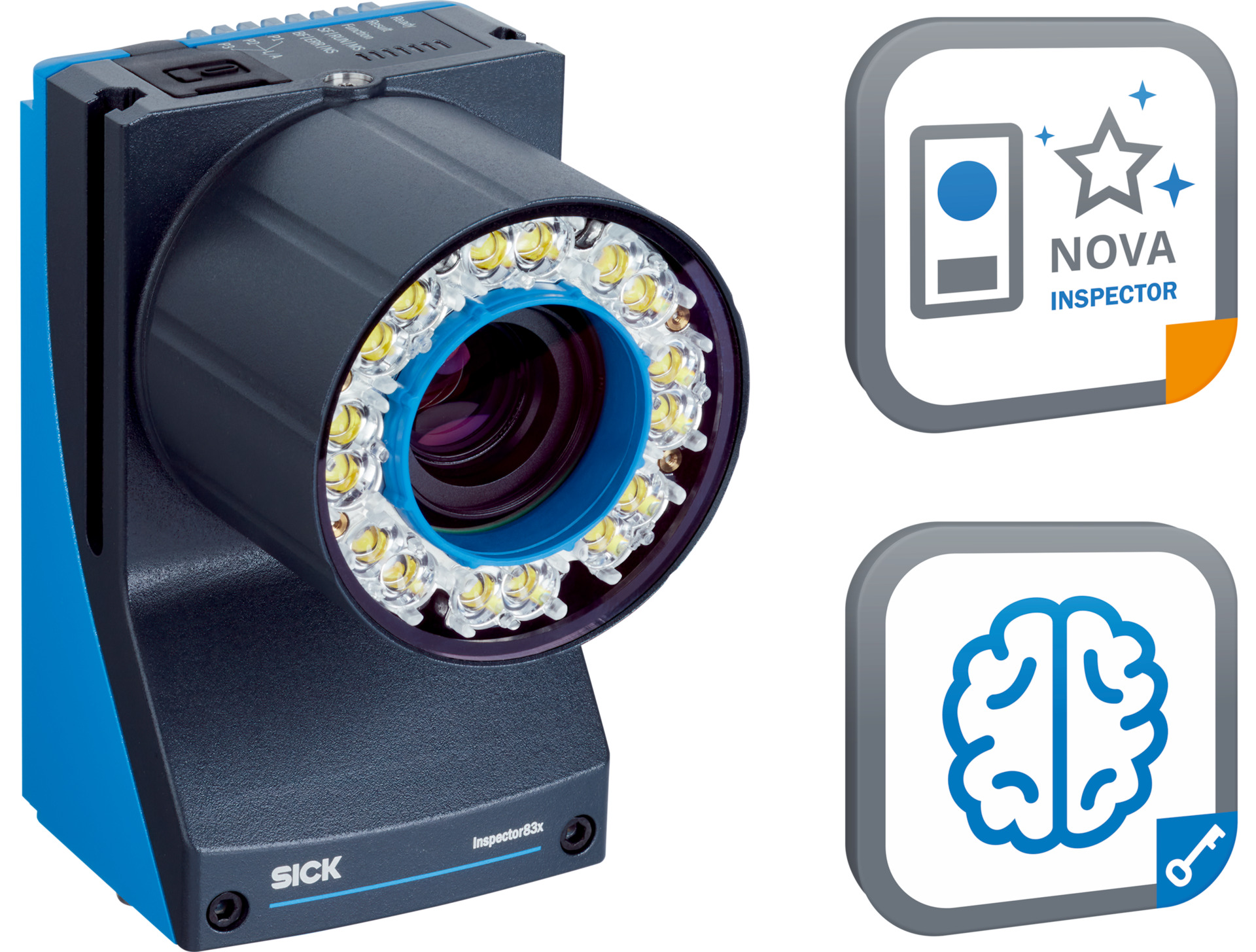

SICK 2D Snapshot Sensor | 5.1 Megapixel Resolution | Global-Shutter Technology | IP65 Rated | by SICK
The SICK 2D Snapshot Sensor offers high-performance imaging with a 5.1 Megapixel resolution and global-shutter technology, making it ideal for industrial automation and quality control applications. With integrated white LED illumination and multiple connectivity options, this sensor is perfect for detecting objects, measuring dimensions, and identifying 2D codes. Built for durability with an IP65 rating, it ensures reliable operation in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixel)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Scan/frame rate: 30 Hz
- Illumination: Integrated white LED, 6,500 K ± 1,000 K
- Shutter technology: Global-Shutter
- Optical focus: Adjustable manually
- Lens: C-mount, 16 mm focal length, 1/1.8" optical format
- Power supply: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Connectivity: 1x M12 17-pin male (Power, I/O), 1x M8 4-pin female (external illumination), 1x M12 8-pin female (Gigabit Ethernet), 2x M12 4-pin female (fieldbus Ethernet)
- Interfaces: Ethernet TCP/IP, PROFINET Dual Port, EtherNet/IP Dual Port
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- MTBF: 100,000 hours
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K ± 1,000 K)
- Adjustable manual optical focus
- Global-Shutter shutter technology
- High sensor resolution of 5.1 Megapixels (2464 x 2048 px)
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP
- Robust aluminum die-cast housing with IP65 rating
- Supports SICK Nova Tool plug-in for custom tool development
- License included with no time limit
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and network protocols to ensure optimal performance and safety.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED illumination reduces external lighting needs, lowering energy consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Supports software updates and tool customization, minimizing hardware replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8305P-1CCKDXAF1SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial automation, quality control, and inspection applications.
