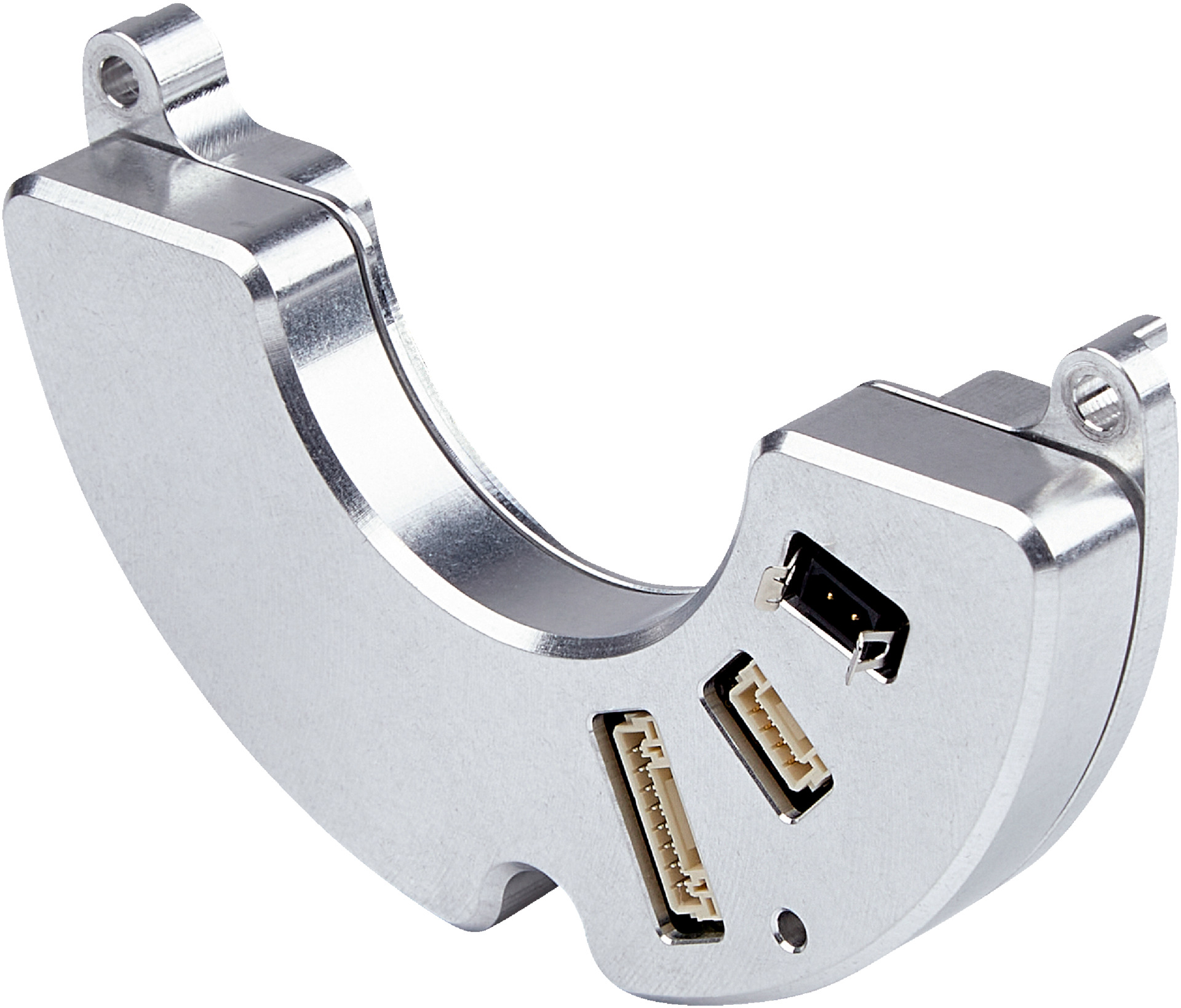

SICK Acceleration Sensor SHUB10 | ±50 g Measuring Range | 10 kHz Bandwidth | 13 Bit Resolution | by SICK
The SICK Acceleration Sensor SHUB10 is designed for precise position and vibration measurement in industrial automation. With a measuring range of ±50 g and a bandwidth of 10 kHz, it ensures accurate data for machine condition monitoring and predictive maintenance. Built for reliability, it features a fast initialization time and robust design, making it ideal for robotics and motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Acceleration sensor
- Measuring range: ±50 g
- Bandwidth: 10 kHz
- Resolution: 13 bit
- Measuring step: 24.4 mg/digit
- Maximum sample rate: 32 kS/s synchronous to position sampling
- Signal noise density: 25 µg/√Hz
- Communication interface: HIPERFACE DSL®
- Initialization time: ≤ 500 ms
- Connection type: Female connector, 8-pin
- Supply voltage: 7 V to 12 V
- Current consumption: ≤ 300 mA
- Operating temperature range: –40 °C to +115 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 50 g, 10 Hz to 2000 Hz
- Enclosure rating: IP40 with mating plug inserted
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.25 kg
Key Features
- Includes cable (part number: 2115196) with delivery
- High mean time to dangerous failure (MTTFD) of 140 years according to EN ISO 13849
- Acceleration sensor with ±50 g measuring range and 10 kHz bandwidth
- High resolution 13 bit with 24.4 mg/digit measuring step
- Maximum sample rate of 32 kS/s synchronous to position sampling
- Signal noise density of 25 µg/√Hz
- Communication via HIPERFACE DSL® interface
- Fast initialization time ≤ 500 ms
- Operating temperature range from –40 °C to +115 °C
- Shock resistance of 100 g for 6 ms and vibration resistance 50 g from 10 Hz to 2000 Hz
- IP40 enclosure rating with mating plug inserted
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with HIPERFACE DSL communication and industrial sensor integration to ensure proper connection and operation.
Applications
- Industrial automation for precise position and vibration measurement
- Machine condition monitoring and predictive maintenance
- Robotics and motion control systems requiring accurate acceleration data
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables predictive maintenance reducing machine downtime and resource waste
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

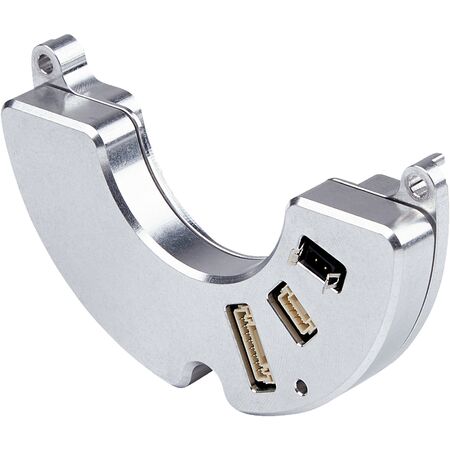

The SICK SHUB10-0ZA87010 acceleration sensor is available for immediate purchase, ideal for industrial automation and condition monitoring applications.
