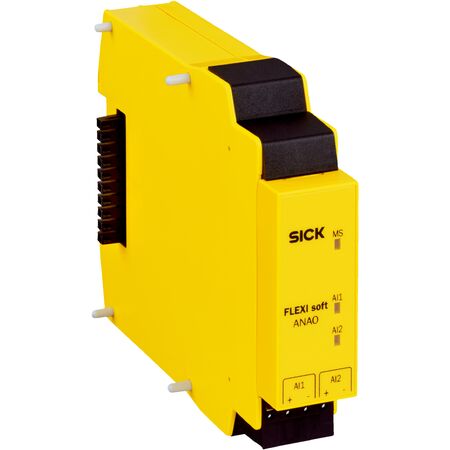

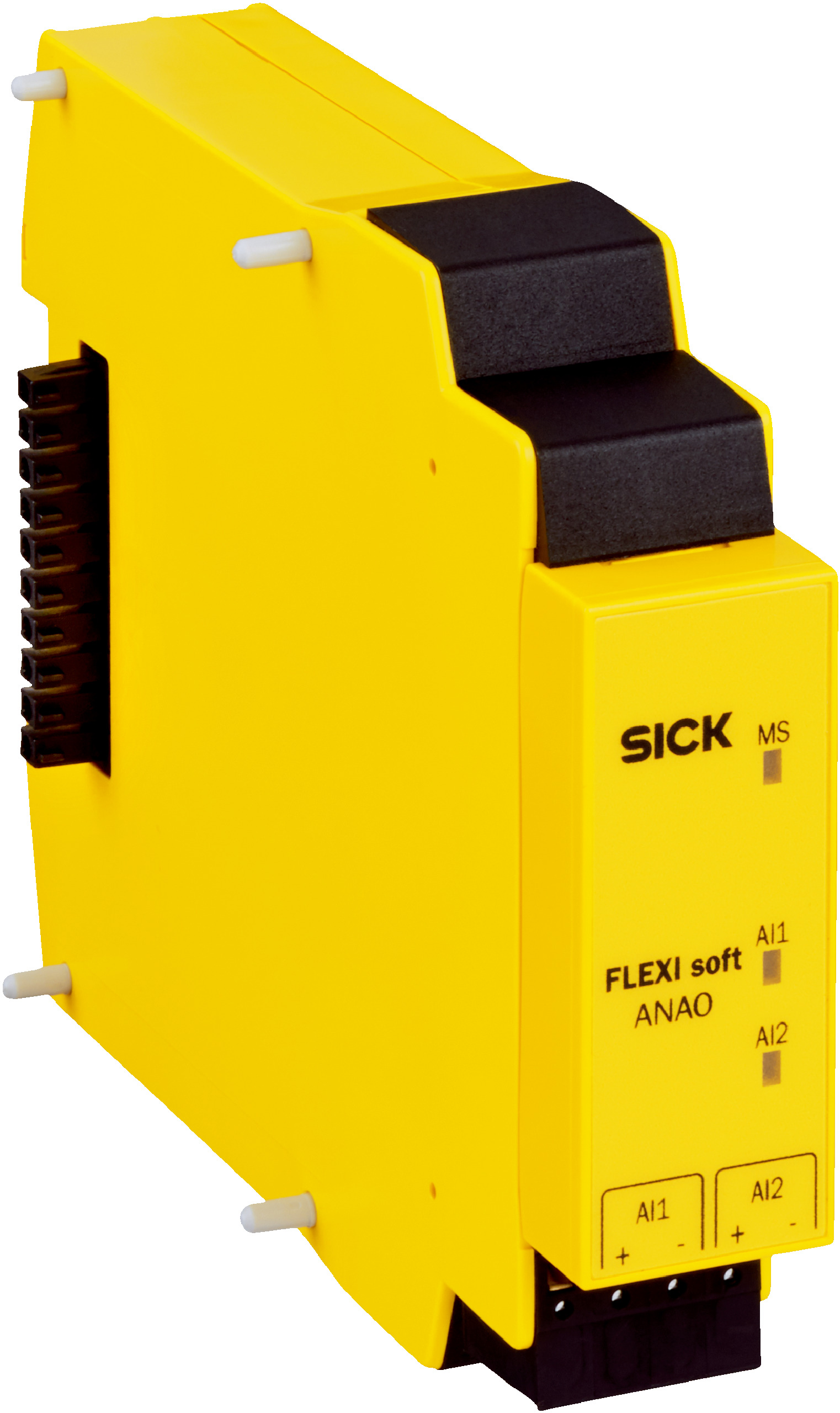

SICK Analog Input Module FX3-ANA020002 | SIL 3 Safety Level | 2 Safe Analog Inputs | IP20 Enclosure | by SICK
The SICK Analog Input Module FX3-ANA020002 is designed for industrial automation systems requiring safe analog input monitoring. With two safe analog inputs and a SIL 3 safety integrity level, it ensures reliable performance in safety-related control systems. Ideal for machine safety and limit value monitoring applications, this module features low power consumption and is configured via Flexi Soft Designer software.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK Analog Input Module FX3-ANA020002 | SIL 3 Safety Level | 2 Safe Analog Inputs | IP20 Enclosure | by SICK
Brand: SICK
SKU: 1051134
Alternatively Known As: SICK Analog Input Module FX3-ANA020002, FX3 ANA020002, Safety Analog Input Module
Technical Specifications
- Module type: Analog input module
- Configuration method: Via Flexi Soft Designer software
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 0.166 x 10^-9
- Mission time: 20 years (EN ISO 13849-1)
- Number of safe analog inputs: 2
- Connection type: Plug-in spring terminals
- Protection class: III (EN 61140)
- Voltage supply: Via FLEXBUS+
- Internal power consumption: ≤ 2 W
- Input voltage: ≤ 30 V DC
- Input current: ≤ 30 mA
- Current measuring range: 4 mA to 20 mA
- Current input measuring range: 3.5 mA to 20.5 mA
- Input resistance: 50 Ω
- Enclosure rating: IP20 (EN 60529)
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: ≤ 95%, non-condensing
- Dimensions (H x L x W): 96.5mm x 120.6mm x 22.5mm
- Weight: 0.117 kg
Key Features
- Analog input module with 2 safe analog inputs
- Configuration via Flexi Soft Designer software
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance level PL e (EN ISO 13849)
- Limit value monitoring and signal range detection functions
- Plug-in spring terminal connection type
- Low internal power consumption ≤ 2 W
- Input voltage up to 30 V DC and input current up to 30 mA
- Current measuring range 4 mA to 20 mA
- Protection class III (EN 61140)
- Ambient operating temperature from -25 °C to +55 °C
- Enclosure rating IP20 (EN 60529)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and compliant with relevant electrical and safety standards.
Applications
- Industrial automation systems requiring safe analog input monitoring
- Safety-related control systems with SIL 3 and PL e requirements
- Machine safety and limit value monitoring applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Designed for long operational life minimizing electronic waste
- Complies with China-RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK FX3-ANA020002 Analog Input Module is available for immediate purchase, ideal for industrial safety and automation applications requiring high integrity analog input monitoring.
