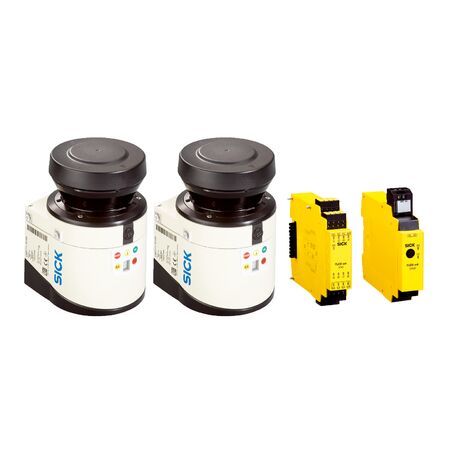

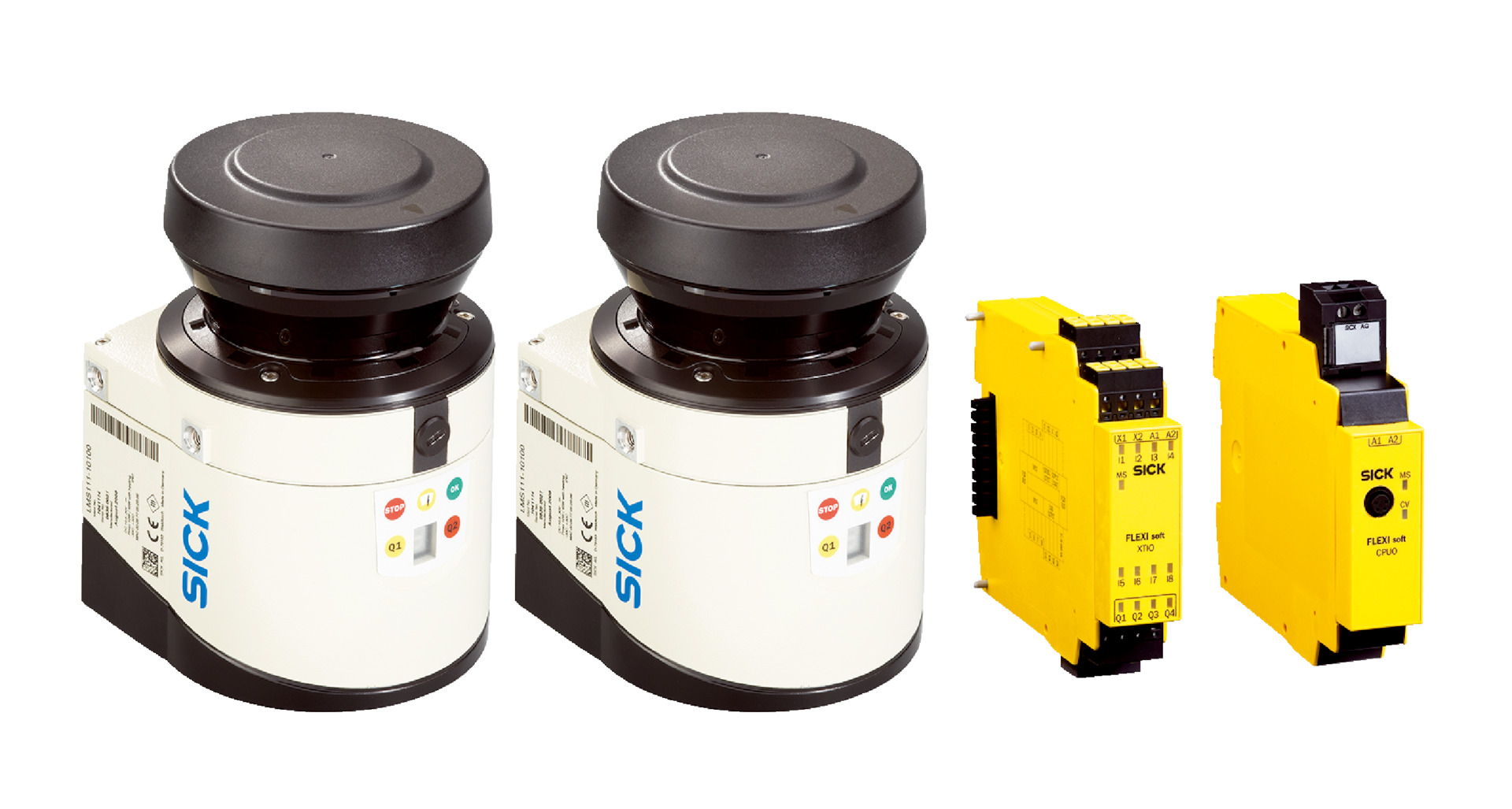

SICK AOS102 LiDAR Scanner | Dual LMS111 Sensors | 270° Aperture Angle | 18m Range | by SICK
The SICK AOS102 LiDAR Scanner features dual LMS111 sensors with a 270° aperture angle, providing a maximum range of 18 meters for precise object detection. Designed for industrial automation, this robust system operates efficiently in challenging environments, with an IP65/IP67 rating ensuring durability. Ideal for applications in environmental scanning and monitoring, it offers reliable performance with a response time of 240 ms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor model: LMS111-10100S01
- Number of sensors: 2
- Aperture angle: 270°
- Max range with 10% reflectivity: 18 m
- Supply voltage: 24 V DC
- Power consumption: 8 W per LMS111 sensor, heating 35 W per LMS
- Enclosure rating: IP65/IP67 for sensor, IP20 for control unit
- Response time: 240 ms
- Number of safety inputs: 8
- Number of safe outputs: 4
- Configuration interfaces: Ethernet (sensor), USB (control)
- Operating temperature: -30°C to +50°C (sensor), -25°C to +55°C (control)
- Storage temperature: -30°C to +70°C (sensor), -25°C to +70°C (control)
- Ambient light immunity: 40,000 lx
- Vibration resistance: IEC 60068-2-6:2007-12
- Shock resistance: IEC 60068-2-27:2008-03
- Dimensions (H x L x W): 162mm x 102mm x 105mm
- Weight: 1.1 kg
Key Features
- Dual LMS111-10100S01 sensors with 270° aperture angle
- Maximum range of 18 meters at 10% reflectivity
- IP65/IP67 rated sensor housing for robust environmental protection
- Ethernet and USB configuration interfaces
- 8 safety inputs and 4 safe outputs
- Response time of 240 ms
- Operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation and object detection
- Non-safety related monitoring and detection tasks
- Environmental scanning and mapping
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient 24 V DC operation reduces power consumption
- Durable IP65/IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK AG for detailed warranty terms.
Available Now
The SICK AOS102 LiDAR Object Detection System is available for immediate purchase, ideal for industrial automation and object detection applications.
