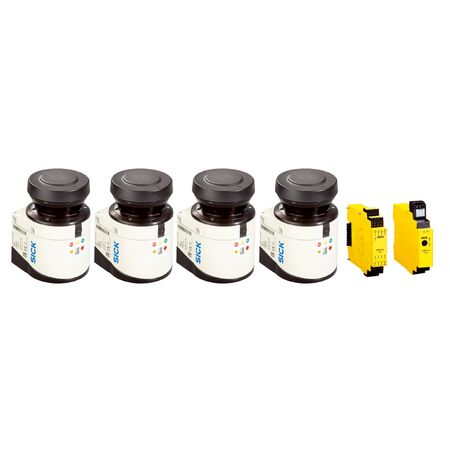

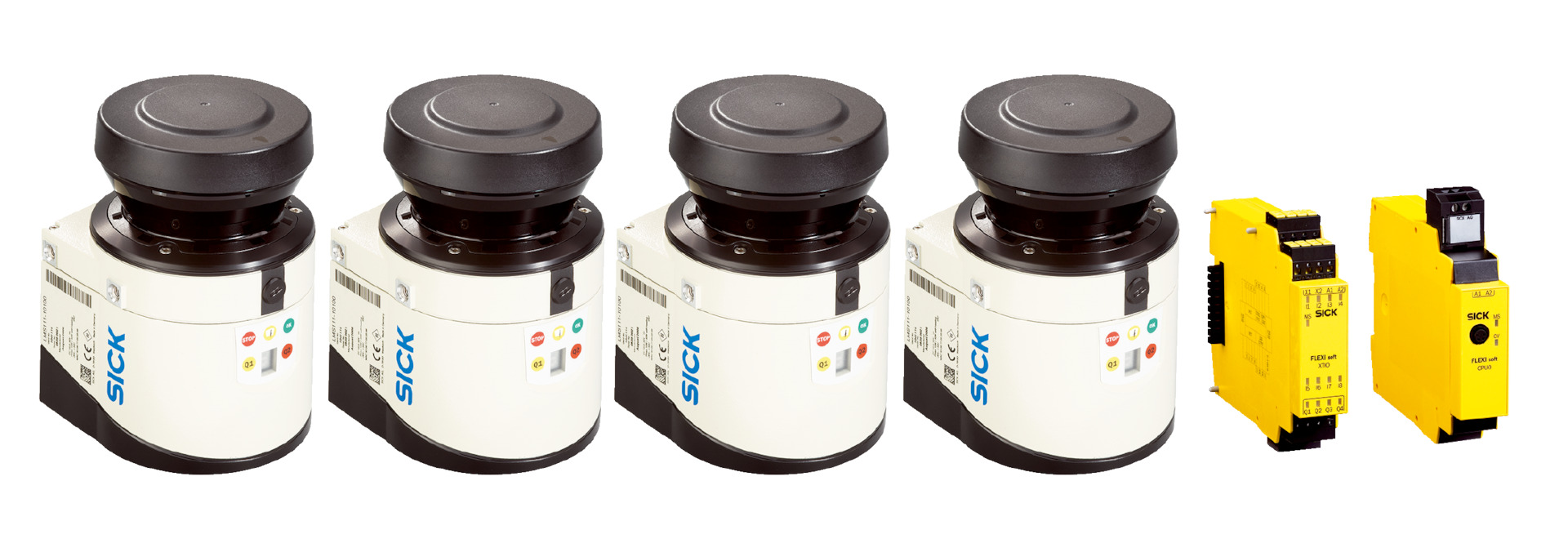

SICK AOS104 RTG LiDAR Object Detection System | 4 Laser Scanners | 270° Aperture Angle | 18m Detection Range | by SICK
The SICK AOS104 RTG LiDAR Object Detection System features four LMS111-10100S01 laser scanners with a 270° aperture angle, providing a maximum detection range of 18 meters. Designed for industrial automation and safety monitoring, this robust system is IP65/IP67 rated, ensuring durability in harsh environments while offering fast response times and multiple safety inputs and outputs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor model: LMS111-10100S01
- Number of sensors: 4
- Aperture angle: 270°
- Max range with 10% reflectivity: 18 m
- Supply voltage: 24 V DC
- Power consumption: 8 W per LMS111 plus 35 W heating per LMS
- Enclosure rating: IP65/IP67 for sensor, IP20 for control
- Response time: 240 ms
- Number of safety inputs: 16
- Number of safe outputs: 8
- Configuration interfaces: Ethernet (sensor), USB (control)
- Operating temperature: Sensor -30°C to +50°C, Control -25°C to +55°C
- Storage temperature: -30°C to +70°C
- Ambient light immunity: 40,000 lx
- Vibration resistance: IEC 60068-2-6:2007-12
- Shock resistance: IEC 60068-2-27:2008-03
- Dimensions (H x L x W): 162mm x 102mm x 105mm
- Weight: 1.1 kg
Key Features
- Four LMS111-10100S01 laser scanners with 270° aperture angle
- Maximum detection range of 18 meters at 10% reflectivity
- Robust IP65/IP67 rated sensor housing for harsh environments
- Fast response time of 240 ms
- Multiple safety inputs (16) and safe outputs (8)
- Ethernet and USB configuration interfaces
- Includes mounting kits and weather protection covers
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation and object detection
- Safety monitoring in manufacturing environments
- Non-human safety detection applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient 24 V DC operation reduces power consumption
- Durable IP65/IP67 housing extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK AOS104 RTG LiDAR Object Detection System is available for immediate purchase, ideal for industrial automation and object detection applications.
