SICK AOS501 LiDAR Sensor | 190° Aperture Angle | 40m Max Range | IP65/IP67 Rated | by SICK

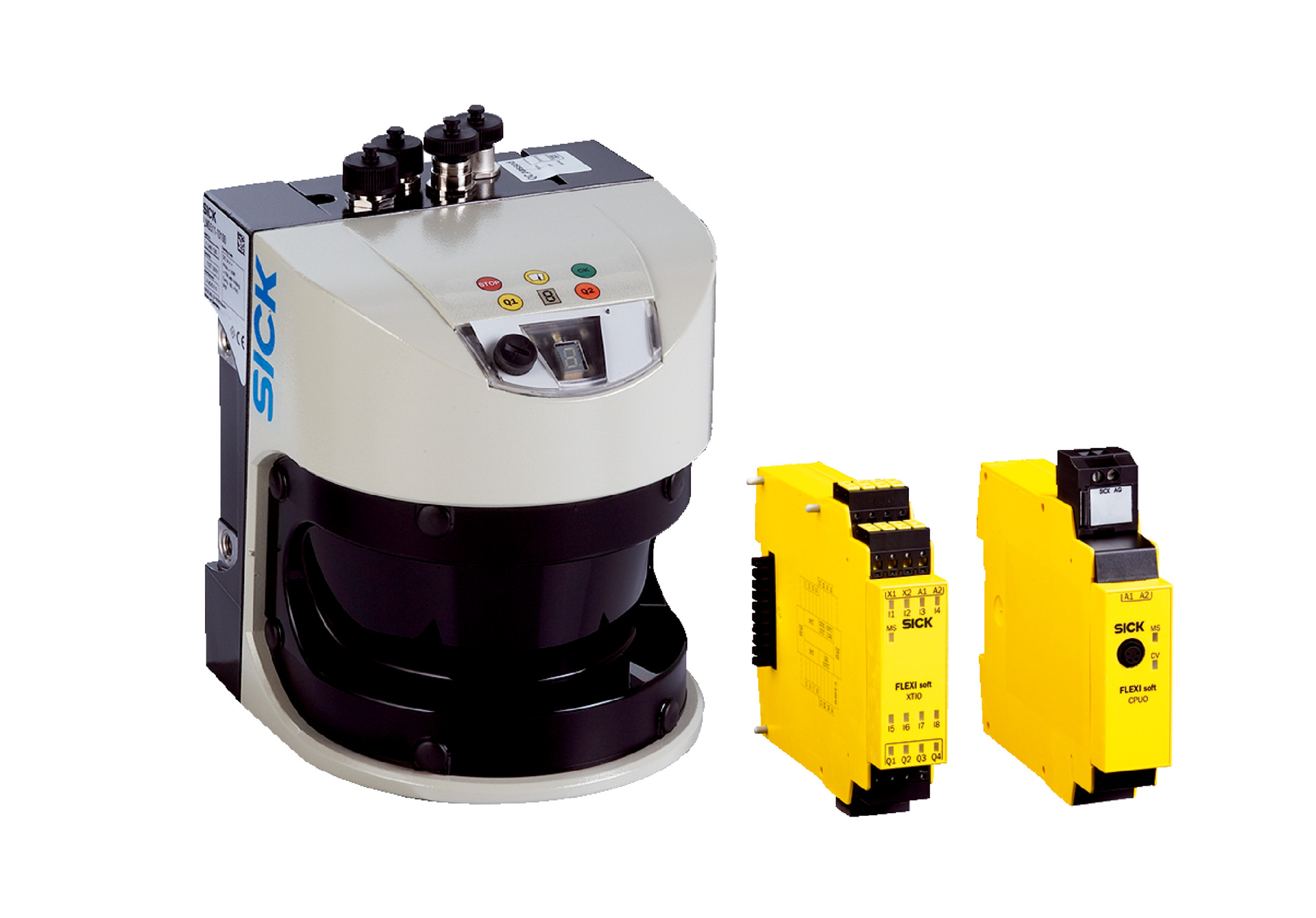

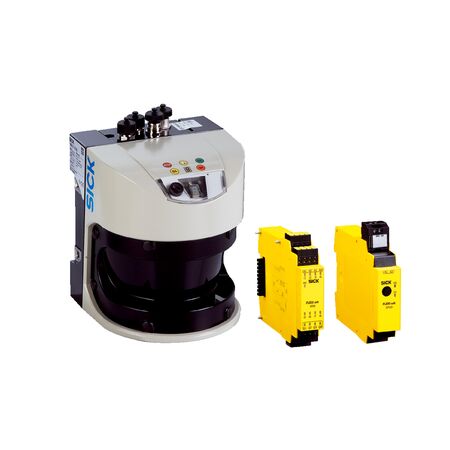

The SICK AOS501 LiDAR Sensor features a single LMS511-10100S02 sensor with a 190° aperture angle and a maximum range of 40 meters at 10% reflectivity. Designed for industrial automation and object detection, this robust sensor is IP65/IP67 rated for environmental protection and offers a fast response time of 330 ms, making it ideal for precise applications in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor model: LMS511-10100S02
- Number of sensors: 1
- Aperture angle: 190°
- Max range at 10% reflectivity: 40 m
- Supply voltage: 24 V DC
- Power consumption: 22 W per LMS511 sensor (+ heating 55 W)
- Enclosure rating: IP65/IP67 for sensor, IP20 for control
- Response time: 330 ms
- Number of safety inputs: 8
- Number of safe outputs: 4
- Configuration interfaces: Ethernet (sensor), USB (control)
- Operating temperature: Sensor -30°C to +50°C, Control -25°C to +55°C
- Storage temperature: -30°C to +70°C (sensor), -25°C to +70°C (control)
- Ambient light immunity: 70,000 lx
- Vibration resistance: IEC 60068-2-6:2007-12
- Shock resistance: IEC 60068-2-27:2008-03
- Dimensions (H x L x W): 185mm x 155mm x 160mm
- Weight: 3.7 kg
Key Features
- Single LMS511-10100S02 sensor with 190° aperture angle
- Maximum range of 40 m at 10% reflectivity
- IP65/IP67 rated sensor housing for robust environmental protection
- Fast response time of 330 ms
- Ethernet and USB configuration interfaces
- Includes Flexi Soft main module and I/O modules
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial LiDAR systems and electrical safety standards.
Applications
- Industrial automation and object detection
- Non-safety LiDAR scanning applications
- Environmental monitoring and mapping
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise object detection reducing waste and improving operational efficiency
- Robust IP65/IP67 housing ensures long product life and reduced replacement waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK AG for details.
Available Now
The SICK AOS501 LiDAR object detection system is available for immediate purchase, ideal for industrial automation and object detection applications.
