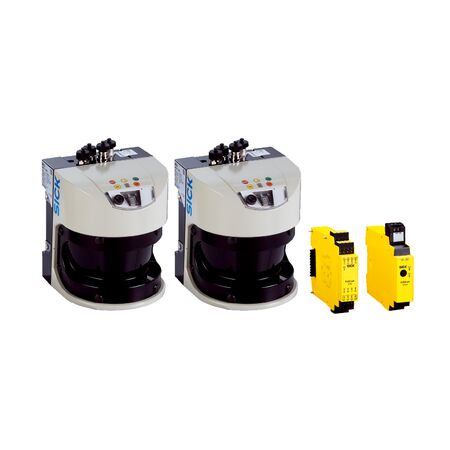

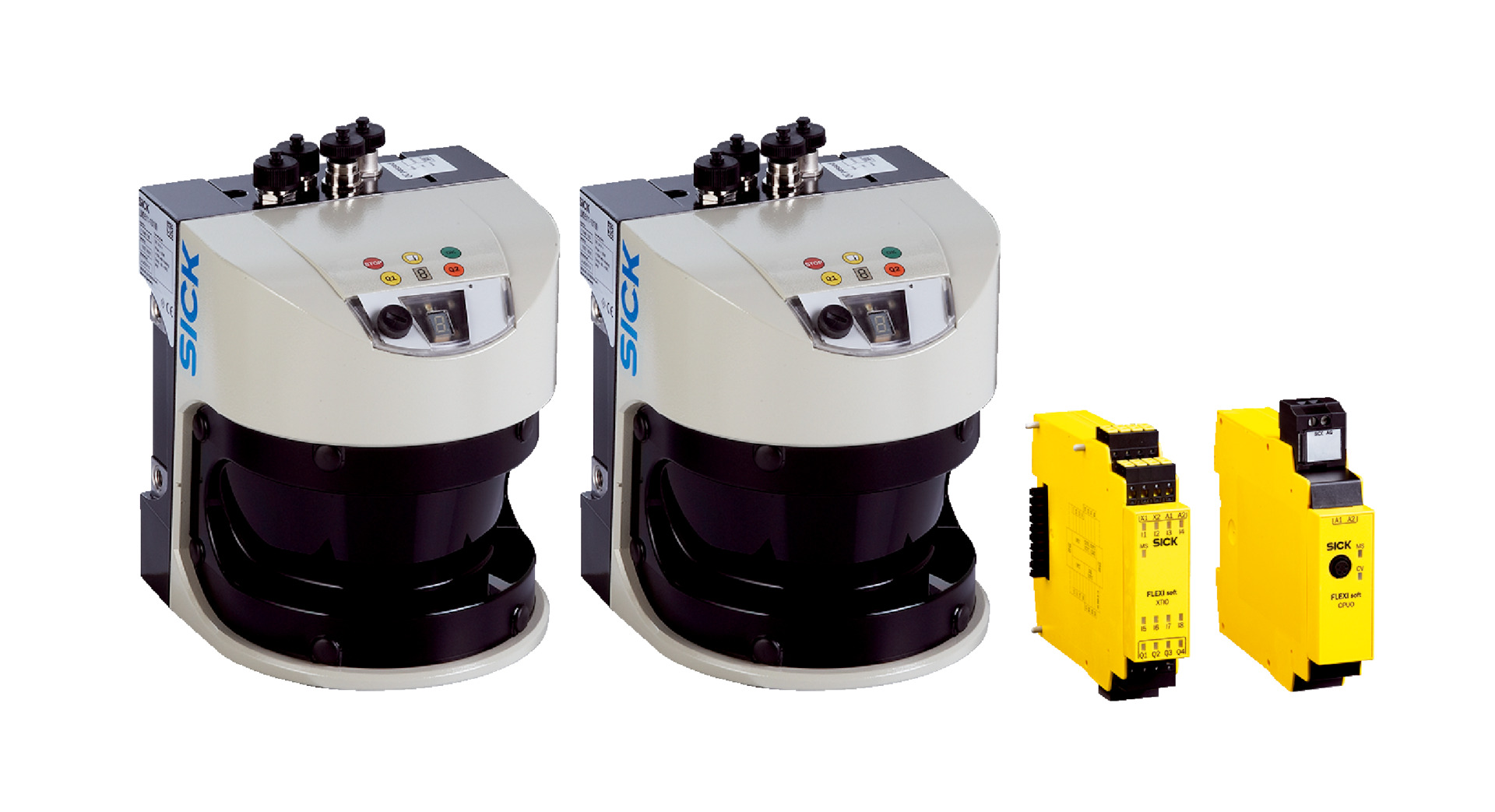

SICK AOS502 LiDAR Scanner | Dual LMS511 Sensors | 190° Aperture Angle | 40m Range | by SICK
The SICK AOS502 LiDAR Scanner features dual LMS511 sensors with a 190° aperture angle, providing a maximum range of 40 meters for precise object detection. Designed for industrial automation, this robust system is IP65/IP67 rated, ensuring reliable performance in challenging environments. With fast response times and high ambient light immunity, it's perfect for applications in environmental scanning and monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor model: LMS511-10100S02
- Number of sensors: 2
- Aperture angle: 190°
- Max range with 10% reflectivity: 40 m
- Supply voltage: 24 V DC
- Power consumption: 22 W per LMS511 sensor (+ heating 55 W per LMS)
- Enclosure rating: IP65/IP67 for sensor, IP20 for control
- Response time: 330 ms
- Number of safety inputs: 8
- Number of safe outputs: 4
- Configuration interfaces: Ethernet (sensor), USB (control)
- Operating temperature: Sensor -30°C to +50°C, Control -25°C to +55°C
- Storage temperature: -30°C to +70°C (sensor), -25°C to +70°C (control)
- Ambient light immunity: 70,000 lx
- Vibration resistance: IEC 60068-2-6:2007-12
- Shock resistance: IEC 60068-2-27:2008-03
- Dimensions (H x L x W): 185mm x 155mm x 160mm
- Weight: 3.7 kg
Key Features
- Dual LMS511-10100S02 sensors with 190° aperture angle
- Maximum range of 40 m with 10% reflectivity
- IP65/IP67 rated sensor housing for robust environmental protection
- Fast response time of 330 ms
- Eight safety inputs and four safe outputs
- Ethernet and USB configuration interfaces
- High ambient light immunity up to 70,000 lx
- Vibration and shock resistant compliant with IEC standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation and object detection
- Non-safety related monitoring and measurement
- Environmental scanning and mapping
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient monitoring and automation reducing energy waste
- Robust design minimizes need for frequent replacements and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK AOS502 LiDAR Object Detection System is available for immediate purchase, ideal for industrial automation and object detection applications.
