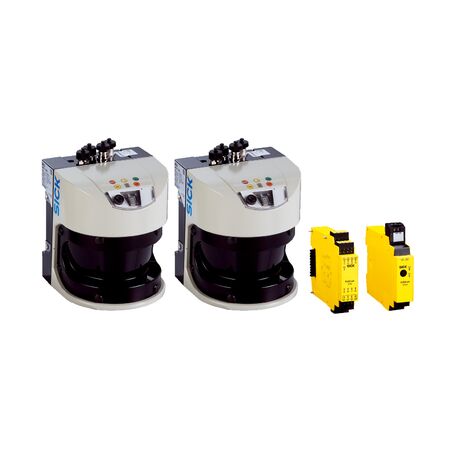

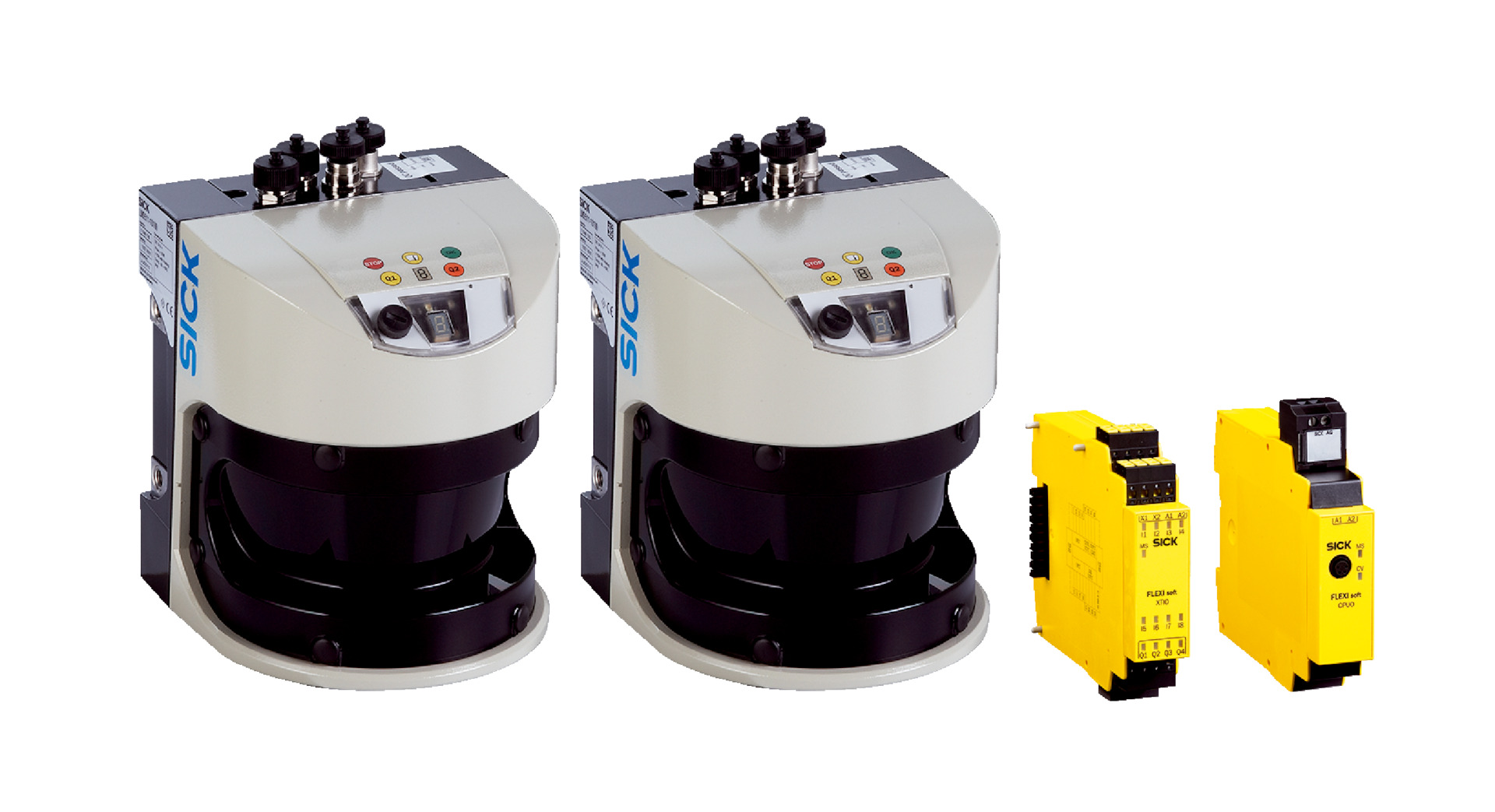

SICK AOS502 TAM LiDAR Scanner | Dual LMS511 Sensors | 190° Aperture Angle | 40m Range | by SICK
The SICK AOS502 TAM LiDAR Scanner features dual LMS511-10100S02 sensors with a 190° aperture angle, providing a maximum range of 40 meters for precise object detection. Designed for industrial automation and environmental monitoring, this robust system is IP65/IP67 rated, ensuring durability in challenging environments. With a fast response time of 180 ms and multiple safety inputs and outputs, it’s perfect for enhancing operational efficiency and safety in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor model: LMS511-10100S02
- Number of sensors: 2
- Aperture angle: 190°
- Max range with 10% reflectivity: 40 m
- Supply voltage: 24 V DC
- Power consumption: 22 W per LMS511 sensor, heating 55 W per LMS
- Enclosure rating: IP65/IP67 for sensor, IP20 for control
- Response time: 180 ms
- Number of safety inputs: 16
- Number of safe outputs: 8
- Configuration interfaces: Ethernet (sensor), USB (control)
- Operating temperature: Sensor -30°C to +50°C, Control -25°C to +55°C
- Storage temperature: -30°C to +70°C (sensor), -25°C to +70°C (control)
- Ambient light immunity: 70,000 lx
- Vibration resistance: IEC 60068-2-6:2007-12
- Shock resistance: IEC 60068-2-27:2008-03
- Dimensions (H x L x W): 185mm x 155mm x 160mm
- Weight: 3.7 kg
Key Features
- Dual LMS511-10100S02 sensors with 190° aperture angle
- Maximum range of 40 m with 10% reflectivity
- IP65/IP67 rated sensor housing for robust environmental protection
- Fast response time of 180 ms
- 16 safety inputs and 8 safe outputs
- Ethernet and USB configuration interfaces
- Includes mounting kit and weather protection covers
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial LiDAR systems and electrical safety standards.
Applications
- Industrial automation and object detection
- Non-safety LiDAR scanning applications
- Environmental monitoring and mapping
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise object detection reducing unnecessary machine operation and energy waste
- Robust IP65/IP67 housing ensures long product life reducing electronic waste
Warranty Information
Warranty details available upon request from SICK.
Available Now
The SICK AOS502 TAM LiDAR Object Detection System is available for immediate purchase, ideal for industrial automation and environmental scanning applications.
