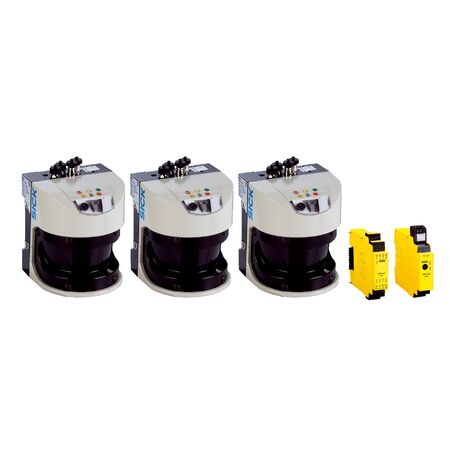

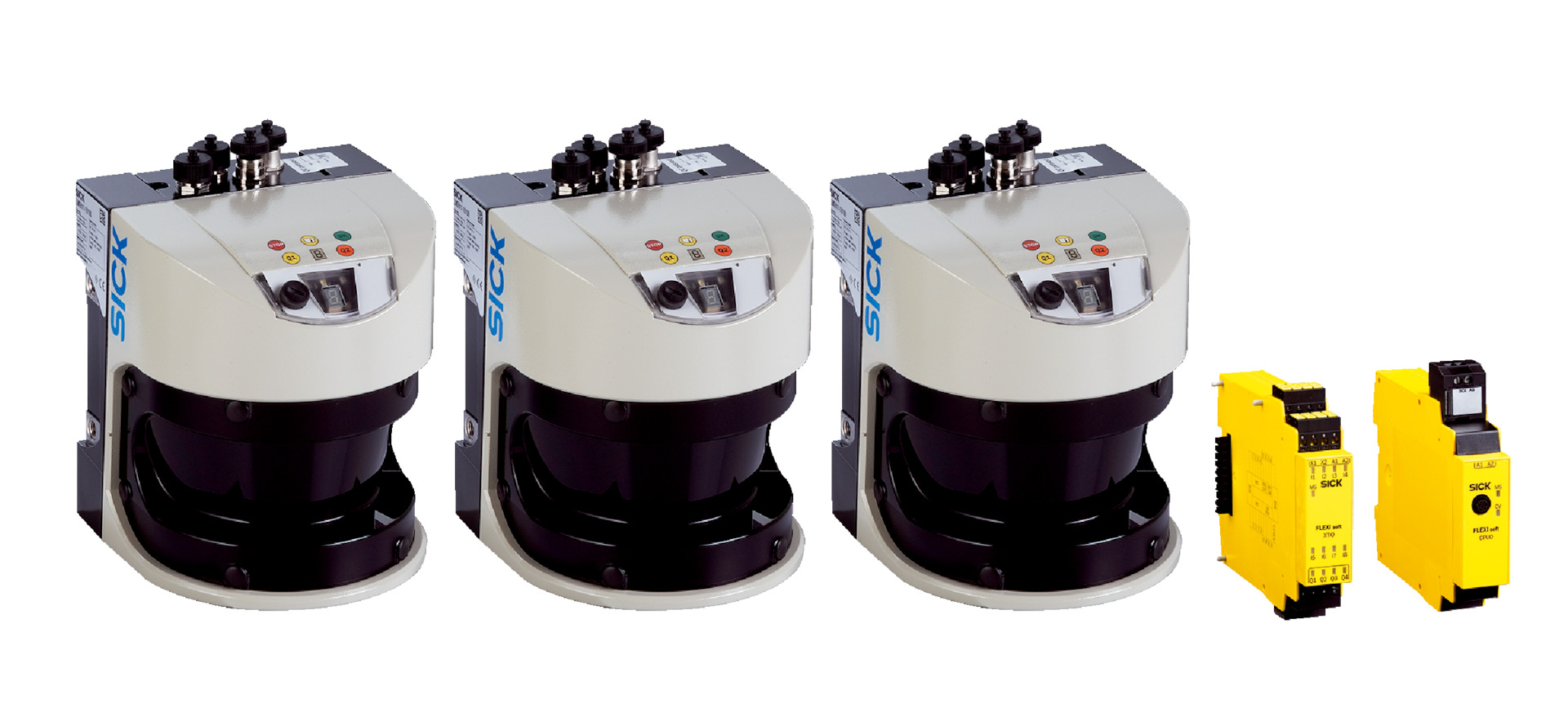

SICK AOS503 LiDAR Scanner | 3 Sensors with 190° Aperture | 40m Range | IP65/IP67 Rated | by SICK
The SICK AOS503 LiDAR Scanner features three LMS511-10100S02 sensors with a 190° aperture angle, providing a maximum range of 40 meters with 10% reflectivity. Designed for industrial automation and object detection, this robust system is IP65/IP67 rated for environmental protection and offers a fast response time of 330 ms, making it ideal for precise monitoring and mapping applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor model: LMS511-10100S02
- Number of sensors: 3
- Aperture angle: 190°
- Max range with 10% reflectivity: 40 m
- Supply voltage: 24 V DC
- Power consumption: 22 W per LMS511 sensor, heating 55 W per LMS
- Enclosure rating: IP65/IP67 for sensor, IP20 for control
- Response time: 330 ms
- Number of safety inputs: 16
- Number of safe outputs: 8
- Configuration interfaces: Ethernet (sensor), USB (control)
- Operating temperature: -30°C to +50°C (sensor), -25°C to +55°C (control)
- Storage temperature: -30°C to +70°C (sensor), -25°C to +70°C (control)
- Ambient light immunity: 70,000 lx
- Vibration resistance: IEC 60068-2-6:2007-12
- Shock resistance: IEC 60068-2-27:2008-03
- Dimensions (H x L x W): 185mm x 155mm x 160mm
- Weight: 3.7 kg
Key Features
- Three LMS511-10100S02 sensors with 190° aperture angle
- Maximum range of 40 m with 10% reflectivity
- IP65/IP67 rated sensor housing for robust environmental protection
- Fast response time of 330 ms
- 16 safety inputs and 8 safe outputs
- Ethernet and USB configuration interfaces
- High ambient light immunity up to 70,000 lx
- Vibration and shock resistant according to IEC standards
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial LiDAR systems and electrical safety standards.
Applications
- Industrial automation and object detection
- Non-safety related monitoring and measurement
- Environmental scanning and mapping
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient monitoring and automation reducing energy waste
- Durable IP65/IP67 housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK AOS503 LiDAR Object Detection System is available for immediate purchase, ideal for industrial automation and object detection applications.
