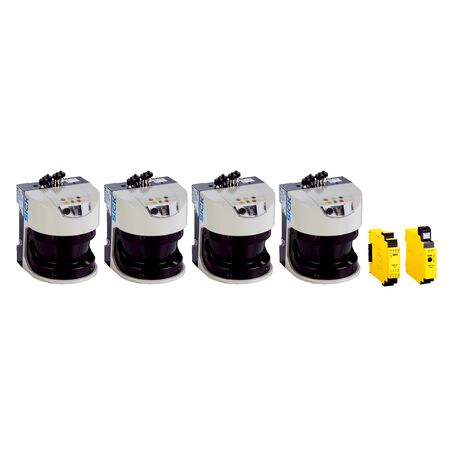

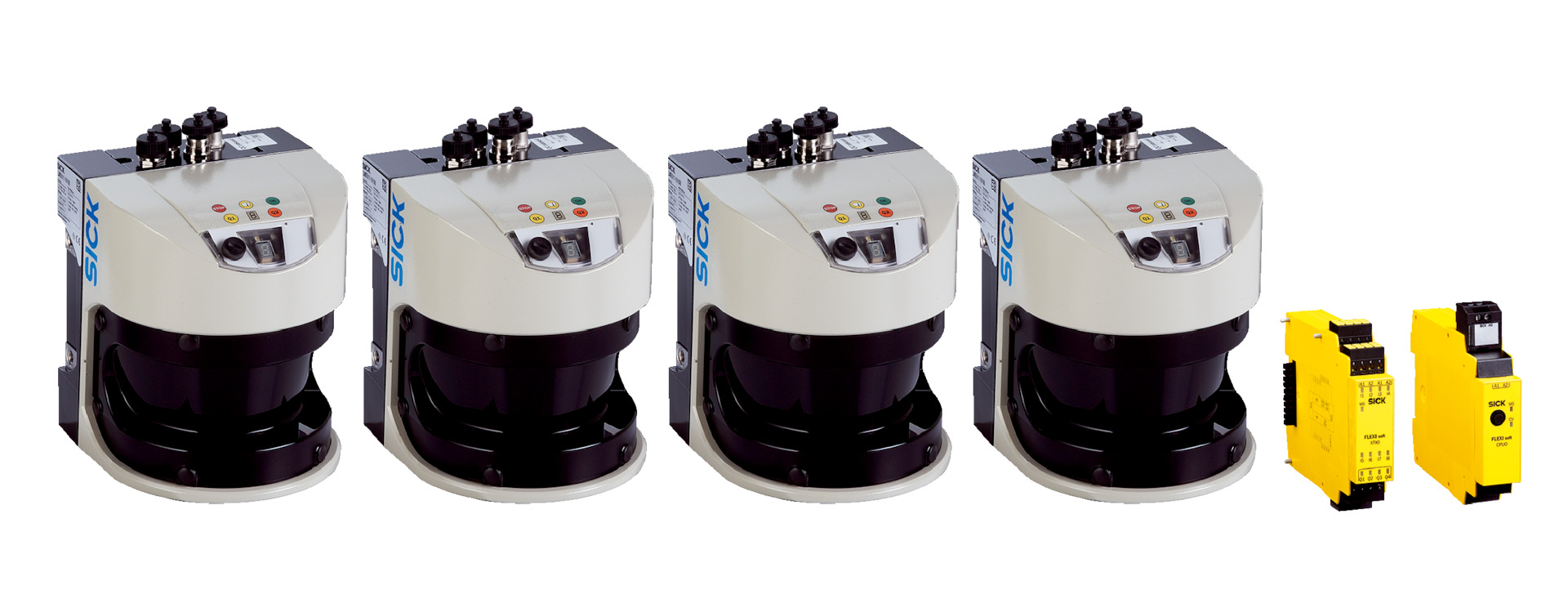

SICK AOS504 LiDAR Sensor | 4 LMS511 Sensors | 190° Aperture Angle | IP65/IP67 Rated | by SICK
The SICK AOS504 LiDAR Sensor features four LMS511 sensors with a 190° aperture angle, providing a maximum range of 40 m for precise object detection in industrial automation. With an IP65/IP67 rating, it ensures robust environmental protection, making it ideal for various applications including environmental monitoring and mapping.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor model: LMS511-10100S02
- Number of sensors: 4
- Aperture angle: 190°
- Max range with 10% reflectivity: 40 m
- Supply voltage: 24 V DC
- Power consumption: 22 W per LMS511 sensor, heating 55 W per LMS
- Enclosure rating: IP65/IP67 for sensor, IP20 for control
- Response time: 330 ms
- Number of safety inputs: 16
- Number of safe outputs: 8
- Configuration interfaces: Ethernet (sensor), USB (control)
- Operating temperature: -30°C to +50°C (sensor), -25°C to +55°C (control)
- Storage temperature: -30°C to +70°C (sensor), -25°C to +70°C (control)
- Ambient light immunity: 70,000 lx
- Vibration resistance: IEC 60068-2-6:2007-12
- Shock resistance: IEC 60068-2-27:2008-03
- Dimensions (H x L x W): 185mm x 155mm x 160mm
- Weight: 3.7 kg
Key Features
- Four LMS511-10100S02 sensors with 190° aperture angle
- Maximum range of 40 m with 10% reflectivity
- IP65/IP67 rated sensor housing for robust environmental protection
- Response time of 330 ms
- 16 safety inputs and 8 safe outputs
- Ethernet and USB configuration interfaces
- Alarm outputs for warning field intrusion, stop field intrusion, system test error, and contamination warning
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and electrical safety standards.
Applications
- Object detection in industrial automation
- Non-safety LiDAR sensing applications
- Environmental monitoring and mapping
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient automation reducing energy consumption
- Robust design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK AOS504 LiDAR Object Detection System is available for immediate purchase, ideal for industrial automation and object detection applications.
