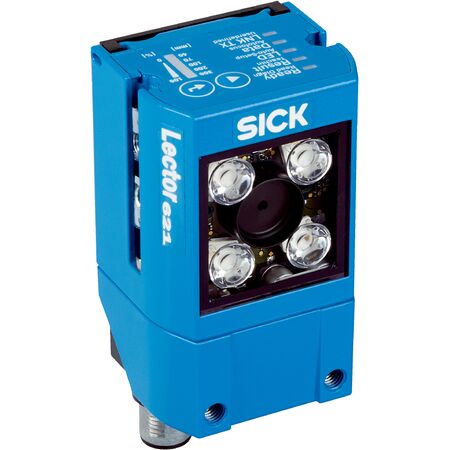

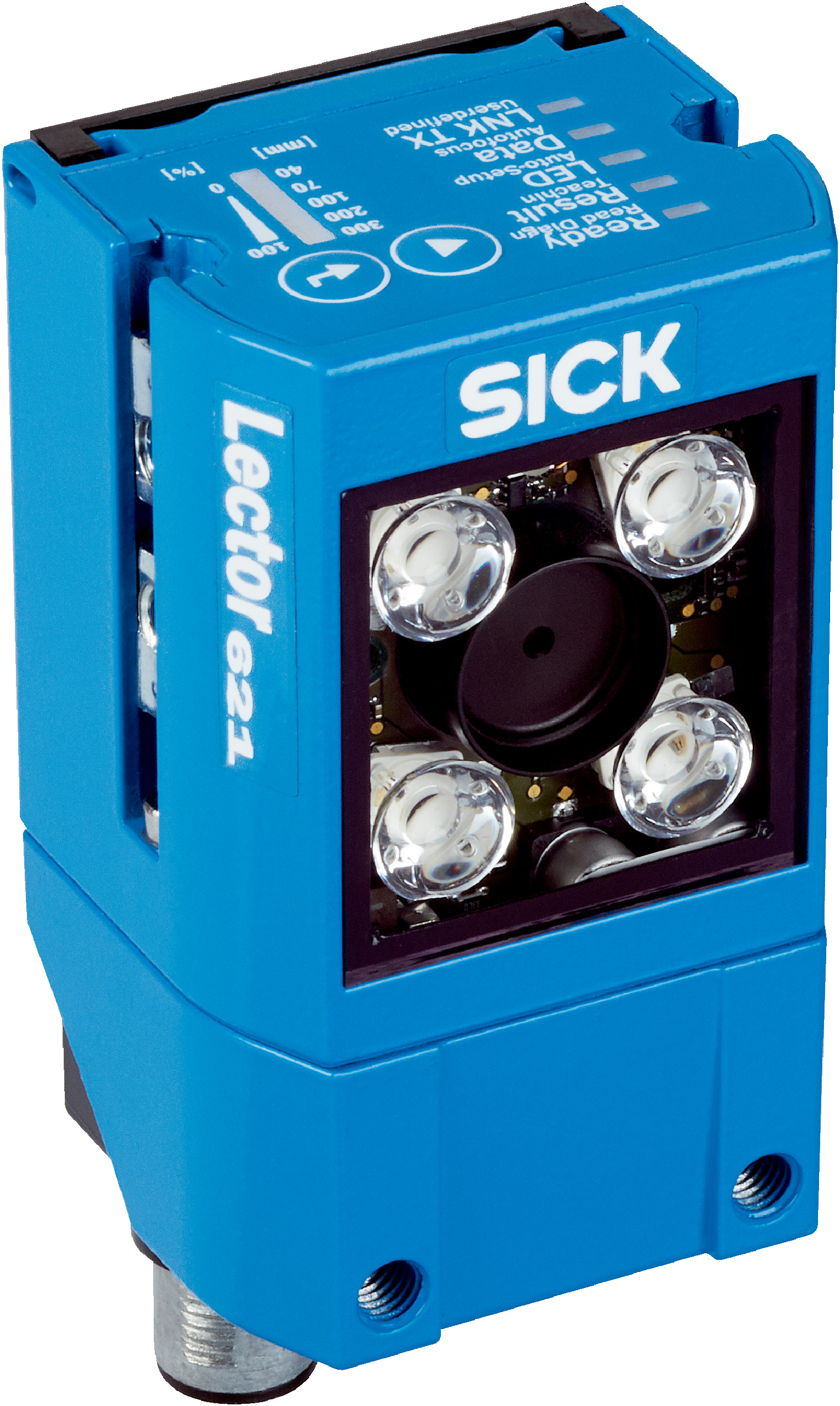

SICK Barcode Reader V2D621R | 1.3 Mpixel CMOS Sensor | IP65 Rated | Integrated Red & Blue LEDs | by SICK
The SICK Barcode Reader V2D621R is designed for industrial automation, featuring a 1.3 Mpixel CMOS sensor and integrated red and blue LED illumination. With a robust IP65-rated aluminum housing, it excels in logistics and manufacturing environments, ensuring reliable 1D and 2D code reading. Its multiple interface options and laser alignment aid enhance usability, making it a perfect choice for quality assurance and traceability systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 1,024 px (1.3 Mpixel)
- Illumination: Integrated red (617 nm ±15 nm) and blue (470 nm ±15 nm) LEDs
- Laser alignment aid: Red laser 630 nm to 680 nm, Class 1 laser
- Scanning frequency: 50 Hz
- Code resolution: ≥ 0.05 mm
- Working range: 70 mm to 1,500 mm
- Connection types: 1 x M12 17-pin male, 1 x M12 4-pin Ethernet female
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 4 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 62368
- MTBF: 75,000 hours
- Readable code types: 1D, stacked, 2D codes including GS1-128, QR code, Data Matrix ECC200, PDF417
- Interfaces: Ethernet TCP/IP, PROFINET, EtherNet/IP™, EtherCAT®, Serial RS-232/422, CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90% non-condensing
- EMC: EN 61000-6-2, EN 61000-6-4
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- Complete device with teach auto focus
- CMOS monochrome sensor with 1,280 px x 1,024 px resolution
- Integrated red and blue LED illumination
- Laser alignment aid with class 1 laser safety
- Supports reading of 1D, stacked, and 2D codes including GS1-128, QR code, Data Matrix ECC200
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range 0 °C to +50 °C
- 16 LED optical indicators and acoustic beeper for feedback
- Supports image and data storage via microSD and FTP
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption at approximately 4 W reduces energy usage
- Durable aluminum housing extends product lifespan, reducing waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D621R-2MSFBB5 is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
