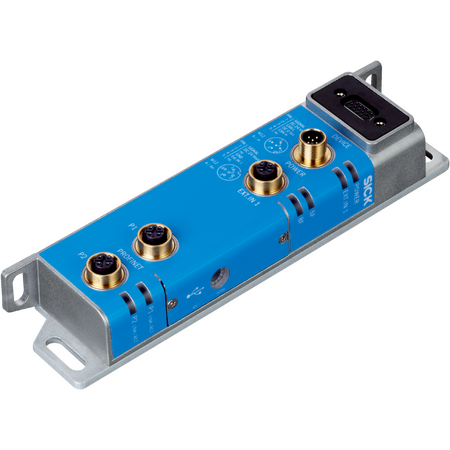

SICK CDF600-2200 Communication Module | Supports Lector Series RFID | IP65 Enclosure | by SICK
The SICK CDF600-2200 Communication Module is designed for seamless integration with Lector series RFID read/write devices and mobile handheld scanners. With an IP65-rated aluminum housing and low power consumption under 5 W, this module is perfect for industrial automation applications requiring robust communication interfaces like PROFINET and RS-232. Ideal for professionals seeking reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: SICK CDF600-2200 Communication Module, NetX51 Industrial Interface, SICK RFID Interface Module
Technical Specifications
- Supported products: Lector series CLV61x - CLV65x CLV69x RFID read/write devices, mobile handheld scanners
- Cloning module support (CMC): Integrated
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: < 5 W (no sensor or digital input connected)
- Housing: Aluminum (unpainted)
- Enclosure rating: IP65
- Protection class: III
- Weight: 361 g
- Dimensions (L x W x H): 207 mm x 49.5 mm x 40.7 mm
- Scanner connection: RS-232
- Interfaces: PROFINET dual port, RS-232, CAN
- Digital inputs: 1
- Digital outputs: 0
- Optical indicators: 6 LEDs
- Configuration software: SOPAS ET
- Electromagnetic compatibility: EN 61000-6-3/A1:2011-03 / EN 61000-6-2:2005-08
- Vibration resistance: EN 60068-2-6:2008-02
- Shock resistance: EN 60068-2-27:2009-05
- Ambient operating temperature: -35 °C to +50 °C
- Storage temperature: -35 °C to +70 °C
- Permissible relative humidity: < 90%, non-condensing
- Dimensions (H x L x W): 40.7mm x 207mm x 49.5mm
- Weight: 0.361 kg
Key Features
- Supports Lector series CLV61x - CLV65x CLV69x RFID read/write devices and mobile handheld scanners
- Integrated cloning module support (CMC)
- Supply voltage range from 10 V DC to 30 V DC
- Low power consumption under 5 W when no sensor or digital input connected
- Robust aluminum unpainted housing with IP65 enclosure rating
- Protection class III
- Multiple communication interfaces including PROFINET dual port, RS-232, CAN
- One digital input and six LED optical indicators
- Configuration via SOPAS ET software
- Wide ambient operating temperature range from -35 °C to +50 °C
- Certified with EU, UK, ACMA declarations of conformity, China RoHS, cULus, and Profinet certificates
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial communication systems and electrical safety standards.
Applications
- Integration with Lector series CLV61x - CLV65x CLV69x RFID read/write devices
- Mobile handheld scanner communication
- Industrial automation requiring PROFINET and RS-232 interfaces
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial environments
- Durable IP65 rated housing extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CDF600-2200 - V2.x, NetX51 communication module is available for immediate purchase, ideal for industrial automation and RFID system integration.
