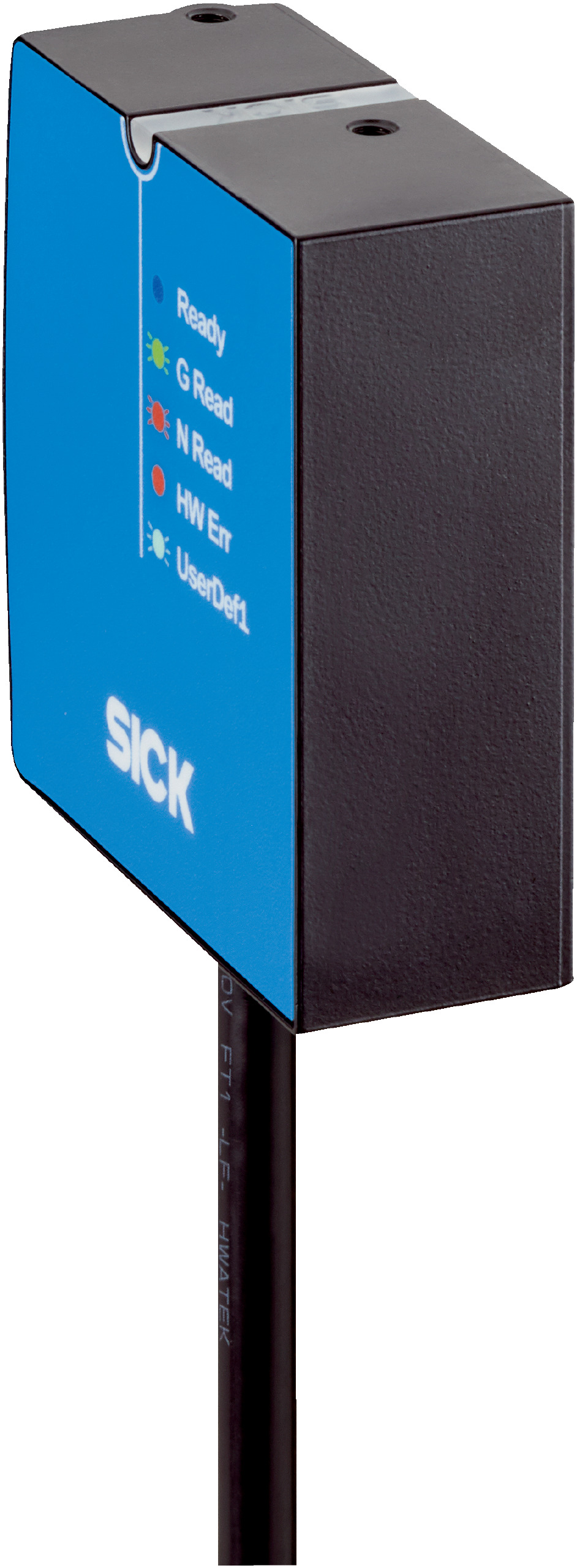

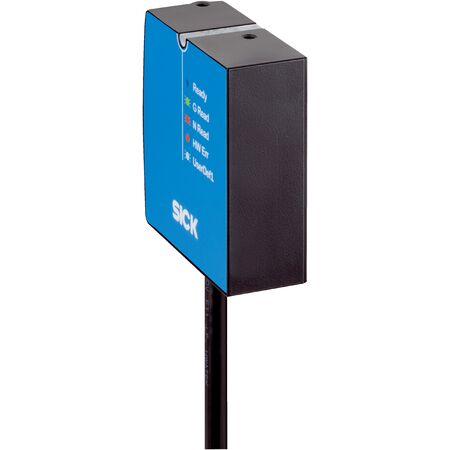

SICK CLV601-1U110 Barcode Scanner | 2048 Pixel CMOS Sensor | 750 Hz Scanning Frequency | IP40 Rated | by SICK
The SICK CLV601-1U110 Barcode Scanner features a high-resolution 2048 pixel CMOS line sensor and a rapid scanning frequency of 750 Hz, making it perfect for industrial automation and logistics applications. With its fixed optical focus at 31 mm and IP40 rated zinc diecast housing, this scanner ensures reliable performance in demanding environments, enhancing efficiency in barcode reading tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 1 x USB A male connector (1.5 m)
- Sensor type: Line scanner with CMOS line sensor
- Sensor resolution: 2048 pixels
- Optical focus: Fixed at 31 mm
- LED class: Risk group 0 (IEC 62471:2006-07, EN 62471:2008-09)
- Light source: Visible red LED at 626 nm
- Aperture angle: ≤ 71°
- Reading distance: 15 mm to 70 mm
- Scanning frequency: 750 Hz
- Reading angle tolerances: Tilt α ±5° to ±25°, Pitch β ±6° to ±15°, Skew γ ±20° to ±30° depending on code resolution
- Code resolution: 0.125 mm to 0.5 mm
- Supply voltage: 5 V DC ±10%
- Power consumption: Typically 1 W
- Housing material: Zinc diecast
- Window material: Plastic
- Enclosure rating: IP40
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: 170 g including cable
- MTBF: 100,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1
- Number of codes per reading interval: 1 to 15 (auto-discriminating)
- Number of characters per reading interval: 450
- Number of characters per code: up to 30
- Digital inputs: 0
- Digital outputs: Virtual via SOPAS ET software
- Indicators: 1 RGB LED, beeper/buzzer
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 5,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 20mm x 55mm x 52mm
- Weight: 0.17 kg
Key Features
- Fixed optical focus at 31 mm
- CMOS line sensor with 2048 pixel resolution
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, and more
- High scanning frequency of 750 Hz
- LED light source with visible red light at 626 nm
- USB 2.0 interface with keyboard wedge and COM-Port emulation
- IP40 rated zinc diecast housing
- Multifunctional RGB LED and acoustic beeper indicators
- Wide reading angle and tilt, pitch, skew tolerances
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper USB connection and device configuration using SOPAS ET software.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and inspection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption at approximately 1 W reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK CLV601-1U110 Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial and logistics barcode scanning applications.
