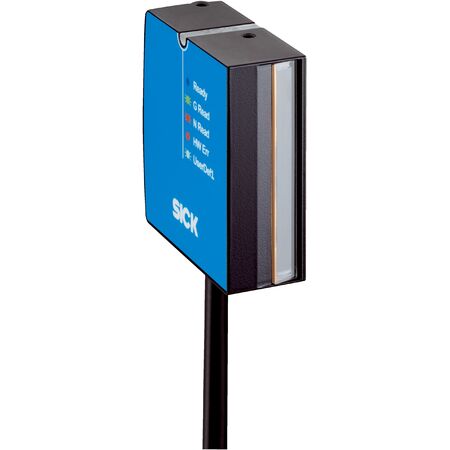

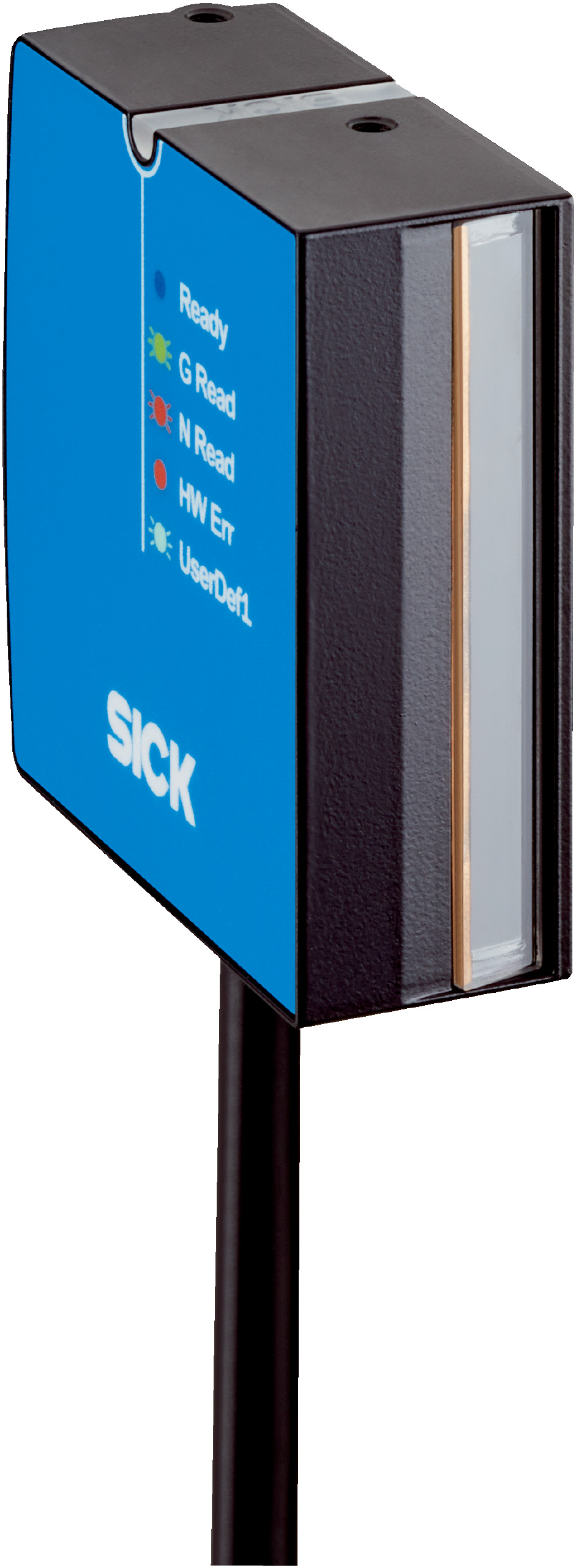

SICK CLV601 Line Scanner Barcode Reader | 2048 Pixel Resolution | USB Interface | IP40 Rated | by SICK
The SICK CLV601 Line Scanner Barcode Reader features a high-resolution 2048 pixel CMOS sensor and a USB interface, making it perfect for industrial automation and logistics applications. With a reading distance of 15 mm to 70 mm and a scanning frequency of 750 Hz, it efficiently reads all current 1D barcode types. Built with a robust zinc diecast housing and an IP40 rating, this scanner is designed for durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 1 x USB A male connector (1.5 m)
- Sensor type: Line scanner with CMOS line sensor
- Sensor resolution: 2048 pixels
- LED class: Risk group 0 (IEC 62471:2006-07, EN 62471:2008-09)
- Light source: Visible red LED at 626 nm
- Aperture angle: ≤ 71°
- Reading distance: 15 mm to 70 mm
- Scanning frequency: 750 Hz
- Reading angle tilt α: ±5° to ±25° depending on code resolution
- Pitch β: ±6° to ±15° depending on code resolution
- Skew γ: ±20° to ±30° depending on code resolution
- Code resolution: 0.125 mm to 0.5 mm
- Supply voltage: 5 V DC ±10%
- Power consumption: Typically 1 W
- Housing material: Zinc diecast
- Window material: Plastic
- Enclosure rating: IP40
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: 170 g including cable
- MTBF: 100,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1
- Number of codes per reading interval: 1 to 15 (auto-discriminating)
- Number of characters per reading interval: 450
- Number of characters per code: up to 30
- Digital inputs: 0
- Digital outputs: Virtual via SOPAS ET software
- Indicators: 1 RGB LED, beeper/buzzer
- Configuration software: SOPAS ET
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 5000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 20mm x 55mm x 52mm
- Weight: 0.17 kg
Key Features
- Fixed optical focus at 30 mm
- CMOS line sensor with 2048 pixel resolution
- Reading distance from 15 mm to 70 mm
- High scanning frequency of 750 Hz
- Reads all current 1D barcode types including Code 39, Code 128, UPC, EAN
- USB 2.0 interface with keyboard wedge and COM-Port emulation
- RGB LED and acoustic indicators for status feedback
- Robust zinc diecast housing with IP40 rating
- Operating temperature range 0°C to +50°C
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper connection and configuration using SOPAS ET software.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption at approximately 1 W reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV601-0U110 Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial and logistics barcode scanning applications.
