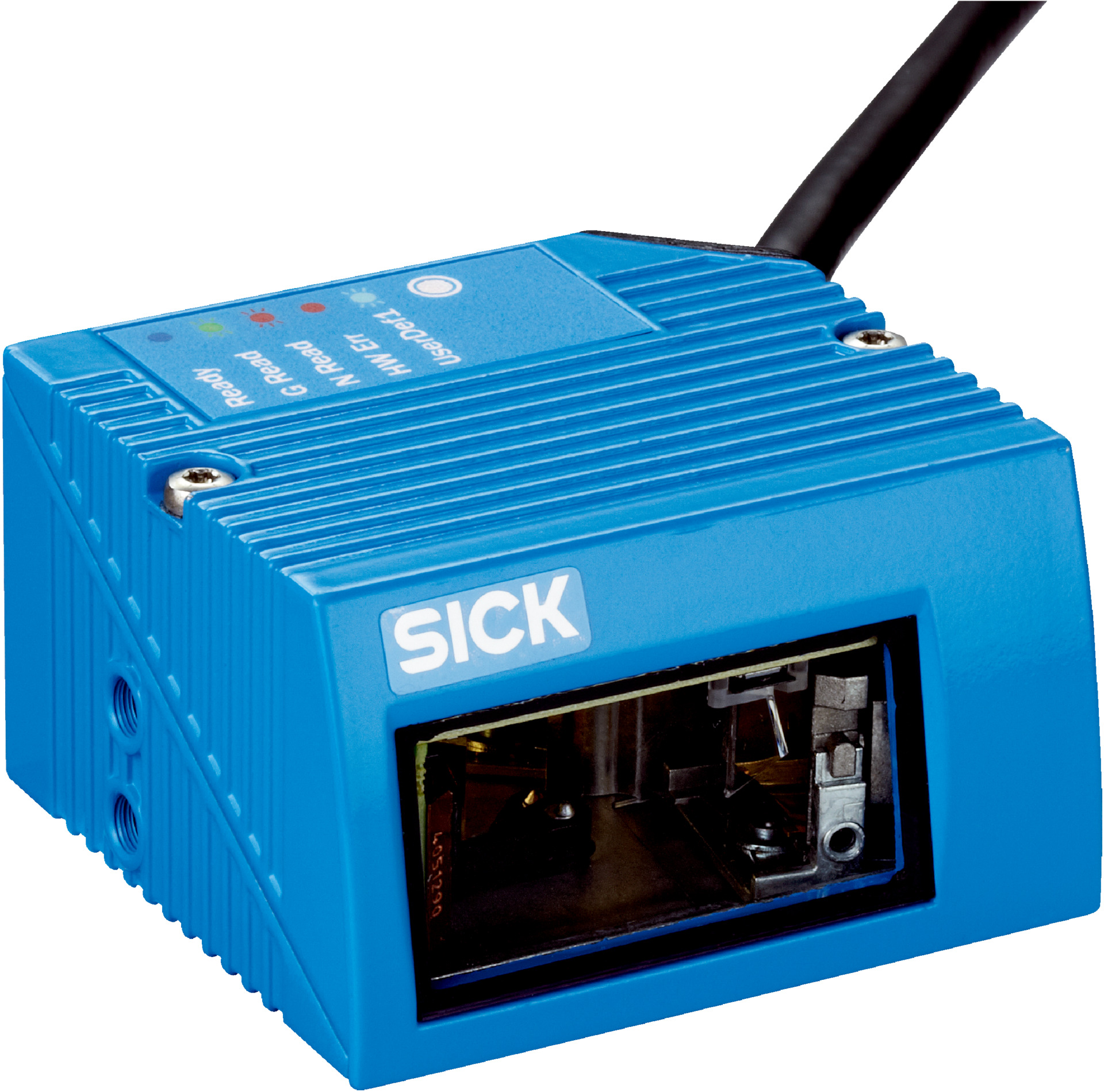

SICK CLV610 Mid Range Line Scanner | IP65 Rated | 400-1000 Hz Scanning Frequency | by SICK
The SICK CLV610 Mid Range Line Scanner excels in industrial barcode reading, featuring a high scanning frequency of 400 to 1000 Hz and an IP65 rating for durability. With its aluminum die cast housing and ability to read various 1D barcode formats, it's perfect for logistics, manufacturing, and quality control applications, ensuring efficient and reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 2.8 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: 265 g including cable
- Reading distance: 60 mm to 365 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.2 mm to 1 mm
- Readable code structures: 1D codes including Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5, Pharmacode
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 10 (Standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 1500 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: RS-232 serial, CAN bus
- Electromagnetic compatibility: EN 61000-6-4 and EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.265 kg
Key Features
- Mid Range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, and more
- Laser class 2 with visible red light spot at 655 nm
- High scanning frequency from 400 Hz to 1000 Hz
- Durable aluminum die cast housing with IP65 rating
- Multiple interface options including RS-232 and CAN
- RGB LED and acoustic indicators for status feedback
- Supports up to 50 codes per reading interval
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption of 2.8 W
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV610-C0000 Mid Range Line Scanner is available for immediate purchase, ideal for industrial barcode scanning applications.
