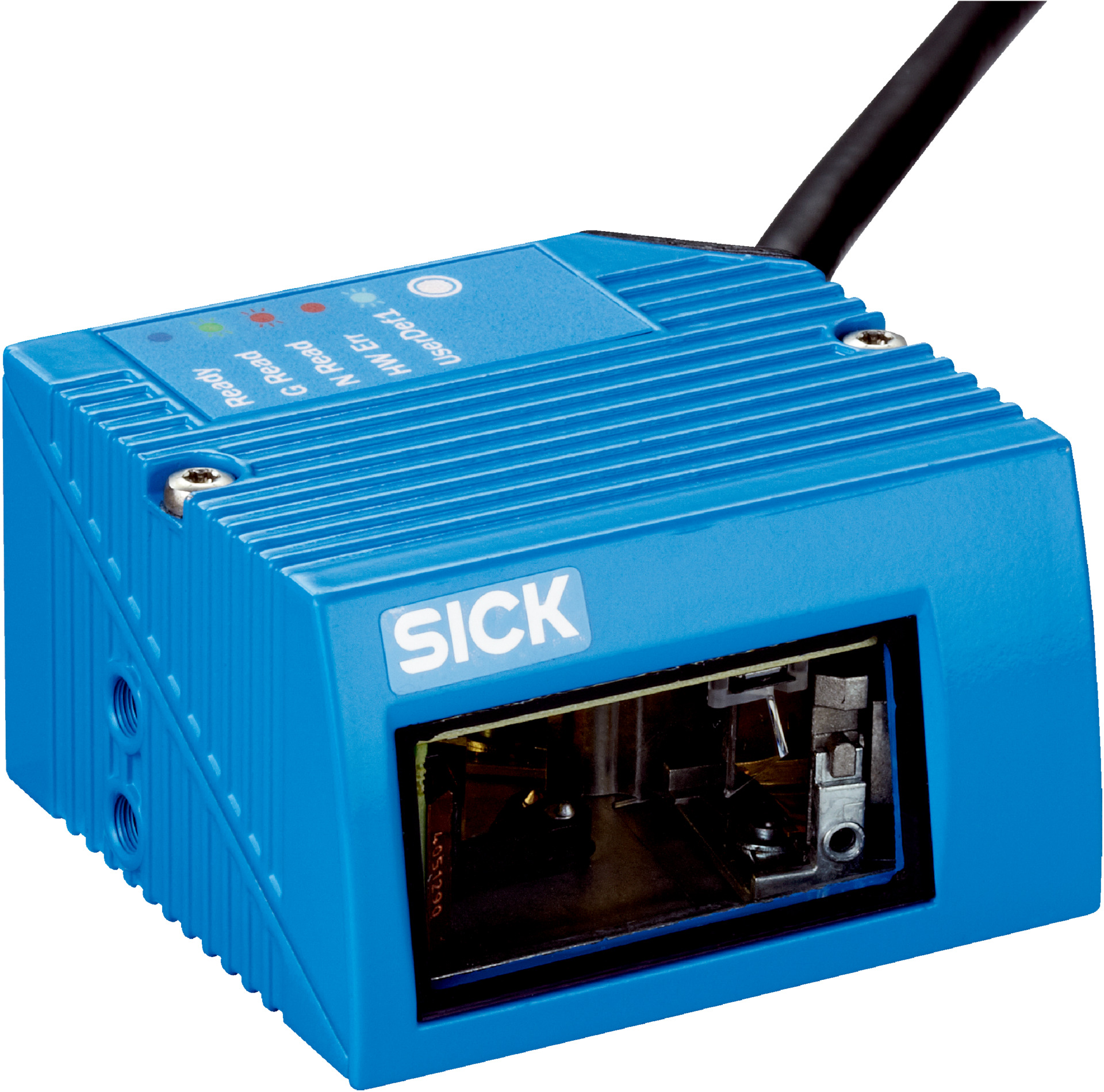

SICK CLV610 Mid Range Raster Barcode Scanner | IP65 Rated | 400-1000 Hz Scanning Frequency | by SICK
The SICK CLV610 Mid Range Raster Barcode Scanner is designed for industrial automation, offering high-speed scanning of 1D barcodes including Code 39 and UPC. With a durable aluminum housing and IP65 rating, it operates effectively in various environments, making it ideal for logistics, manufacturing, and quality assurance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.26 m)
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser spot, 655 nm
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 365 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.2 mm to 1 mm
- Raster height and lines at distance: 15 mm, 8 lines at 200 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 2.8 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5, Pharmacode
- Number of codes per scan: 1 to 10 (Standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 1,500 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: RS-232 serial, CAN sensor network CSN
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 1 RGB LED, beeper/buzzer
- Configuration software: SOPAS ET
- Ambient operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +70°C
- Permissible relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.265 kg
Key Features
- Mid Range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, and more
- Laser class 2 with visible red light spot at 655 nm
- High scanning frequency from 400 Hz to 1000 Hz
- Durable aluminum die cast housing with IP65 rating
- Multiple interface options including RS-232 and CAN
- RGB LED and acoustic indicators for status feedback
- Wide operating temperature range from 0°C to +40°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and product tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 2.8 W reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV610-C1900S01 Mid Range Raster Scanner is available for immediate purchase, ideal for industrial barcode scanning applications.
