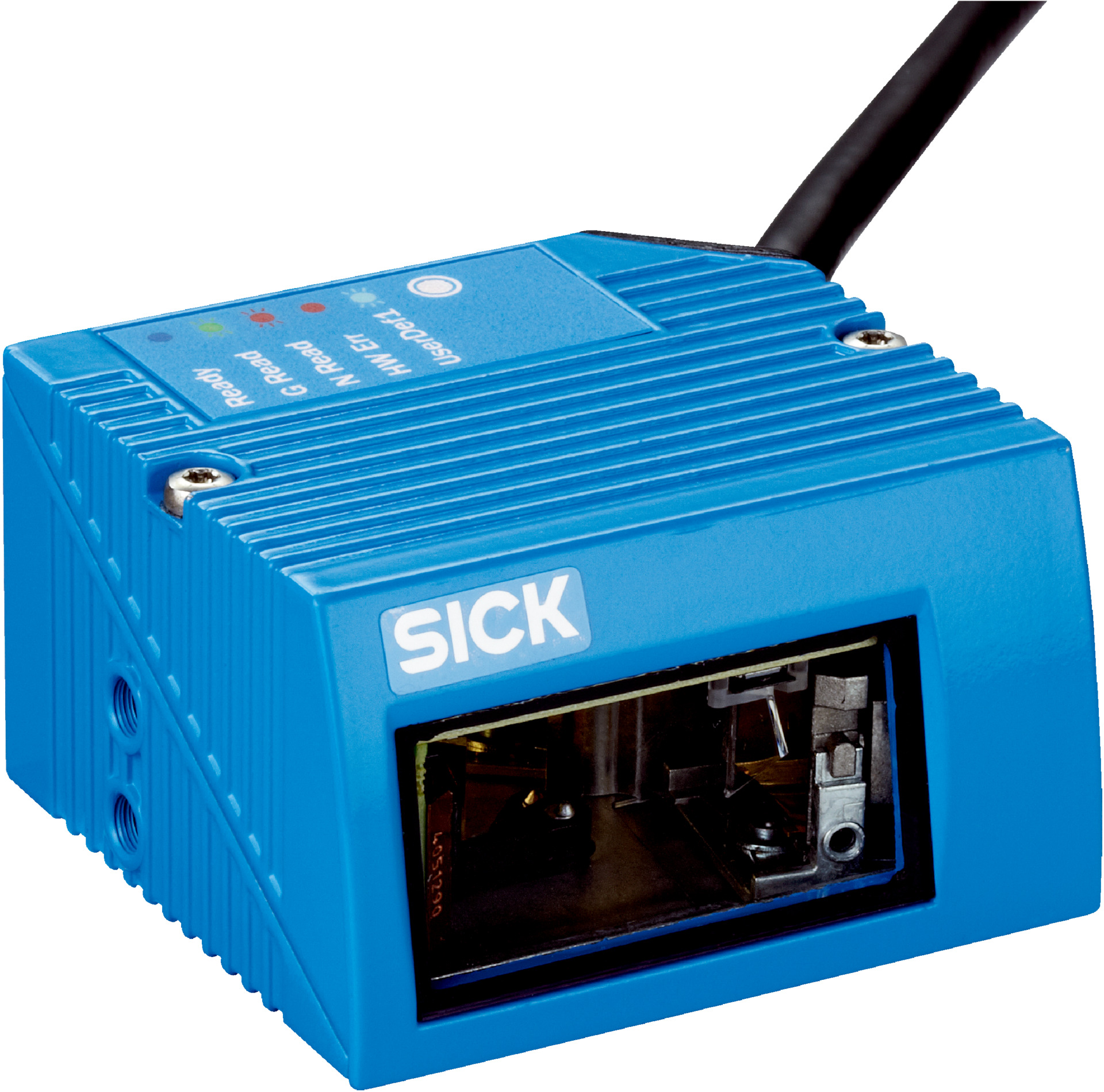

SICK CLV612 Short Range Line Scanner | IP65 Rated | 400-1000 Hz Scanning Frequency | by SICK
The SICK CLV612 Short Range Line Scanner is designed for efficient barcode reading in industrial automation, logistics, and manufacturing. With a reading distance of 43 mm to 93 mm and a high scanning frequency of 400 Hz to 1000 Hz, it supports all current 1D barcode types. Its robust aluminum die cast housing and IP65 rating ensure durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: 1 x 15-pin D-Sub HD male connector (0.9 m cable)
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 2.8 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 43 mm to 93 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.1 mm to 0.2 mm
- Readable code structures: 1D codes including Code 39, Code 128, UPC, EAN
- Data transmission rates: Serial RS-232 up to 115.2 kBaud, CAN up to 1 Mbit/s
- Digital inputs: 4
- Digital outputs: 4
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.265 kg
Key Features
- Short range line scanner with fixed optical focus
- Visible red laser light source at 655 nm
- Reading distance from 43 mm to 93 mm
- High scanning frequency between 400 Hz and 1000 Hz
- Supports all current 1D barcode types including Code 39, Code 128, UPC, EAN
- Robust aluminum die cast housing with IP65 rating
- Multiple digital inputs and outputs for flexible integration
- Equipped with RGB LED and acoustic indicators
- Complies with laser safety class 2 standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehousing for code scanning
- Manufacturing for quality control and tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 2.8 W reduces energy usage
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK CLV612-C0000 Short Range Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
