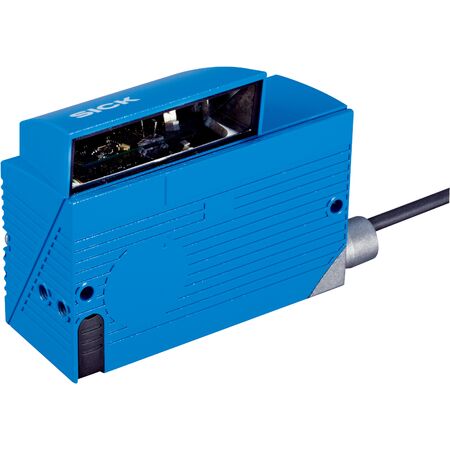

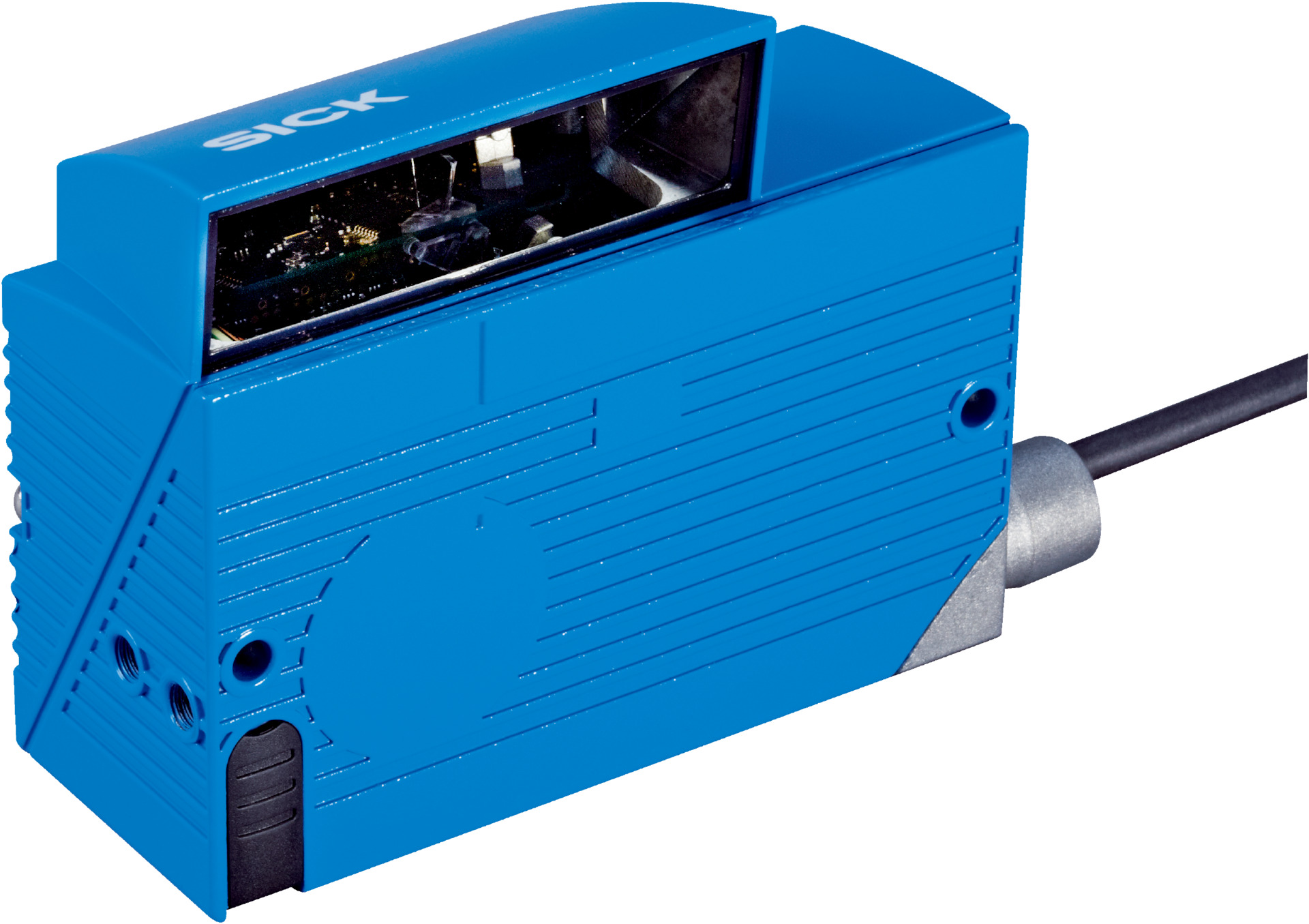

SICK CLV615-D2410 Long Range Line Scanner | 105° Reading Field | IP65 Rated | by SICK
The SICK CLV615-D2410 Long Range Line Scanner is designed for efficient industrial barcode reading, featuring a 105° reading field and high scanning frequency from 400 Hz to 1000 Hz. With its durable aluminum die cast housing and IP65 rating, this scanner is perfect for logistics, manufacturing, and quality assurance applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Long Range
- Connection type: Cable
- Reading field: Side (105°)
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Light spot, laser, visible red, 655 nm
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 25 mm to 330 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.35 mm to 0.5 mm
- Connection interfaces: POWER (4-pin M12), PROFINET P1 & P2 (4-pin M12), Micro USB type B
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: 310.5 g
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5, Pharmacode
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 10 (Standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 1500
- Number of multiple readings: 1 to 99
- Data transmission rate: 100 MBit/s full-duplex Ethernet
- Optical indicators: 5 LEDs
- Configuration software: SOPAS ET
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Ambient light immunity: 2000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.31 kg
Key Features
- Long range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, and more
- Reading field side angle of 105° with aperture angle ≤ 50°
- High scanning frequency from 400 Hz to 1000 Hz
- Durable aluminum die cast housing with IP65 rating
- Multiple interfaces including PROFINET and USB
- Laser class 2 with visible red light source at 655 nm
- Supports up to 50 codes per reading interval and 1500 characters
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and product tracking
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements
- Energy-efficient operation with low power consumption (5 W)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV615-D2410 Long Range Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
