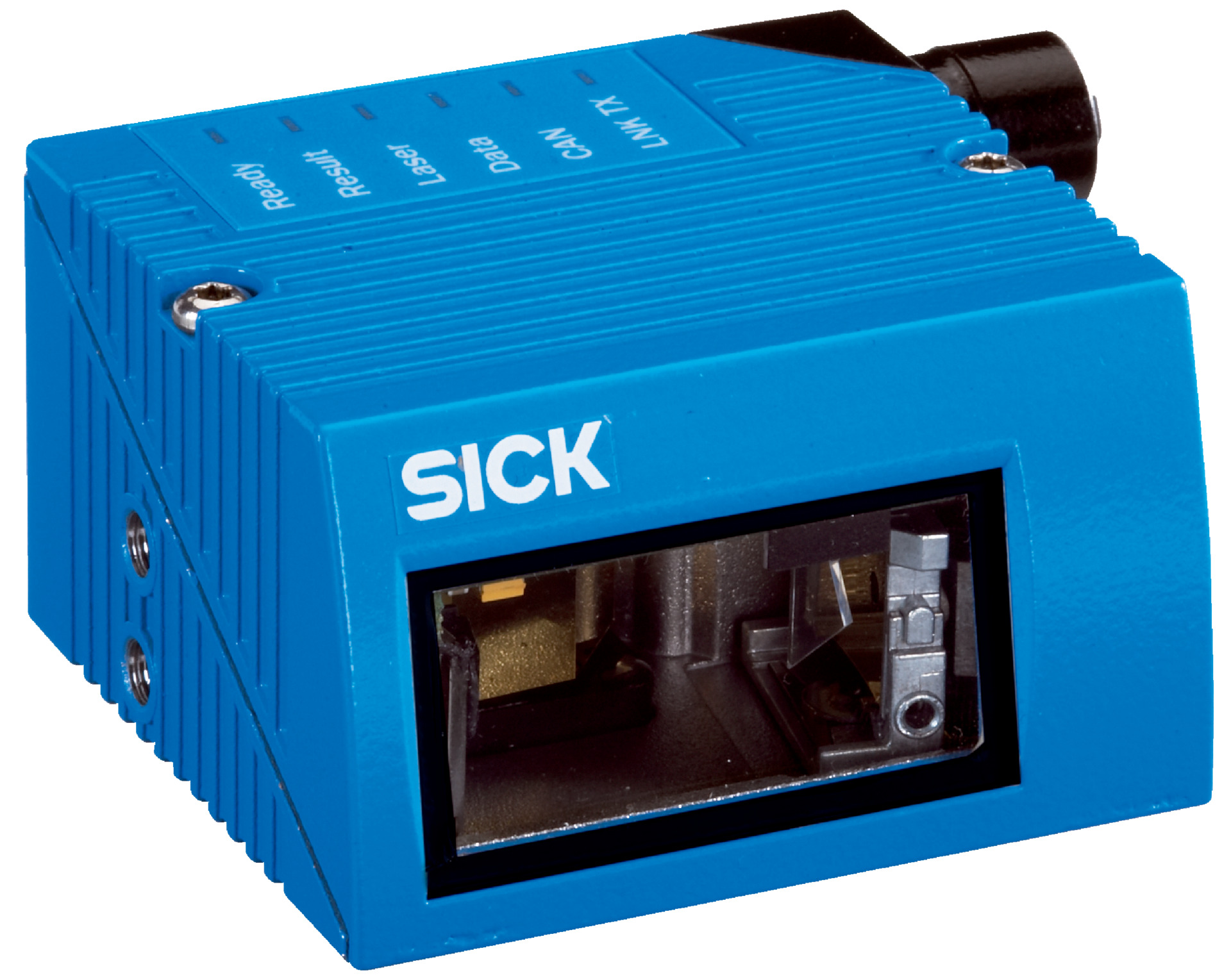

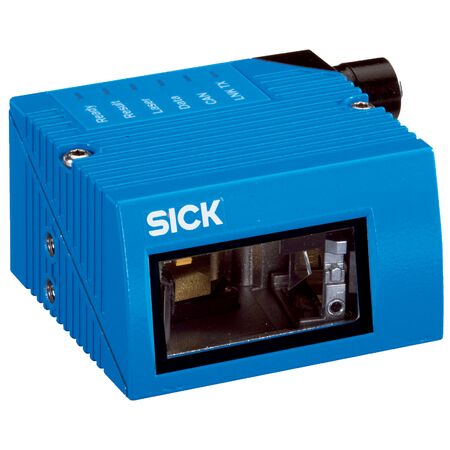

SICK CLV620-0121 Mid Range Ethernet Barcode Scanner | Fixed Focus | IP65 Rated | by SICK
The SICK CLV620-0121 Mid Range Ethernet Barcode Scanner is designed for industrial automation, featuring a fixed optical focus and a reading distance of 60 mm to 365 mm. With a high scanning frequency of 400 Hz to 1,200 Hz, it supports all current 1D barcode types, making it ideal for logistics, manufacturing, and quality assurance applications. Its robust aluminum housing and IP65 rating ensure durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV620-0121 Mid Range Ethernet Barcode Scanner | Fixed Focus | IP65 Rated | by SICK
Brand: SICK
SKU: 1044573
Alternatively Known As: SICK CLV620 Barcode Scanner, SICK Mid Range Line Scanner, SICK Ethernet Barcode Reader, Industrial Barcode Scanner
Technical Specifications
- Version: Mid Range
- Connection type: Ethernet
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: Class 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 365 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Connection: 2 x M12 cylindrical connectors (12-pin male, 4-pin female)
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: 205 g (without cable)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported bar code types: Code 39, Code 128, Code 93, Codabar, GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: up to 1,500
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.205 kg
Key Features
- Mid Range version with Ethernet connection
- Fixed optical focus with visible red laser light spot (655 nm)
- Reading distance from 60 mm to 365 mm
- High scanning frequency between 400 Hz and 1,200 Hz
- Supports all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Light blue housing color (RAL 5012)
- Low power consumption of 4.5 W
- High reliability with MTBF of 100,000 hours
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption (4.5 W)
- Durable housing reduces need for frequent replacements
- Complies with laser safety standards to minimize environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV620-0121 Mid Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning applications requiring reliable and versatile connectivity.
