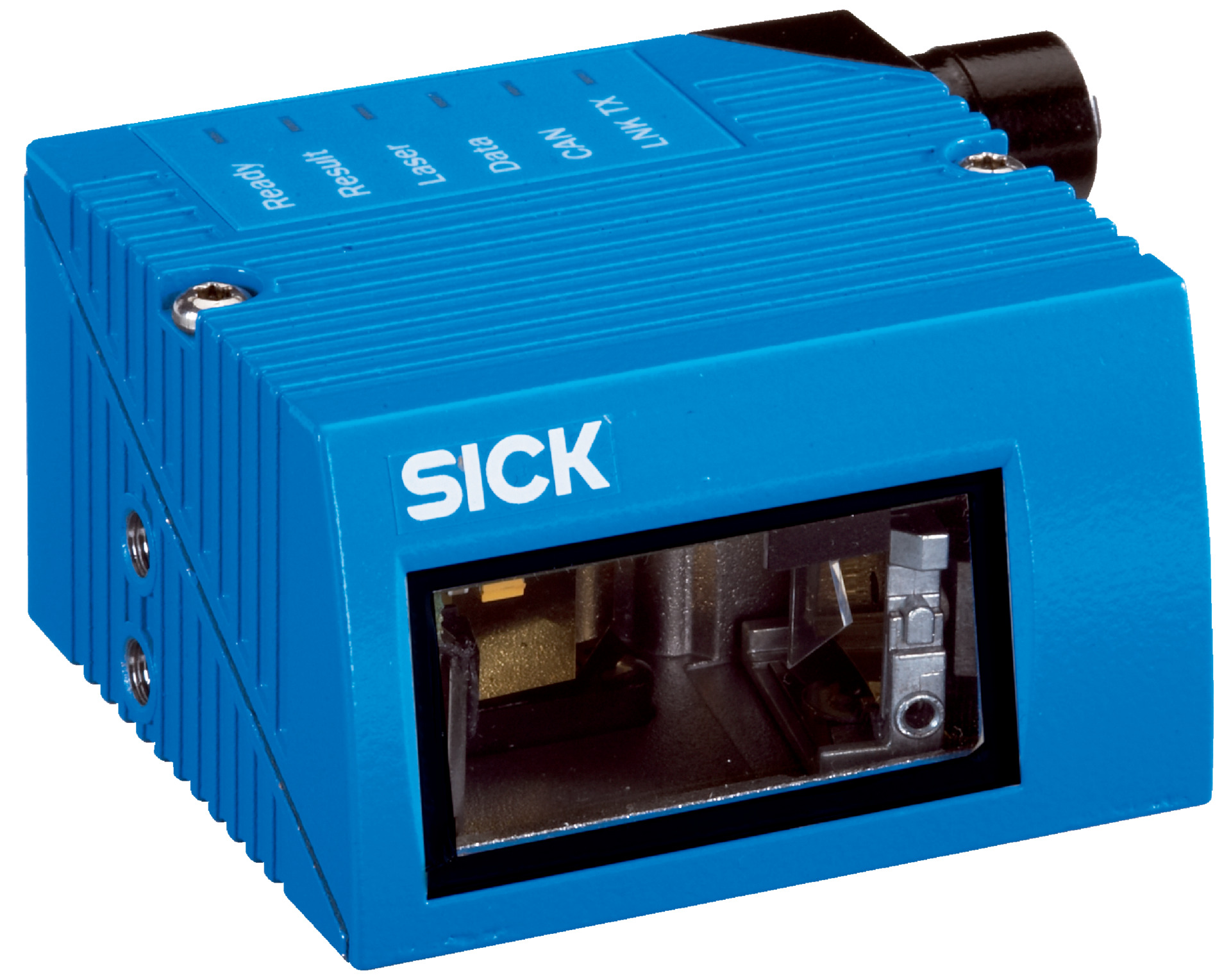

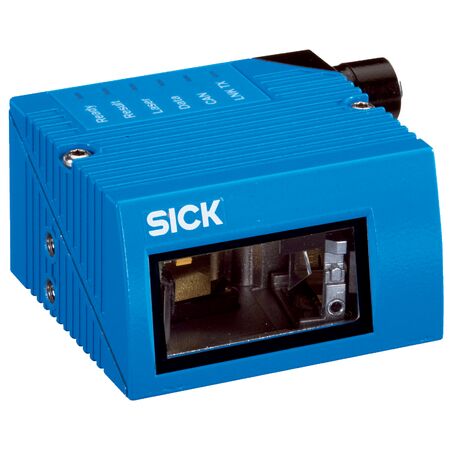

SICK CLV620-1120 Barcode Scanner | Mid Range | Ethernet Connection | IP65 Rated | by SICK
The SICK CLV620-1120 Barcode Scanner is a mid-range raster scanner designed for industrial automation and logistics. With an Ethernet connection and a reading distance of 60 mm to 365 mm, it supports all current 1D barcode types, ensuring high reliability and efficiency in barcode reading applications. Its robust aluminum housing and IP65 rating make it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV620-1120 Barcode Scanner | Mid Range | Ethernet Connection | IP65 Rated | by SICK
Brand: SICK
SKU: 1041549
Alternatively Known As: SICK CLV620-1120 Barcode Scanner, SICK Mid Range Raster Scanner, Industrial Barcode Reader, Ethernet Barcode Scanner
Technical Specifications
- Version: Mid Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: Class 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 365 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Raster height and lines: 15 mm, 8 lines at 200 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: 205 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Code 39, Code 128, Code 93, Codabar, GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: up to 1,500
- Interfaces: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Ambient light immunity: 2,000 lx on barcode
- Barcode print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.205 kg
Key Features
- Mid Range version with Ethernet connection
- Fixed optical focus with visible red laser light spot (655 nm)
- Reading distance from 60 mm to 365 mm
- High scanning frequency between 400 Hz and 1,200 Hz
- Supports all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Light blue housing color (RAL 5012) with glass window
- Low power consumption of 4.5 W
- High reliability with MTBF of 100,000 hours
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration, especially for network and fieldbus interfaces.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CLV620-1120 Mid Range Raster Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation and barcode reading applications.
