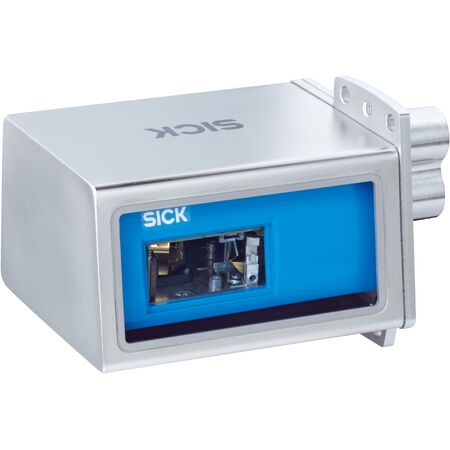

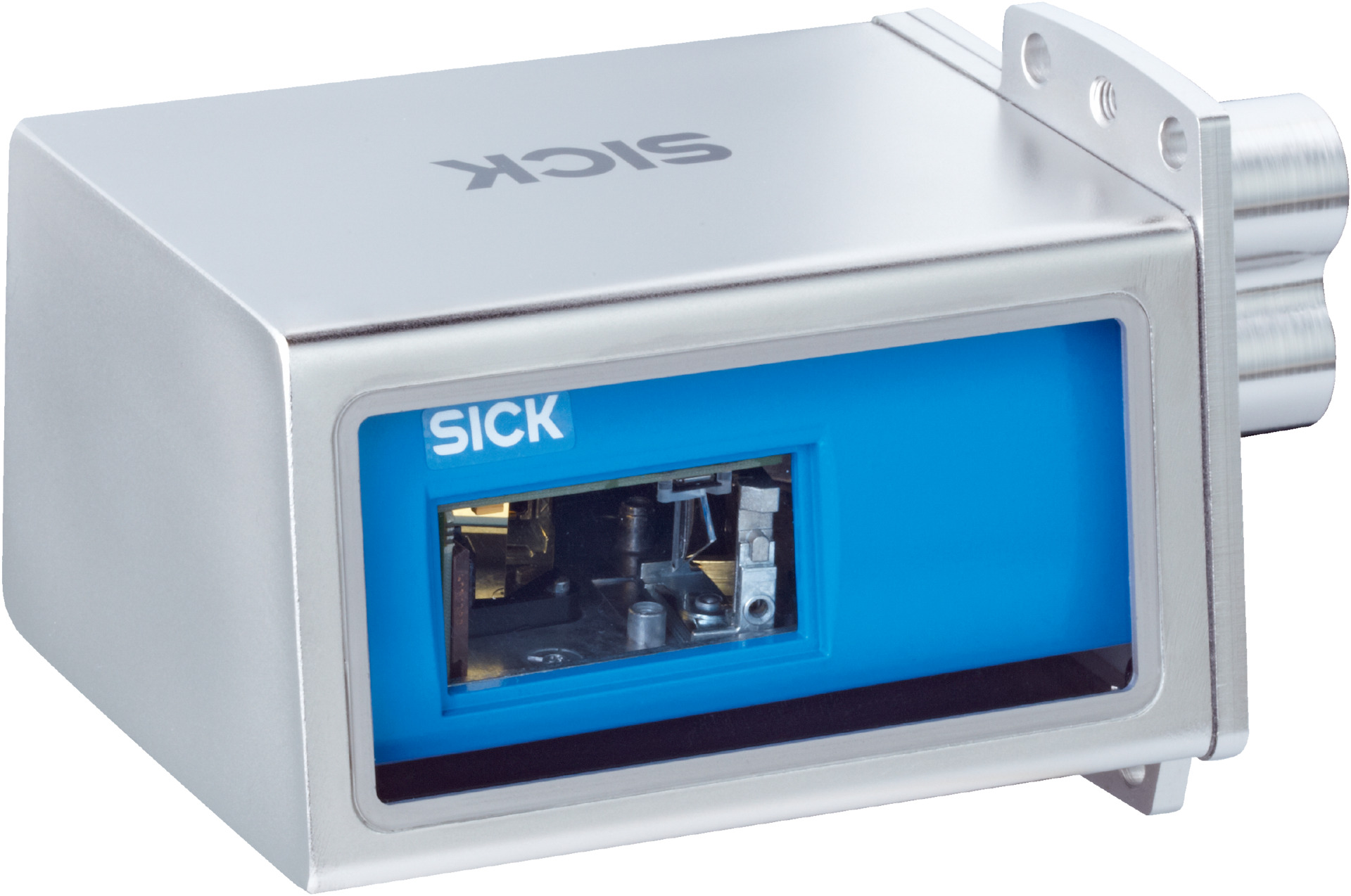

SICK CLV620 Mid Range Ethernet Barcode Scanner | IP69K Protection | High Scanning Frequency | by SICK
The SICK CLV620 Mid Range Ethernet Barcode Scanner is designed for industrial automation, featuring a robust stainless steel housing and IP69K protection. With a high scanning frequency of 400 Hz to 1,200 Hz and the ability to read 1D barcodes with resolutions from 0.2 mm to 1 mm, it's perfect for logistics, manufacturing, and quality assurance applications. This scanner supports multiple fieldbus options for seamless integration into your systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Ethernet, 2 x M12 cylindrical connectors (17-pin male, 4-pin female)
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Sensor type: Line scanner with fixed optical focus
- Light source: Visible red laser spot, 655 nm, Laser class 2
- Aperture angle: ≤ 50°
- Reading distance: 63 mm to 347 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Readable codes: All current 1D barcode types including Code 39, Code 128, GS1 DataBar, UPC, EAN, and more
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: up to 1,500
- Housing material: Stainless steel
- Window material: Plastic
- Enclosure rating: IP69K
- Protection class: III
- Weight: approx. 854 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Electromagnetic compatibility: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Configuration software: SOPAS ET
- Dimensions (H x L x W): 84mm x 85mm x 154mm
- Weight: 0.85 kg
Key Features
- Mid Range version with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes with high resolution from 0.2 mm to 1 mm
- Laser class 2 with visible red light spot at 655 nm
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust stainless steel housing with IP69K protection
- Supports up to 50 codes per reading interval and 1,500 characters
- Multiple digital inputs and outputs for flexible integration
- Comprehensive software configuration via SOPAS ET
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial Ethernet and laser safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces need for frequent replacements
- Energy-efficient operation with low power consumption of 4.5 W
- High reliability and long MTBF of 100,000 hours minimizes waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV620-0831S01 Mid Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
