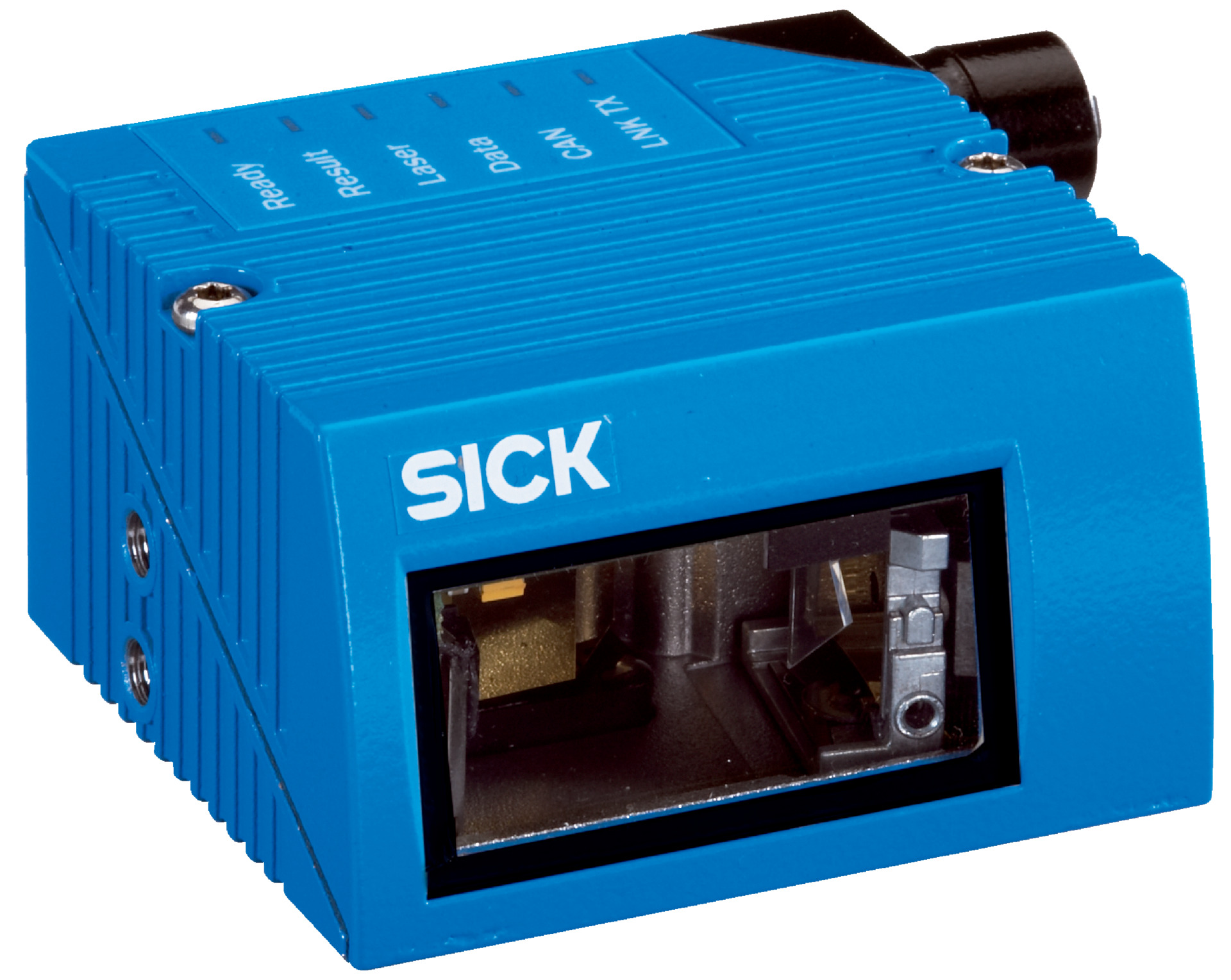

SICK CLV621 Long Range Line Scanner | Ethernet Connection | IP65 Rated | by SICK
The SICK CLV621 Long Range Line Scanner is designed for efficient barcode reading in industrial automation. With a robust aluminum housing and an IP65 rating, it operates effectively in demanding environments. This scanner supports a wide range of 1D barcode types and features a high scanning frequency of 400 Hz to 1,200 Hz, making it ideal for logistics, manufacturing, and quality assurance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Long Range
- Connection type: Ethernet
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Light spot, laser, Visible, Red, 655 nm
- Laser class: 2, complies with 21 CFR 1040.10 except for conformance according to Laser Notice No. 56 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 730 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.35 mm to 1 mm
- Connection type: 2 x M12 cylindrical connectors (1 x 17-pin male, 4-pin female) on swivel connector
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: 205 g without connecting cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported bar code types: Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 1,500 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 6 LEDs and beeper/buzzer
- Configuration software: SOPAS ET
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.205 kg
Key Features
- Long range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- High scanning frequency from 400 Hz to 1,200 Hz
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Light spot laser source, visible red at 655 nm
- Supports reading distances from 60 mm to 730 mm
- Multiple code reading per scan and high code resolution
- Equipped with LED and acoustic indicators
- Comprehensive configuration software SOPAS ET
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and product tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption of 4.5 W
- Durable housing reduces need for frequent replacements
- Supports non-contact barcode reading reducing material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

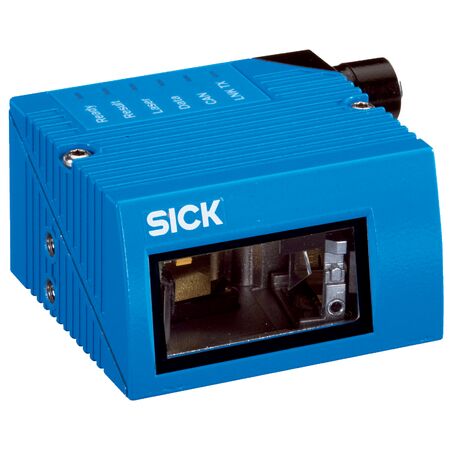

The SICK CLV621-0830 Long Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial automation and barcode reading applications.
