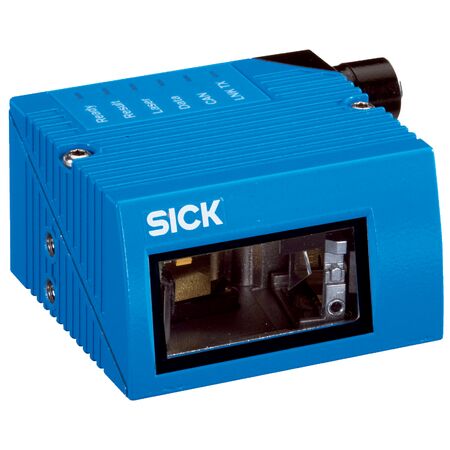

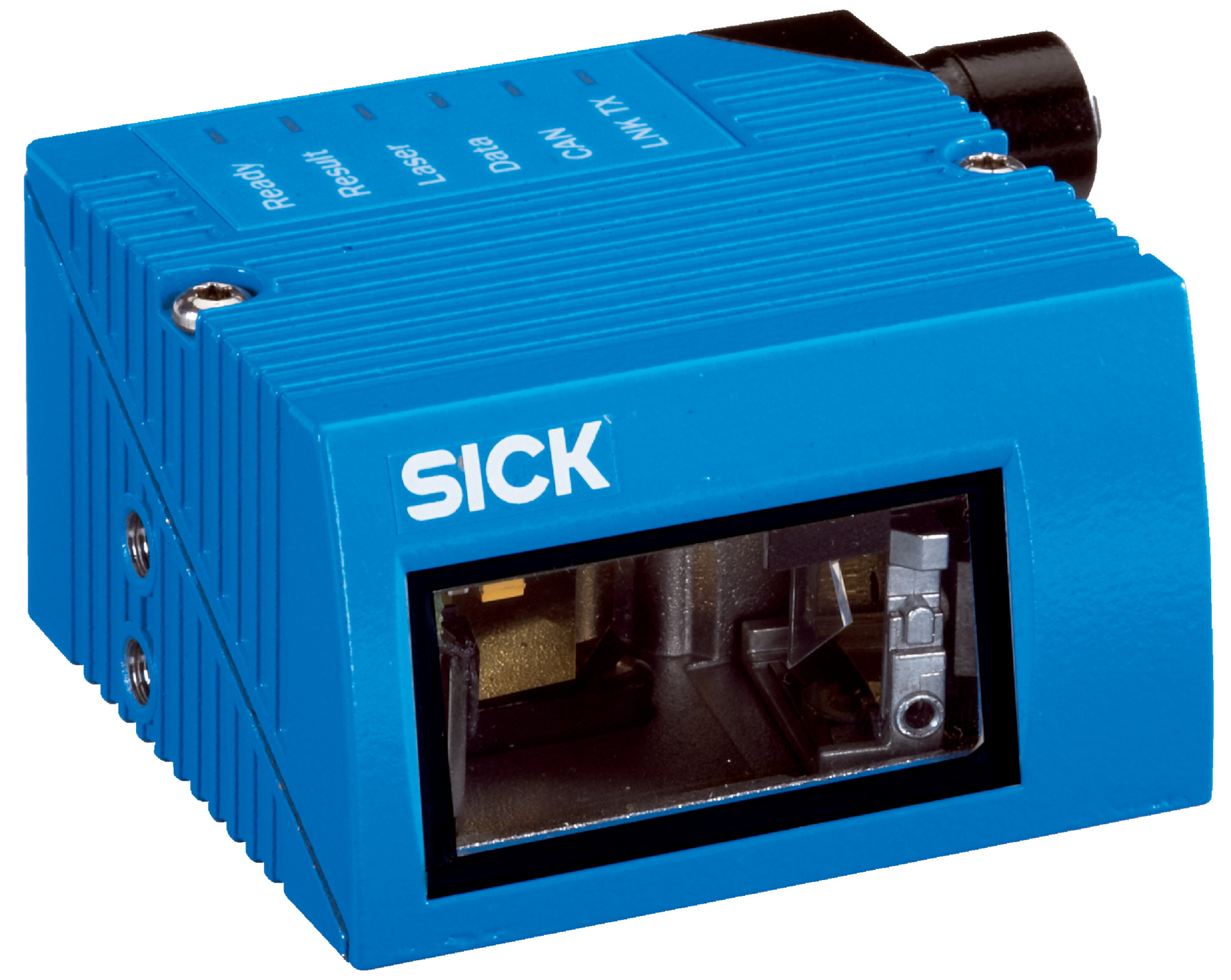

SICK CLV622-1120 Short Range Raster Scanner | Ethernet Connectivity | IP65 Rated | by SICK
The SICK CLV622-1120 Short Range Raster Scanner is designed for efficient industrial barcode reading, featuring Ethernet connectivity and a robust IP65-rated aluminum housing. With a high scanning frequency of 400 Hz to 1200 Hz and the ability to read all current 1D barcode types, it's perfect for logistics, manufacturing, and quality control applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV622-1120 Short Range Raster Scanner | Ethernet Connectivity | IP65 Rated | by SICK
Brand: SICK
SKU: 1041795
Alternatively Known As: SICK CLV622 Barcode Scanner, SICK Raster Scanner, Industrial Barcode Reader, Ethernet Barcode Scanner
Technical Specifications
- Version: Short Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 55 mm to 200 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.15 mm to 0.5 mm
- Raster height: 15 mm at 200 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 205 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial 2,400 to 115.2 kBaud
- Interfaces: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial RS-232/422/485, CAN, CANopen, PROFIBUS DP
- Indicators: 6 LEDs and beeper/buzzer
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.205 kg
Key Features
- Short range raster scanner with fixed optical focus
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- High scanning frequency from 400 Hz to 1200 Hz
- Compact aluminum die cast housing with IP65 rating
- Laser class 2 with visible red light source at 655 nm
- Multiple digital inputs and outputs with LED and acoustic indicators
- Robust against ambient light up to 2000 lx and vibration/shock resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and network systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable IP65 housing extends product life and reduces waste
- Supports digital communication reducing need for additional hardware
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV622-1120 Short Range Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
