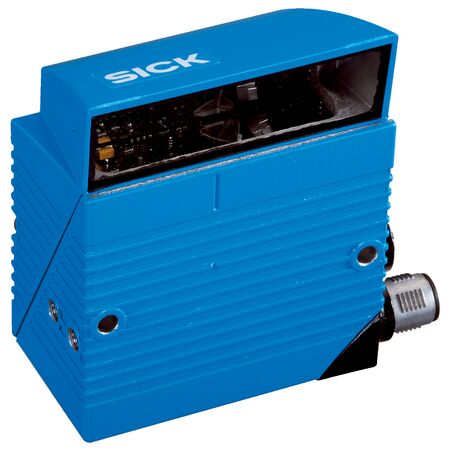

SICK CLV622-2120 Short Range Ethernet Line Scanner | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
The SICK CLV622-2120 Short Range Ethernet Line Scanner is designed for efficient barcode reading in industrial automation. With a robust IP65-rated aluminum housing and a high scanning frequency of 400 to 1200 Hz, it ensures reliable performance in logistics and manufacturing applications. This scanner reads all current 1D barcode types with precision, making it ideal for quality control and traceability tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV622-2120 Short Range Ethernet Line Scanner | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1041797
Alternatively Known As: SICK CLV622 Barcode Scanner, SICK Ethernet Line Scanner, SICK Short Range Barcode Reader
Technical Specifications
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Sensor type: Line scanner with fixed optical focus
- Light source: Visible red laser, 655 nm, Laser class 2
- Reading field: Side 105°
- Aperture angle: ≤ 50°
- Reading distance: 55 mm to 200 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.15 mm to 0.5 mm
- Readable codes: All current 1D barcode types including Code 39, Code 128, GS1 DataBar, UPC, EAN
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Weight: 230 g without cable
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.23 kg
Key Features
- Short range line scanner with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reading field side angle of 105° with aperture angle ≤ 50°
- Laser class 2 with visible red light spot at 655 nm
- High scanning frequency from 400 Hz to 1,200 Hz
- Reads all current 1D barcode types with high resolution
- Robust aluminum die cast housing with IP65 rating
- Multiple digital inputs and outputs with LED and acoustic indicators
- Supports SICK CAN sensor network and SOPAS ET configuration software
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and packaging for code verification
- Manufacturing for quality control and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 4.5 W reduces energy usage
- Durable housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK CLV622-2120 Short Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
