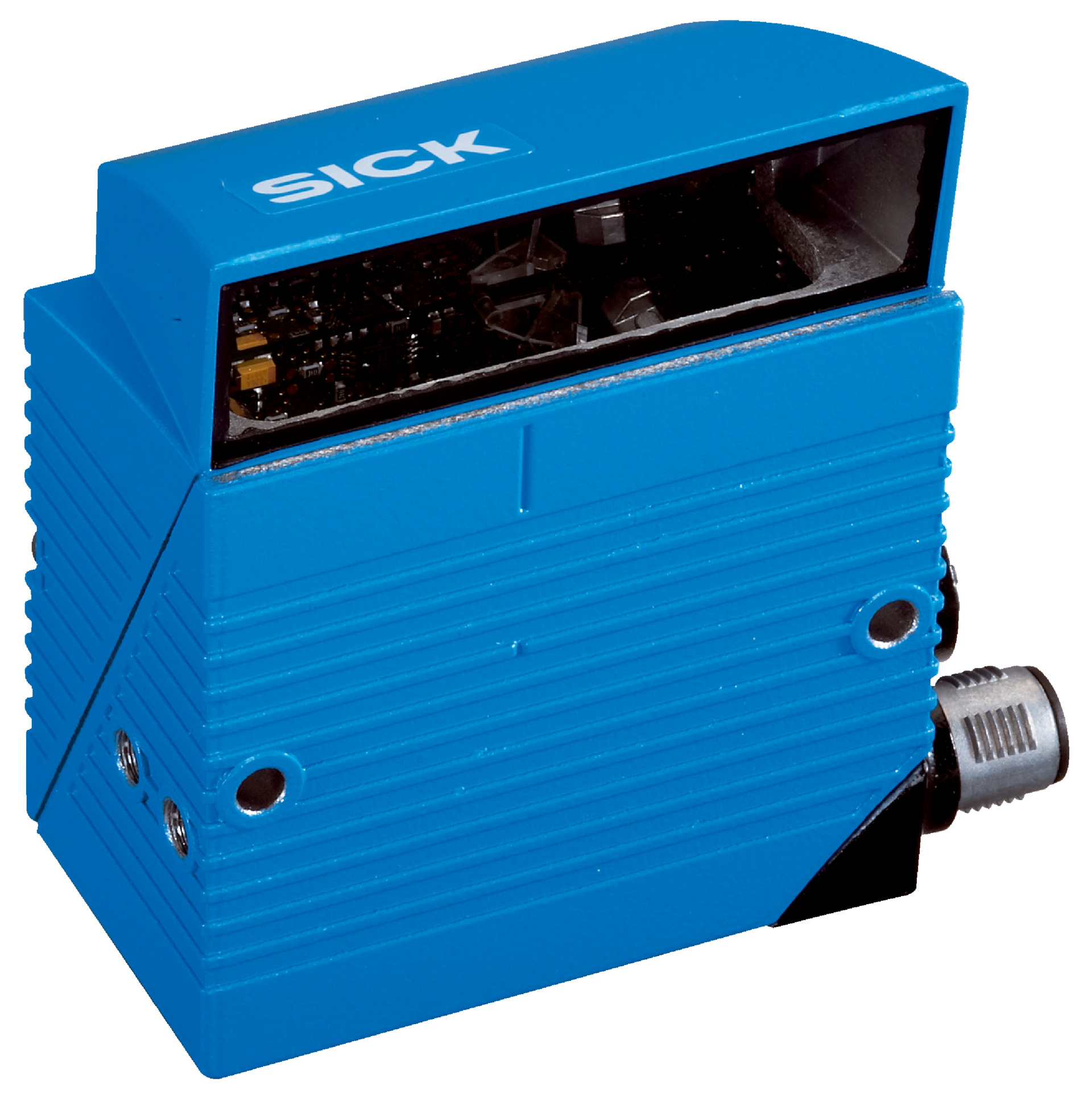

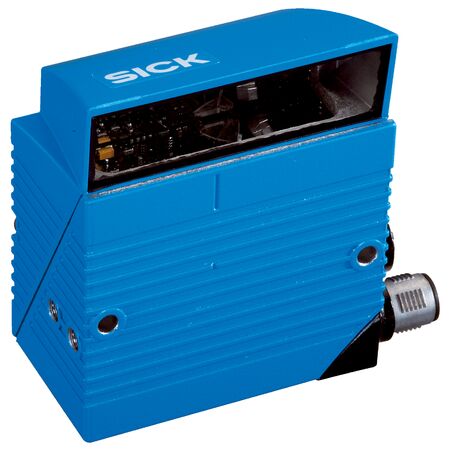

SICK CLV622-3121 Short Range Raster Scanner | Ethernet Connectivity | IP65 Rated | by SICK
The SICK CLV622-3121 Short Range Raster Scanner is designed for efficient industrial barcode reading, featuring Ethernet connectivity and a robust IP65-rated aluminum housing. With a high scanning frequency of 400 Hz to 1,200 Hz and the ability to read all current 1D barcode types, it's perfect for logistics, manufacturing, and quality assurance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV622-3121 Short Range Raster Scanner | Ethernet Connectivity | IP65 Rated | by SICK
Brand: SICK
SKU: 1043068
Alternatively Known As: SICK CLV622 Barcode Scanner, SICK Raster Scanner, Industrial Barcode Reader, Ethernet Barcode Scanner
Technical Specifications
- Version: Short Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Side 105°
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 55 mm to 200 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.15 mm to 0.5 mm
- Raster height and lines: 15 mm, 8 lines at 185 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP65
- Protection class: III
- Weight: 230 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Interfaces: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial RS-232/422/485, CAN, CANopen, PROFIBUS DP
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.23 kg
Key Features
- Short range raster scanner with fixed optical focus
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads all current 1D barcode types with high resolution (0.15 mm to 0.5 mm)
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Laser class 2 with visible red light spot (655 nm)
- Multiple digital inputs and outputs with LED and acoustic indicators
- Supports up to 50 codes per reading interval and up to 1,500 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 4.5 W reduces energy usage
- Durable housing extends product lifespan, reducing waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV622-3121 Short Range Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
