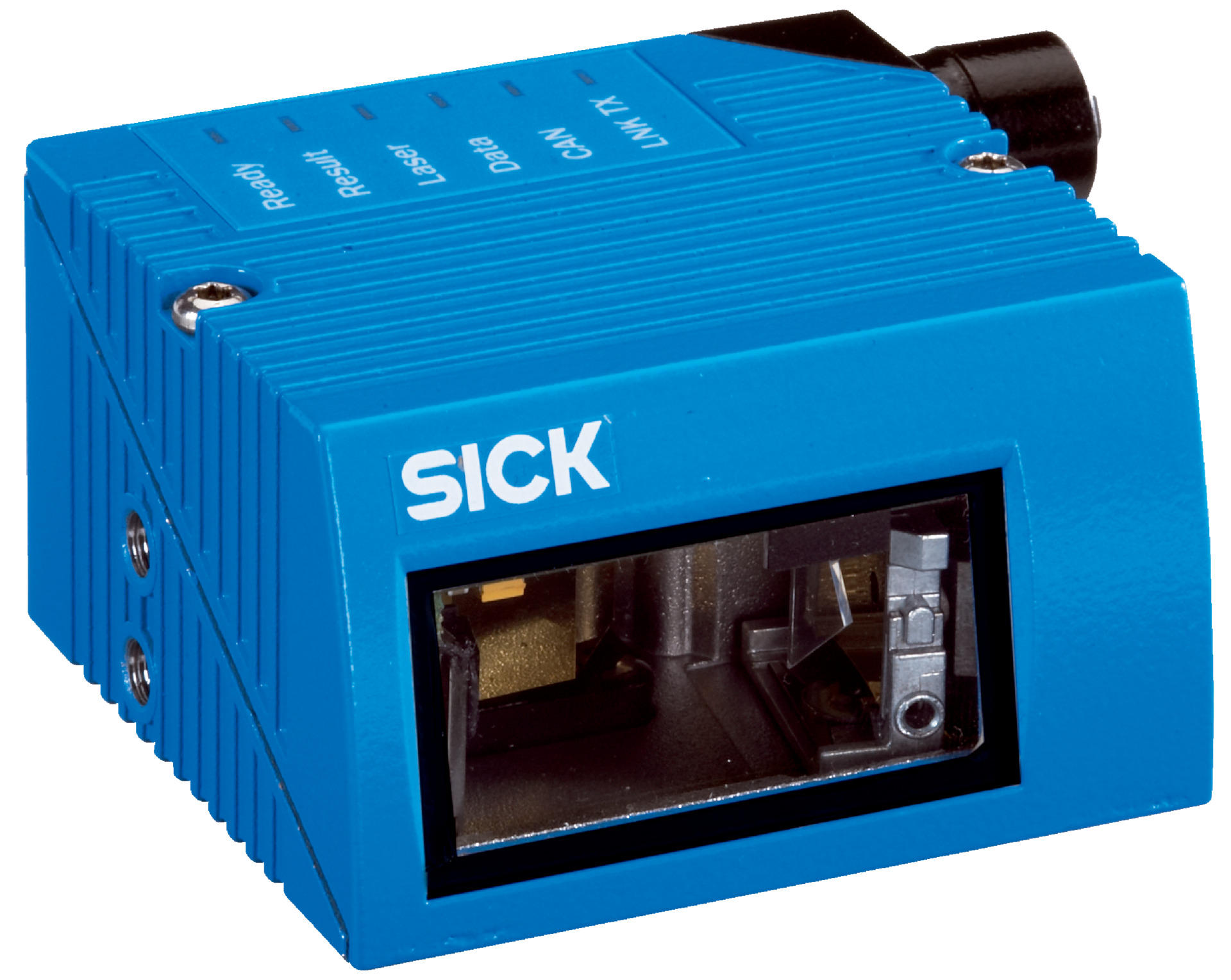

SICK CLV622 Short Range Ethernet Line Scanner | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
The SICK CLV622 Short Range Ethernet Line Scanner is designed for efficient barcode reading in industrial automation. With a robust aluminum housing and an IP65 rating, it operates at a high scanning frequency of 400 to 1200 Hz, ensuring quick and accurate code verification. Ideal for logistics, packaging, and manufacturing applications, this scanner reads all current 1D barcode types with precision, making it a reliable choice for quality control and traceability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV622 Short Range Ethernet Line Scanner | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1044794
Alternatively Known As: SICK CLV622 Barcode Scanner, SICK Ethernet Line Scanner, SICK Short Range Barcode Reader
Technical Specifications
- Version: Short Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser spot, 655 nm
- Laser class: 2 (IEC 60825-1 compliant)
- Aperture angle: ≤ 50°
- Reading distance: 55 mm to 200 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.15 mm to 0.5 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP65
- Protection class: III
- Weight: 205 g (without cable)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 Mbit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Configuration software: SOPAS ET
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.205 kg
Key Features
- Short range line scanner with fixed optical focus
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads all current 1D barcode types with high resolution (0.15 mm to 0.5 mm)
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Laser class 2 compliant with IEC 60825-1 standards
- Multiple digital inputs and outputs with LED and acoustic indicators
- Configuration via SOPAS ET software
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and packaging for code verification
- Manufacturing for quality control and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption of 4.5 W
- Durable aluminum housing reduces material waste and extends product life
- Complies with RoHS and China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

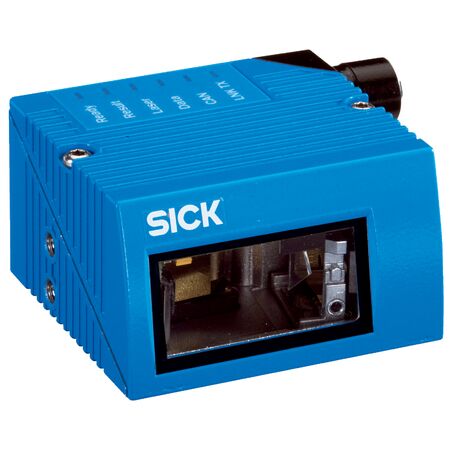

The SICK CLV622-0121 Short Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
