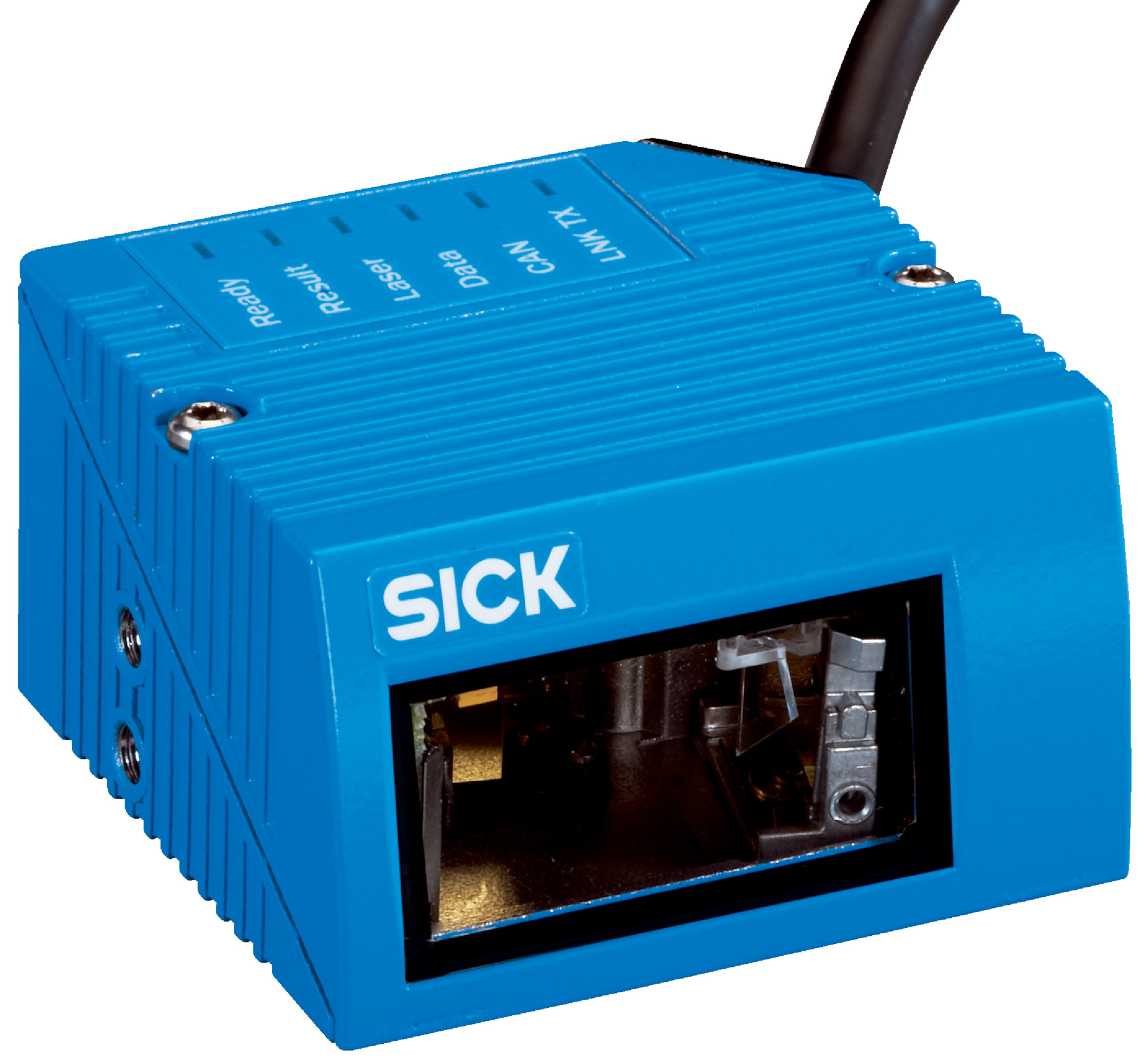

SICK CLV622 Short Range Line Scanner | 1D Barcode Reader | IP65 Rated | by SICK
The SICK CLV622 Short Range Line Scanner is designed for efficient barcode reading in industrial automation. With a high scanning frequency of 400 Hz to 1,200 Hz and the ability to read various 1D barcode formats, it’s perfect for logistics, manufacturing, and quality control applications. Its robust aluminum housing and IP65 rating ensure durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV622 Short Range Line Scanner | 1D Barcode Reader | IP65 Rated | by SICK
Brand: SICK
SKU: 1047882
Alternatively Known As: SICK CLV622 Barcode Scanner, SICK Short Range Line Scanner, Industrial Barcode Reader, SICK CLV6xx Series Scanner
Technical Specifications
- Version: Short Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser spot, 655 nm
- Laser class: 2, compliant with IEC 60825-1:2014 and related standards
- Aperture angle: ≤ 50°
- Reading distance: 55 mm to 200 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.15 mm to 0.5 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: up to 1,500
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 6 LEDs and acoustic beeper
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.225 kg
Key Features
- Short range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple interface options including PROFINET, EtherCAT, CAN, and Serial
- Laser class 2 with visible red light source at 655 nm
- Supports up to 50 codes per reading interval and 1,500 characters
- Equipped with 6 LED optical indicators and acoustic beeper
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low power consumption of 4.5 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

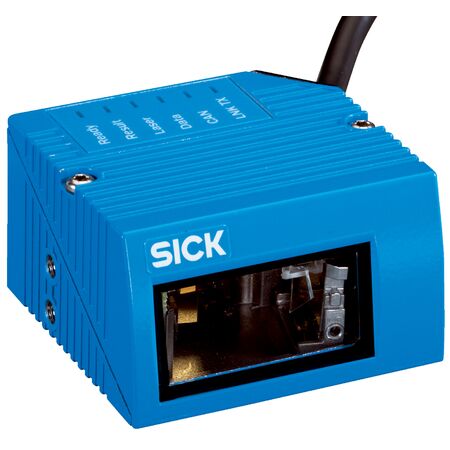

The SICK CLV622-0001 Short Range Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
