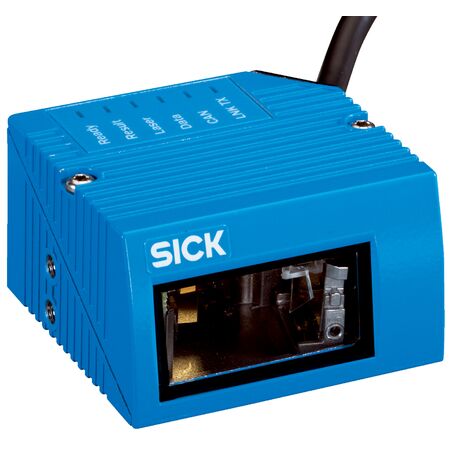

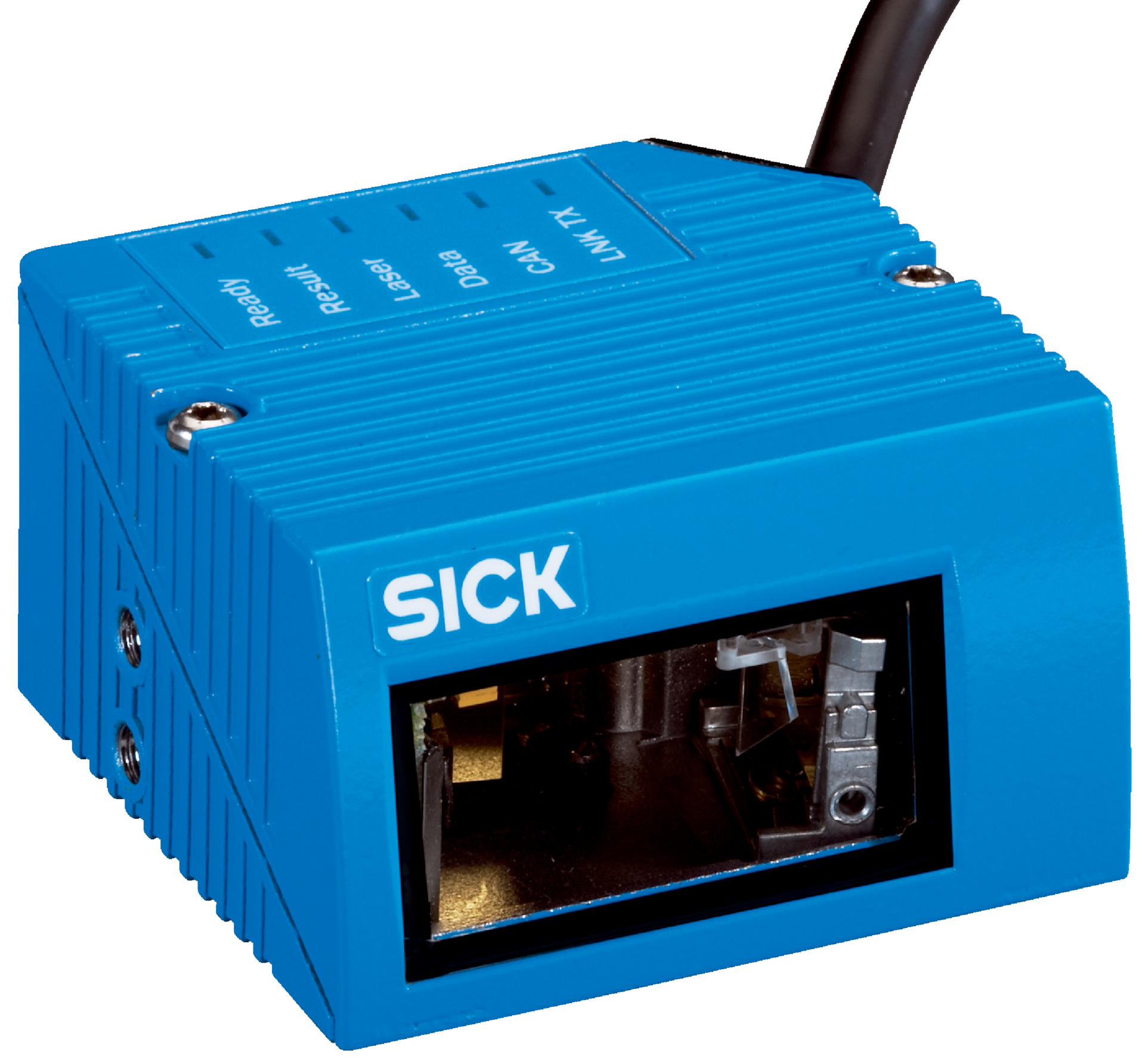

SICK CLV622 Short Range Line Scanner | Fixed Focus | IP65 Rated | by SICK
The SICK CLV622 Short Range Line Scanner is designed for efficient barcode reading in industrial automation, logistics, and manufacturing. With a reading distance of 55 mm to 200 mm and a high scanning frequency of 400 Hz to 1,200 Hz, it supports all current 1D barcode types. Its robust aluminum housing and IP65 rating ensure durability in demanding environments, making it an ideal choice for quality control and tracking applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV622 Short Range Line Scanner | Fixed Focus | IP65 Rated | by SICK
Brand: SICK
SKU: 1041792
Alternatively Known As: SICK CLV622 Barcode Scanner, SICK Short Range Line Scanner, Industrial Barcode Reader, Fixed Focus Laser Scanner
Technical Specifications
- Version: Short Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: Class 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 55 mm to 200 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.15 mm to 0.5 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 1,500 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Configuration software: SOPAS ET
- Electromagnetic compatibility: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Barcode print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.225 kg
Key Features
- Short range line scanner with fixed optical focus
- Visible red laser light source at 655 nm
- Reading distance from 55 mm to 200 mm
- High scanning frequency between 400 Hz and 1200 Hz
- Supports all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- Robust aluminum die cast housing with IP65 rating
- Multiple interface options including PROFINET, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- Equipped with 6 LEDs and acoustic indicators for status
- Operating temperature range from 0°C to +40°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehousing for code scanning
- Manufacturing for quality control and tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption at 4.5 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV622-0000 Short Range Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation, logistics, and manufacturing applications.
