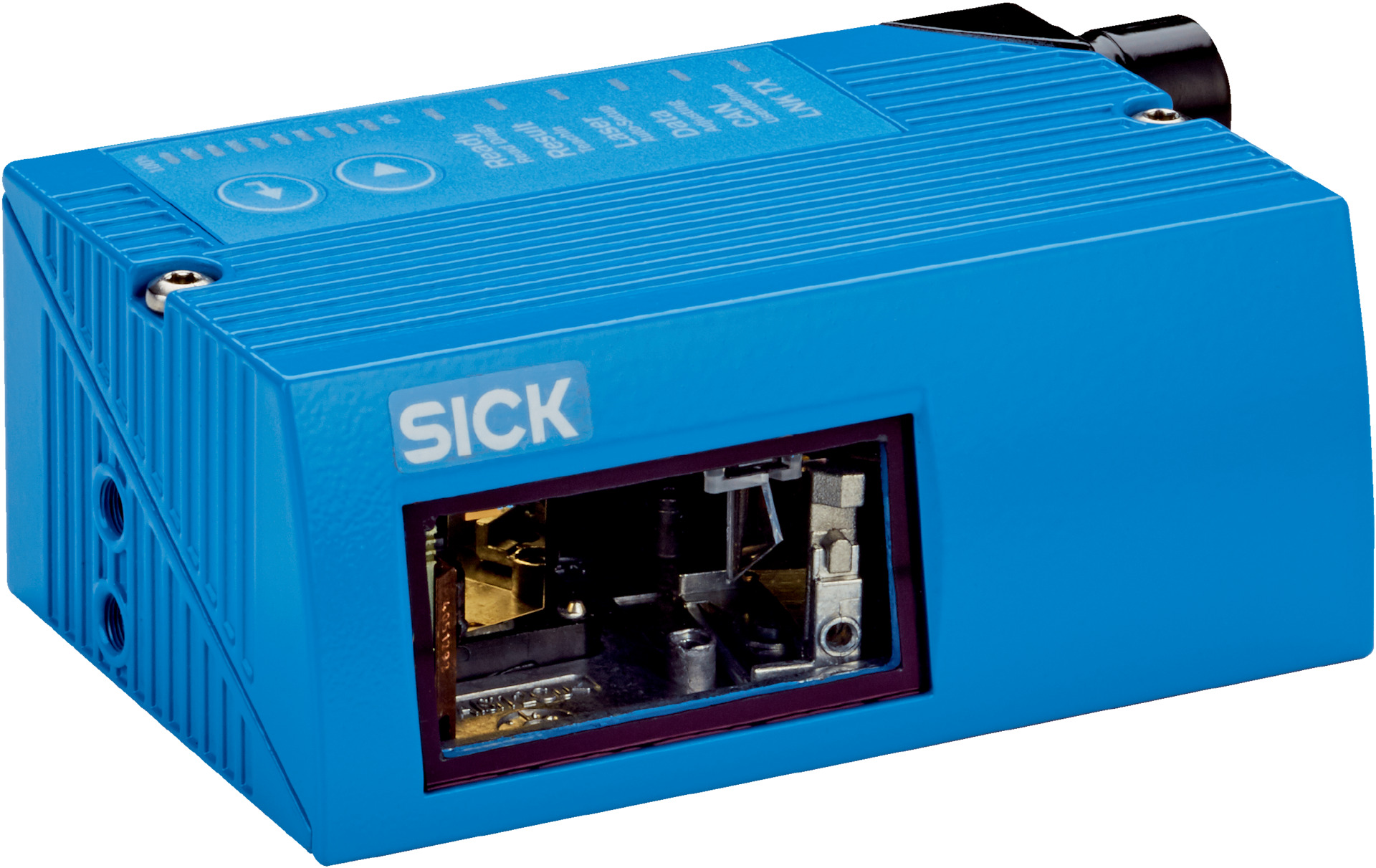

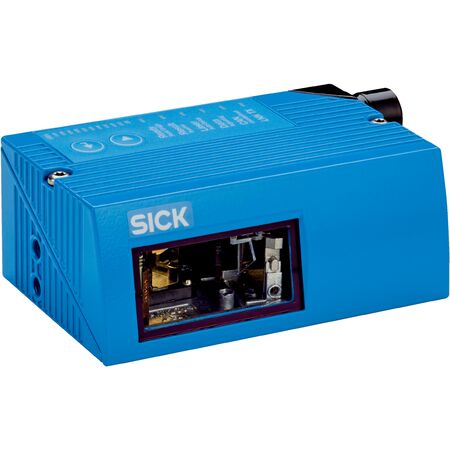

SICK CLV630-0120 Long Range Ethernet Barcode Scanner | IP65 Rated | Fixed Focus & High Scanning Frequency | by SICK
The SICK CLV630-0120 Long Range Ethernet Barcode Scanner is designed for industrial automation, featuring a robust aluminum housing and an IP65 rating for harsh environments. With a fixed optical focus and the ability to read all current 1D barcode types at high resolution, it's perfect for logistics, manufacturing process control, and quality assurance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV630-0120 Long Range Ethernet Barcode Scanner | IP65 Rated | Fixed Focus & High Scanning Frequency | by SICK
Brand: SICK
SKU: 1041969
Alternatively Known As: SICK CLV630 Barcode Scanner, SICK Long Range Line Scanner, Ethernet Barcode Reader, Industrial Barcode Scanner
Technical Specifications
- Version: Long Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 735 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.35 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 250 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Long range line scanner with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads all current 1D barcode types with high resolution and scanning frequency
- Robust aluminum die cast housing with IP65 rating for harsh environments
- Laser class 2 with visible red light spot at 655 nm
- Multiple digital inputs and outputs with LED and acoustic indicators
- Supports microSD memory card for configuration
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low power consumption of 5 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV630-0120 Long Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
