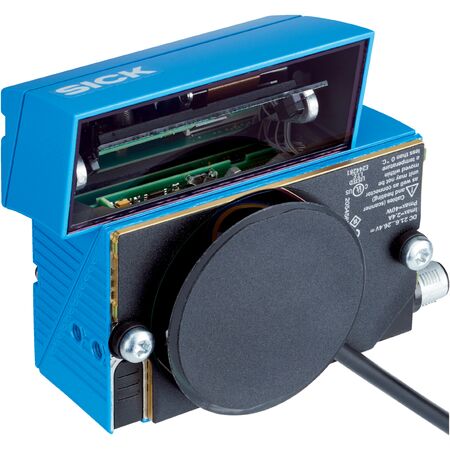

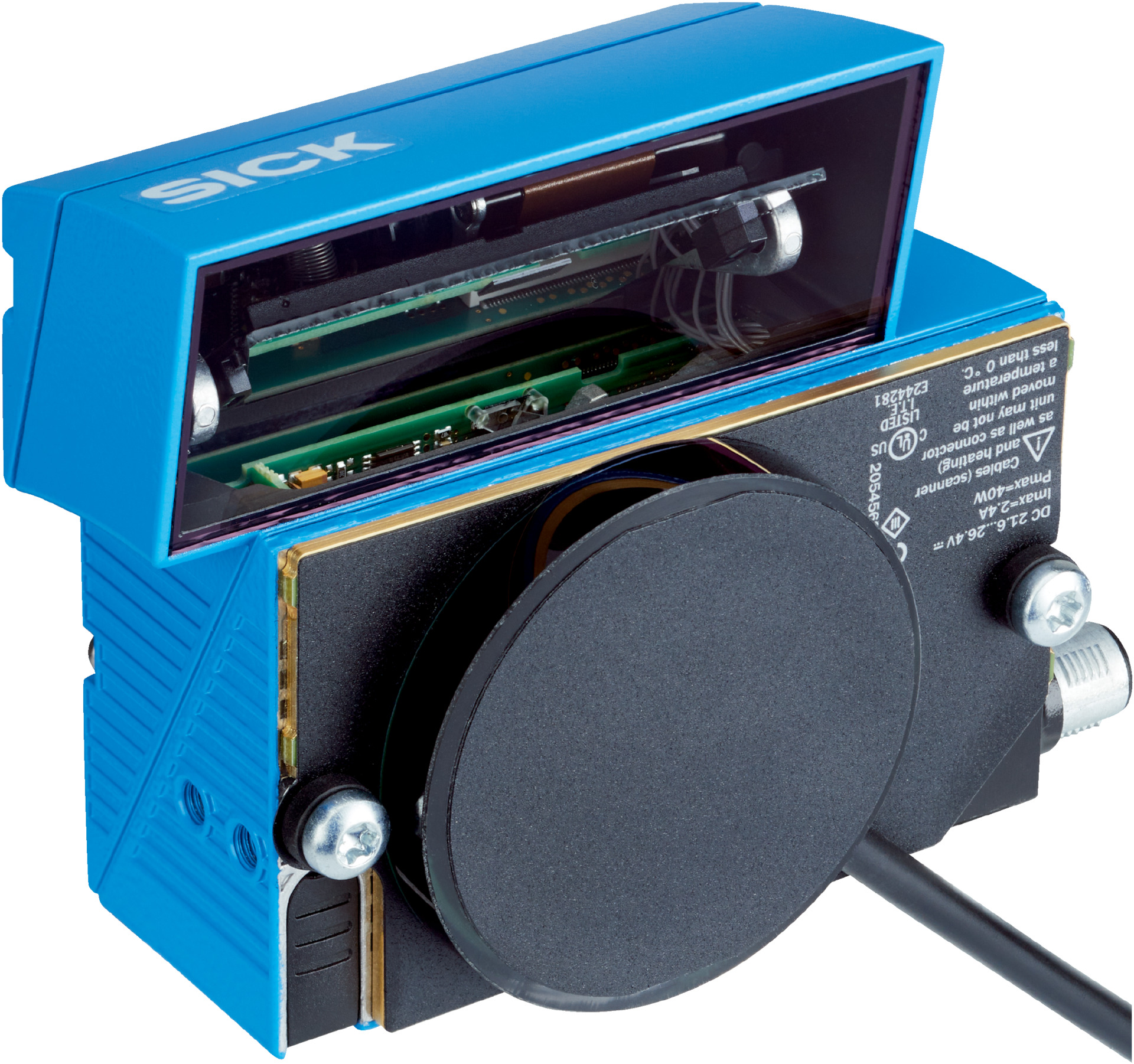

SICK CLV630 Long Range Line Scanner | Ethernet Connection | IP65 Rated | by SICK
The SICK CLV630 Long Range Line Scanner is designed for efficient barcode reading in industrial automation. With a fixed optical focus and oscillating mirror, it supports a wide range of 1D barcode types and operates at a high scanning frequency of 400 Hz to 1200 Hz. Its robust aluminum housing and IP65 rating make it ideal for logistics, manufacturing, and cold storage applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV630 Long Range Line Scanner | Ethernet Connection | IP65 Rated | by SICK
Brand: SICK
SKU: 1051864
Alternatively Known As: SICK CLV630 Barcode Scanner, SICK Long Range Line Scanner, SICK Ethernet Barcode Reader, Industrial Barcode Scanner
Technical Specifications
- Version: Long Range
- Connection type: Ethernet
- Reading field: Oscillating mirror
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 45 mm to 659 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Heating: Included
- Cold storage applications: Supported
- Supply voltage: ≤ 24 V DC, ± 10%
- Power consumption: 40 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 550 g (without connecting cable)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 50mm x 95mm x 107mm
- Weight: 0.55 kg
Key Features
- Long range line scanner with fixed optical focus
- Oscillating mirror with adjustable position and variable amplitude
- Visible red laser light spot (655 nm), laser class 2
- High scanning frequency from 400 Hz to 1200 Hz
- Supports reading of all current 1D barcode types
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Heating function for cold storage applications
- 6 LED optical indicators and acoustic beeper for status feedback
- Configuration via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and compliant with local electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Cold storage environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Supports cold storage applications minimizing need for additional heating equipment
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CLV630-6120F0 Long Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial automation and barcode reading applications.
