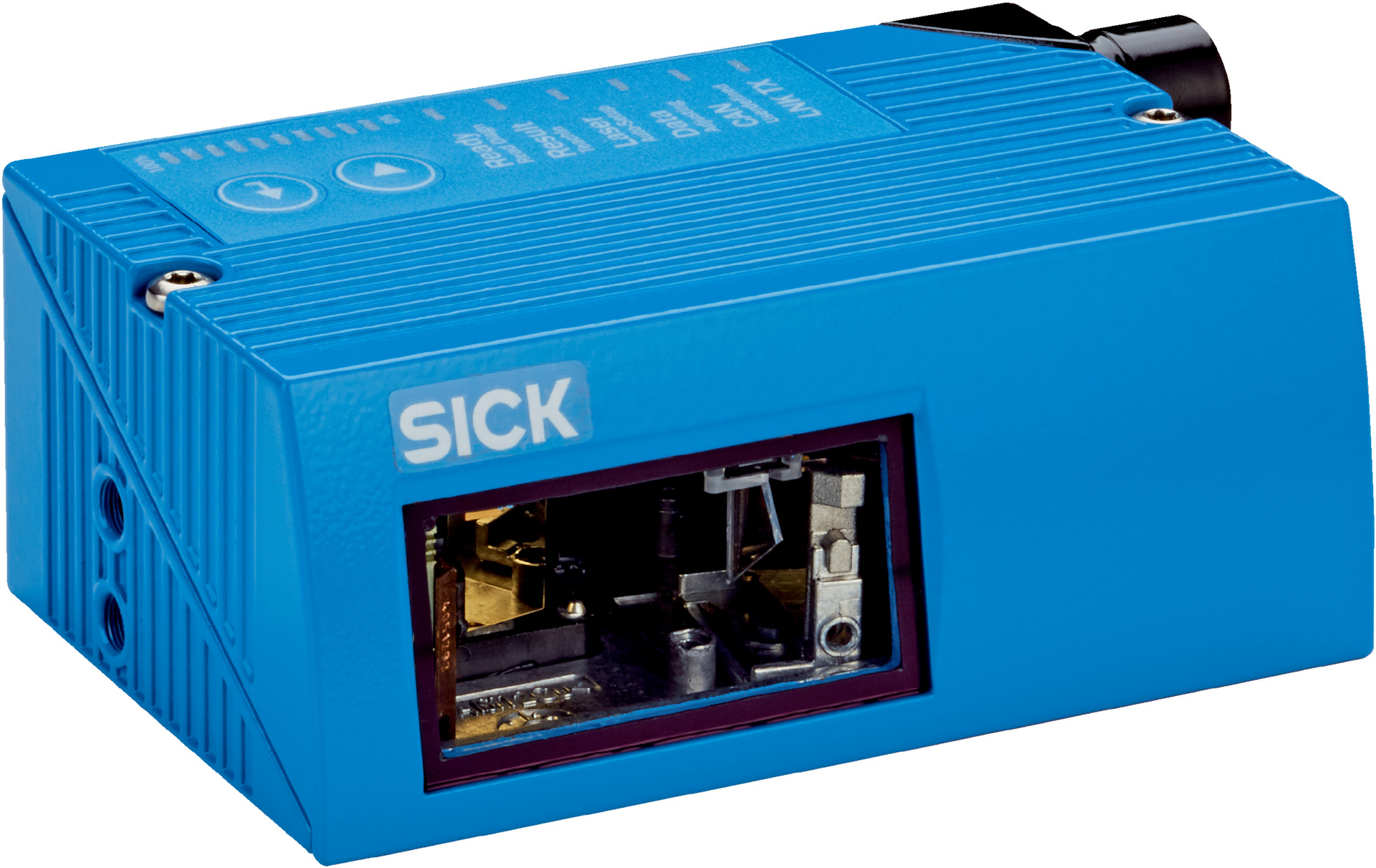

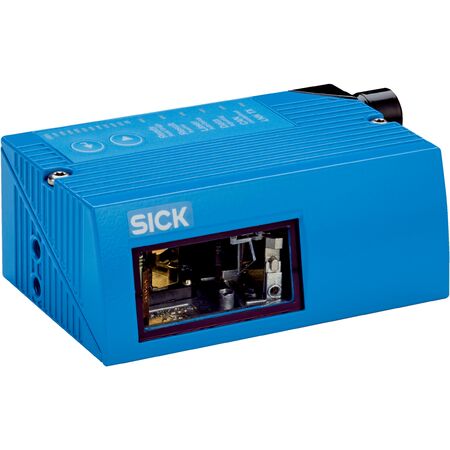

SICK CLV631-0120 Mid Range Ethernet Barcode Scanner | IP65 Rated | High Scanning Frequency | by SICK
The SICK CLV631-0120 Mid Range Ethernet Barcode Scanner is designed for industrial automation, featuring a robust IP65-rated aluminum housing and high scanning frequency from 400 Hz to 1,200 Hz. With the ability to read all current 1D barcode types at high resolution, it's perfect for logistics, manufacturing process control, and quality assurance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV631-0120 Mid Range Ethernet Barcode Scanner | IP65 Rated | High Scanning Frequency | by SICK
Brand: SICK
SKU: 1041979
Alternatively Known As: SICK CLV631 Barcode Scanner, SICK Mid Range Line Scanner, Ethernet Barcode Reader, Industrial Barcode Scanner
Technical Specifications
- Connection type: Ethernet, 2 x M12 cylindrical connectors (12-pin male, 4-pin female)
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Sensor type: Line scanner with fixed optical focus
- Light source: Visible red laser, 655 nm, laser class 2
- Reading distance: 90 mm to 450 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.25 mm to 0.5 mm
- Readable codes: All current 1D barcode types including Code 39, Code 128, GS1 DataBar, UPC, EAN, and more
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Weight: 250 g without cable
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- EMC: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Mid Range version with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes with high resolution (0.25 mm to 0.5 mm)
- Laser class 2 with visible red light spot (655 nm)
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple digital and optical indicators for status and results
- Supports up to 50 codes per reading interval and up to 5,000 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and product tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 5 W reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV631-0120 Mid Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
