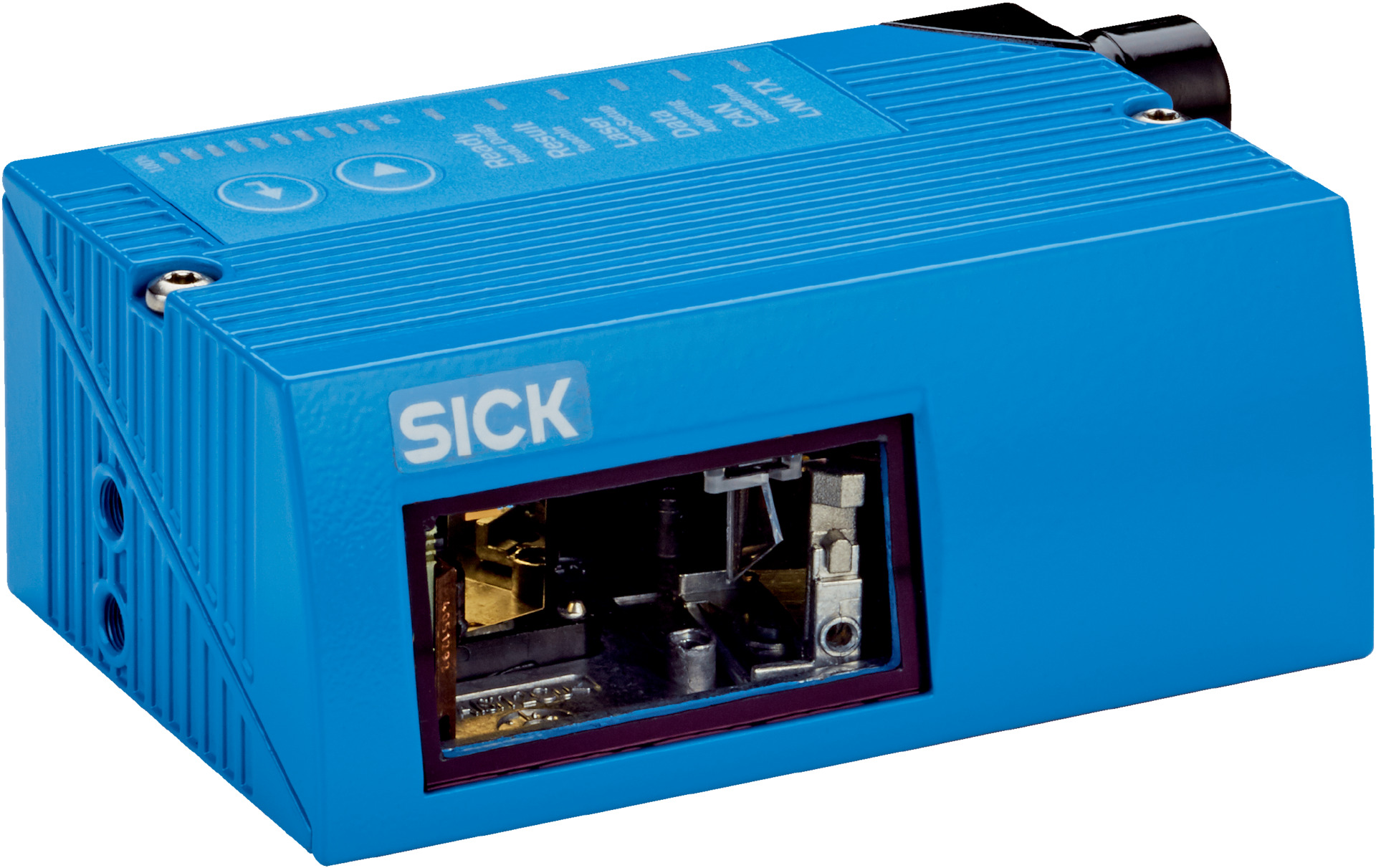

SICK CLV631-1120 Mid Range Raster Scanner | Ethernet Connectivity | IP65 Rated | High Scanning Frequency | by SICK
The SICK CLV631-1120 Mid Range Raster Scanner is designed for efficient barcode reading in industrial automation and logistics. With Ethernet connectivity and a robust IP65-rated aluminum housing, it operates effectively in various environments. This scanner supports all current 1D barcode types with high resolution and features a scanning frequency of 400 Hz to 1,200 Hz, making it ideal for manufacturing process control and quality assurance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV631-1120 Mid Range Raster Scanner | Ethernet Connectivity | IP65 Rated | High Scanning Frequency | by SICK
Brand: SICK
SKU: 1041981
Alternatively Known As: SICK CLV631 Raster Scanner, SICK Mid Range Barcode Reader, SICK Ethernet Barcode Scanner
Technical Specifications
- Version: Mid Range
- Connection type: Ethernet, 2 x M12 connectors
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 90 mm to 450 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.25 mm to 0.5 mm
- Raster height: 15 mm at 8 lines, 200 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 Mbit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Indicators: 6 LEDs and beeper
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Mid range raster scanner with fixed optical focus
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads all current 1D barcode types with high resolution (0.25 mm to 0.5 mm)
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Laser class 2 with visible red light spot (655 nm)
- Multiple digital inputs and outputs with LED and acoustic indicators
- Supports microSD memory card for configuration
- Wide ambient operating temperature range 0 °C to +40 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low power consumption (5 W)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV631-1120 Mid Range Raster Scanner is available for immediate purchase, ideal for industrial and logistics barcode scanning applications.
