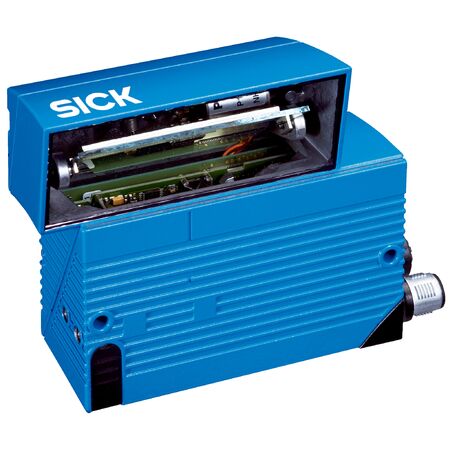

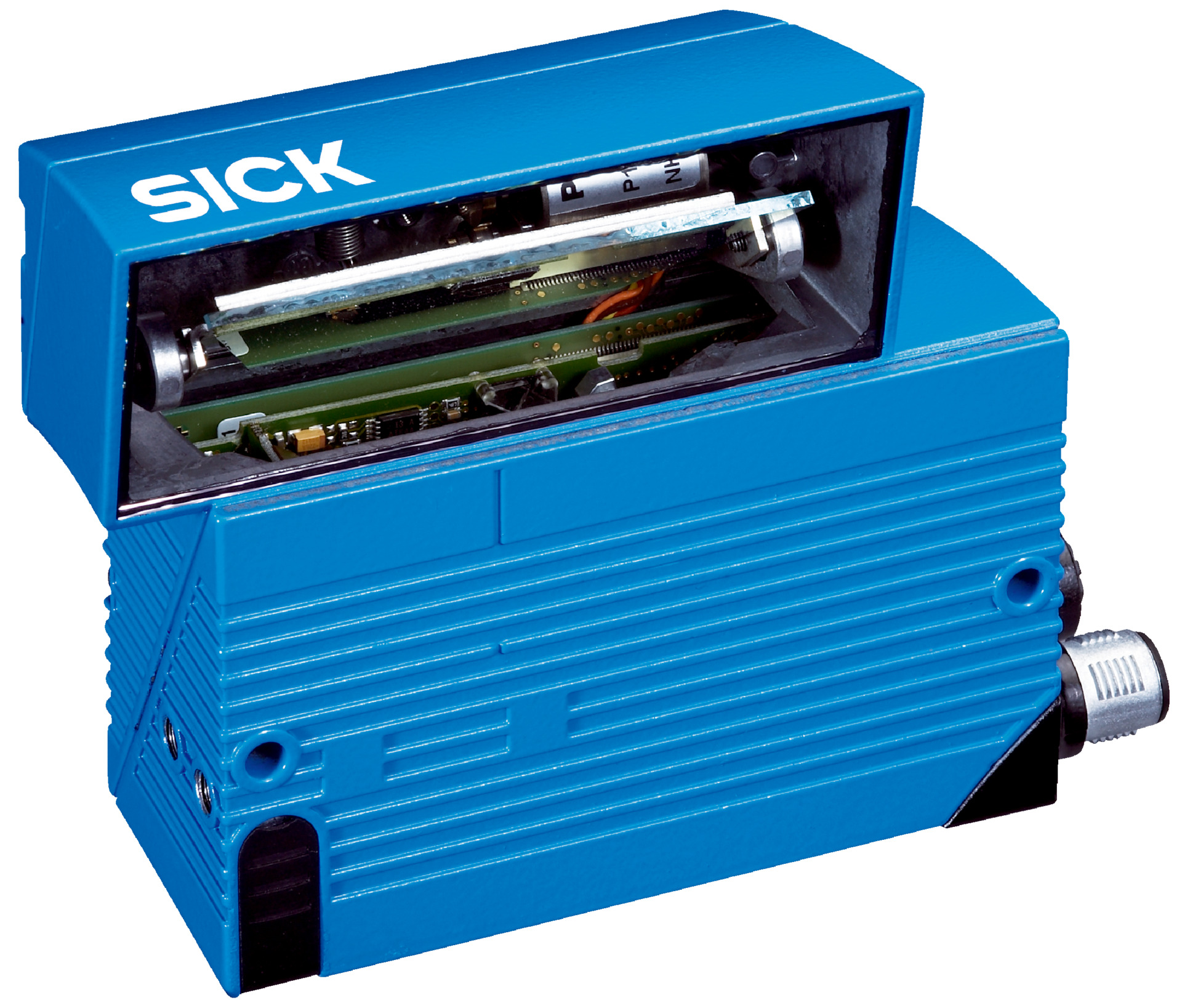

SICK CLV631-6121 Mid Range Line Scanner | Ethernet Connection | IP65 Rated | by SICK
The SICK CLV631-6121 Mid Range Line Scanner is designed for efficient barcode reading in industrial automation, logistics, and manufacturing. With a robust aluminum housing and IP65 rating, it features a visible red laser light spot and supports all current 1D barcode types. Ideal for quality assurance and traceability, this scanner ensures high performance with a scanning frequency of 400 Hz to 1200 Hz.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV631-6121 Mid Range Line Scanner | Ethernet Connection | IP65 Rated | by SICK
Brand: SICK
SKU: 1053805
Alternatively Known As: SICK CLV631 Barcode Scanner, SICK Mid Range Line Scanner, SICK Ethernet Barcode Reader, SICK CLV631-6121 Scanner
Technical Specifications
- Version: Mid Range
- Connection type: Ethernet
- Reading field: Oscillating mirror
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Light spot: Circular
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 78 mm to 397 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.25 mm to 0.5 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 350 g without connecting cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial 2,400 Baud to 115.2 kBaud
- Configuration software: SOPAS ET
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.35 kg
Key Features
- Mid range line scanner with fixed optical focus
- Oscillating mirror reading field with adjustable functions
- Visible red laser light spot (655 nm), laser class 2
- Supports reading of all current 1D barcode types
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, PROFIBUS DP
- High scanning frequency from 400 Hz to 1200 Hz
- Robust aluminum die cast housing with IP65 rating
- Integrated LEDs and acoustic indicators for status feedback
- MicroSD memory card support for configuration
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP65 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV631-6121 Mid Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning applications.
