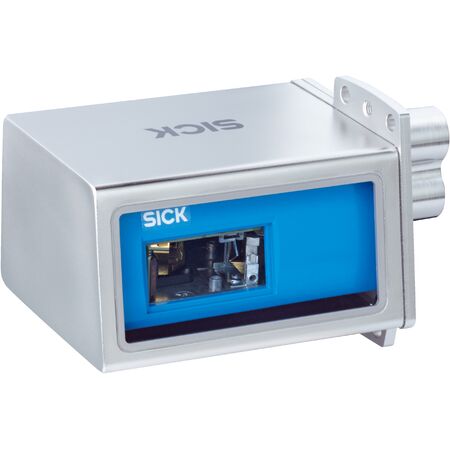

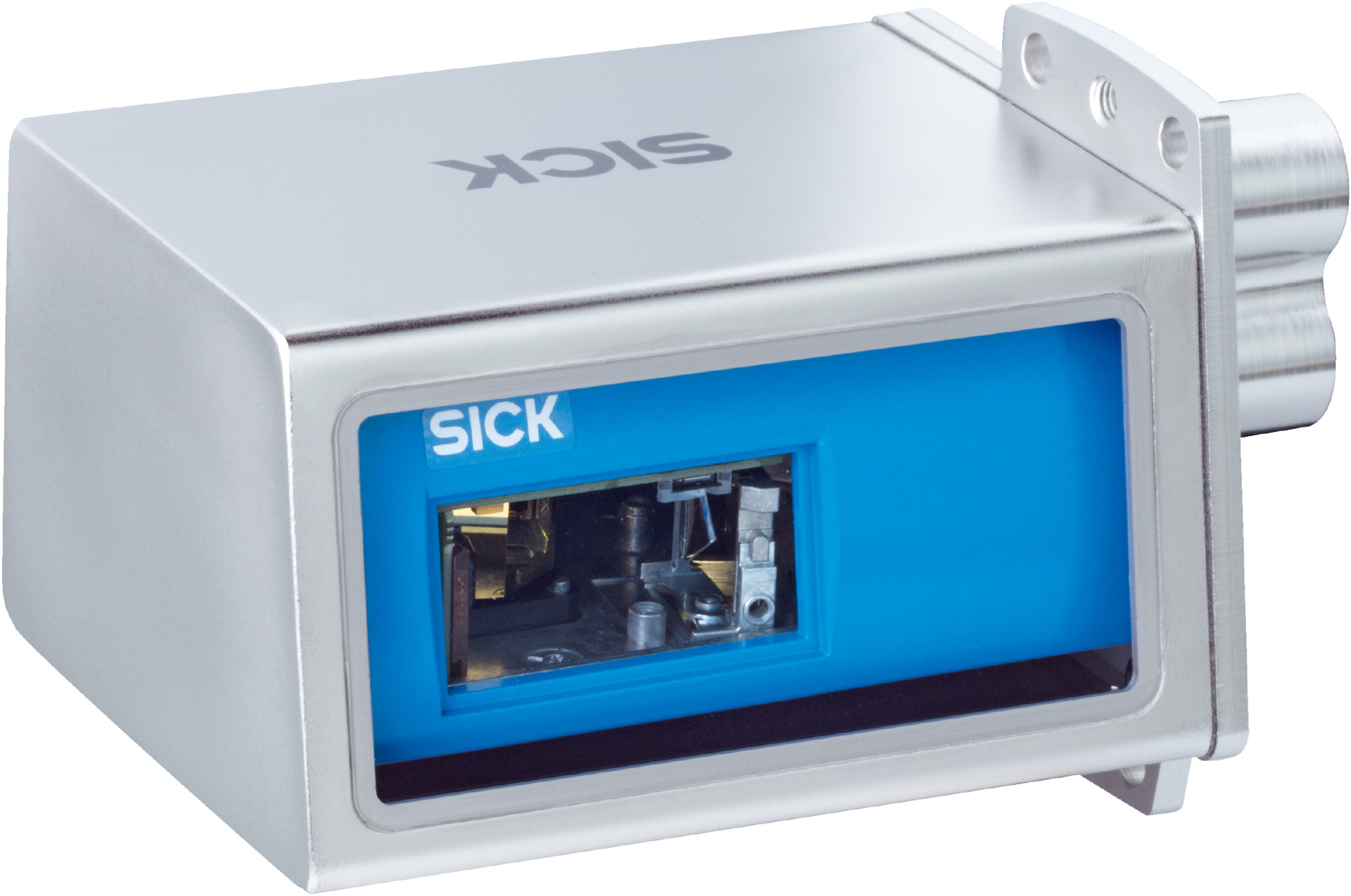

SICK CLV631 Mid Range Line Scanner | Ethernet Connection | IP69K Rated | by SICK
The SICK CLV631 Mid Range Line Scanner is designed for efficient barcode reading in industrial automation. With an Ethernet connection and robust IP69K-rated stainless steel housing, it excels in logistics and manufacturing environments. This line scanner reads 1D barcodes at high scanning frequencies, ensuring quick and reliable data capture for quality assurance and traceability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Mid Range
- Connection type: Ethernet, 2 x M12 connectors
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 95 mm to 430 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.25 mm to 0.5 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Stainless steel
- Window material: Plastic
- Enclosure rating: IP69K
- Protection class: III (EN 61140)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 Mbit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Dimensions (H x L x W): 84mm x 85mm x 154mm
- Weight: 0.89 kg
Key Features
- Mid Range version line scanner with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, UPC, and more
- High scanning frequency from 400 Hz to 1,200 Hz
- Laser class 2 with visible red light spot at 655 nm
- Robust stainless steel housing with IP69K protection rating
- Supports up to 50 codes per reading interval and 5,000 characters
- Multiple digital inputs and outputs for integration
- Configuration via SOPAS ET software
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation with low power consumption of 5 W
- High reliability reduces downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV631-0831S01 Mid Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
