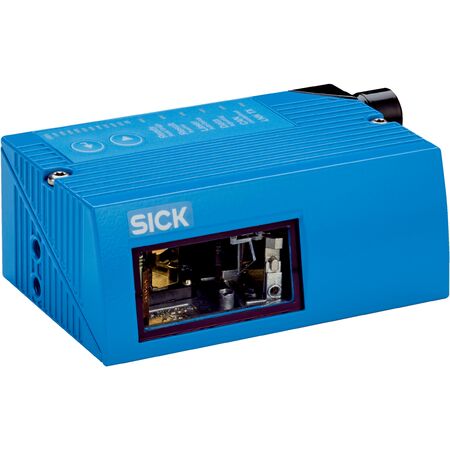

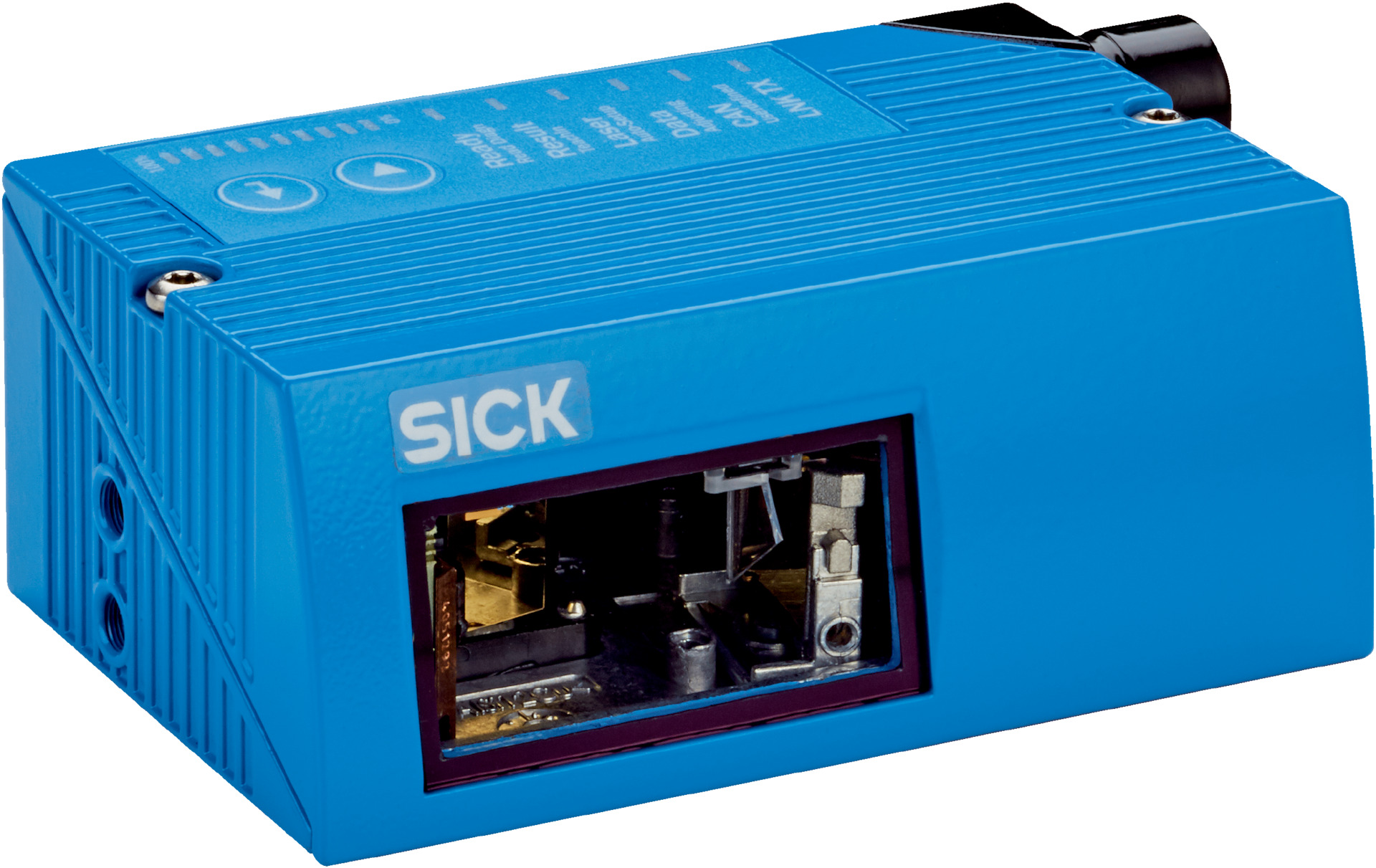

SICK CLV632-0120 Short Range Line Scanner | Ethernet Connection | IP65 Rated | by SICK
The SICK CLV632-0120 Short Range Line Scanner is designed for efficient barcode reading in industrial automation. With a robust IP65 rated aluminum housing and an Ethernet connection supporting multiple fieldbus options, it excels in logistics and manufacturing applications. Its high scanning frequency of 400 Hz to 1200 Hz ensures quick and accurate code verification, making it ideal for quality control and traceability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV632-0120 Short Range Line Scanner | Ethernet Connection | IP65 Rated | by SICK
Brand: SICK
SKU: 1041989
Alternatively Known As: SICK CLV632 Barcode Scanner, SICK Short Range Line Scanner, Ethernet Barcode Reader
Technical Specifications
- Version: Short Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 285 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Bar code types: Code 39, Code 128, Code 93, Codabar, GS1-128, UPC, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional microSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Short range line scanner with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, UPC, and more
- High scanning frequency from 400 Hz to 1200 Hz
- IP65 rated aluminum die cast housing for robust industrial use
- Laser class 2 with visible red light spot at 655 nm
- Multiple digital and acoustic indicators for status and results
- Supports microSD memory card for configuration storage
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and packaging for code verification
- Manufacturing for quality control and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption of 5 W
- Durable aluminum housing reduces need for frequent replacements
- Supports digital data transmission reducing paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV632-0120 Short Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
