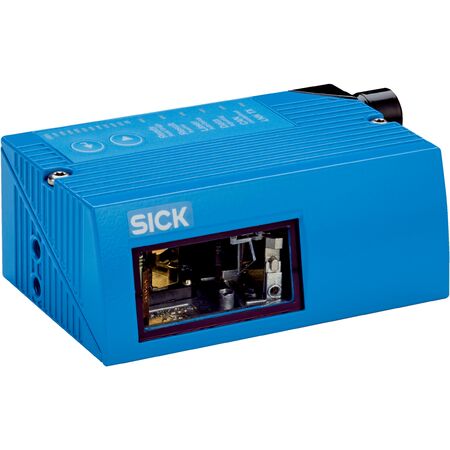

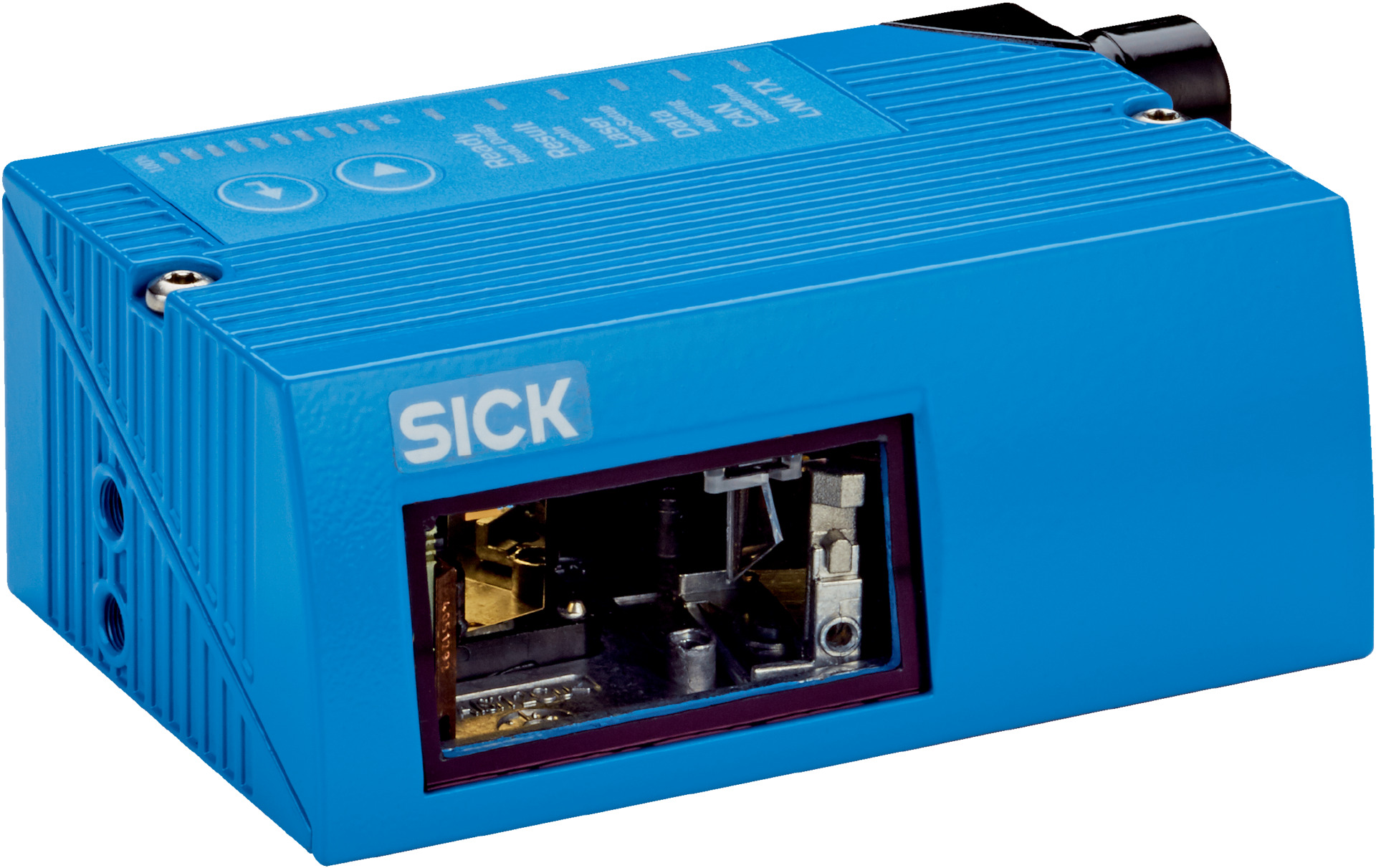

SICK CLV632-1120 Short Range Raster Scanner | Ethernet Connectivity | IP65 Rated | by SICK
The SICK CLV632-1120 Short Range Raster Scanner is designed for efficient barcode reading in industrial automation. With Ethernet connectivity and a robust IP65-rated aluminum housing, it excels in logistics and manufacturing environments. This scanner supports a wide range of 1D barcode formats and features a high scanning frequency, making it ideal for quality control and traceability systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV632-1120 Short Range Raster Scanner | Ethernet Connectivity | IP65 Rated | by SICK
Brand: SICK
SKU: 1041991
Alternatively Known As: SICK CLV632 Raster Scanner, SICK Short Range Barcode Scanner, SICK Ethernet Barcode Reader
Technical Specifications
- Version: Short Range
- Connection type: Ethernet
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Light spot: Circular
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 285 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Raster height and lines at distance: 15 mm, 8 lines at 200 mm
- Connection: 2 x M12 cylindrical connectors (12-pin male, 4-pin female)
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g (without cable)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, Pharmacode, and others
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Short range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- High scanning frequency from 400 Hz to 1200 Hz
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Laser class 2 with visible red light spot at 655 nm
- Multiple digital inputs and outputs with LED and acoustic indicators
- MicroSD memory card support for configuration
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and compliant with local electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 5 W reduces energy usage
- Durable housing extends product lifespan, reducing waste
- Supports efficient industrial automation to minimize resource waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV632-1120 Short Range Raster Scanner is available for immediate purchase, ideal for industrial automation and barcode reading applications.
