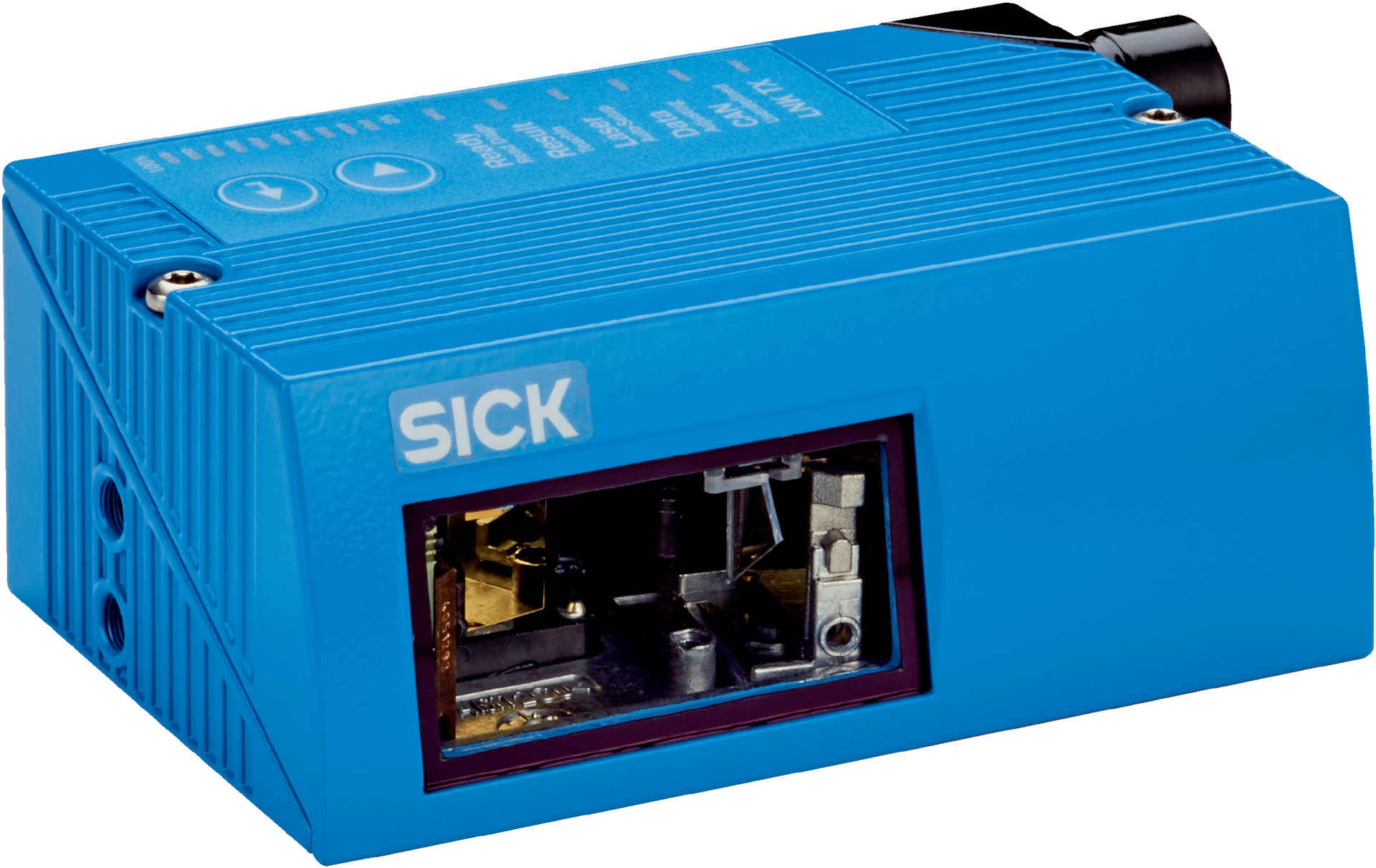

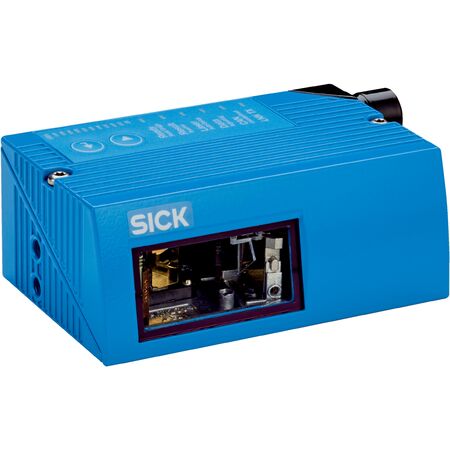

SICK CLV632-1121 Short Range Raster Scanner | Ethernet Connectivity | IP65 Rated | by SICK
The SICK CLV632-1121 Short Range Raster Scanner is designed for efficient barcode reading in industrial automation. With Ethernet connectivity and a high scanning frequency of 400 Hz to 1200 Hz, it reads all current 1D barcode types with precision. Built for robust use, its IP65 rated aluminum housing ensures durability in demanding environments, making it ideal for logistics, manufacturing, and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV632-1121 Short Range Raster Scanner | Ethernet Connectivity | IP65 Rated | by SICK
Brand: SICK
SKU: 1047281
Alternatively Known As: SICK CLV632 Raster Scanner, SICK Short Range Barcode Scanner, SICK Ethernet Barcode Reader
Technical Specifications
- Version: Short Range
- Connection type: Ethernet, 2 x M12 connectors
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 285 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Raster height: 15 mm at 8 lines, 200 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Short range raster scanner with fixed optical focus
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads all current 1D barcode types with high resolution (0.2 mm to 0.5 mm)
- High scanning frequency from 400 Hz to 1200 Hz
- IP65 rated aluminum die cast housing for robust industrial use
- Laser class 2 with visible red light spot (655 nm)
- Multiple digital inputs and outputs with LED and acoustic indicators
- Supports microSD memory card for configuration
- Operating temperature range 0 °C to +40 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 5 W reduces energy usage
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK CLV632-1121 Short Range Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
