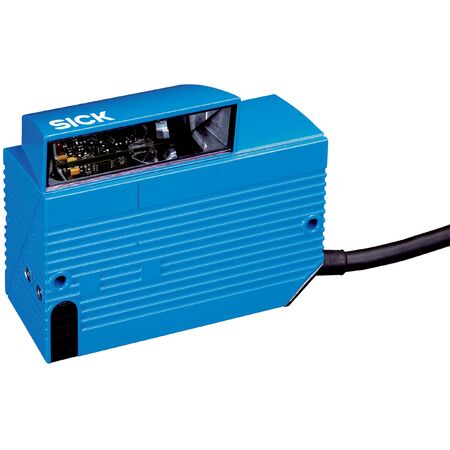

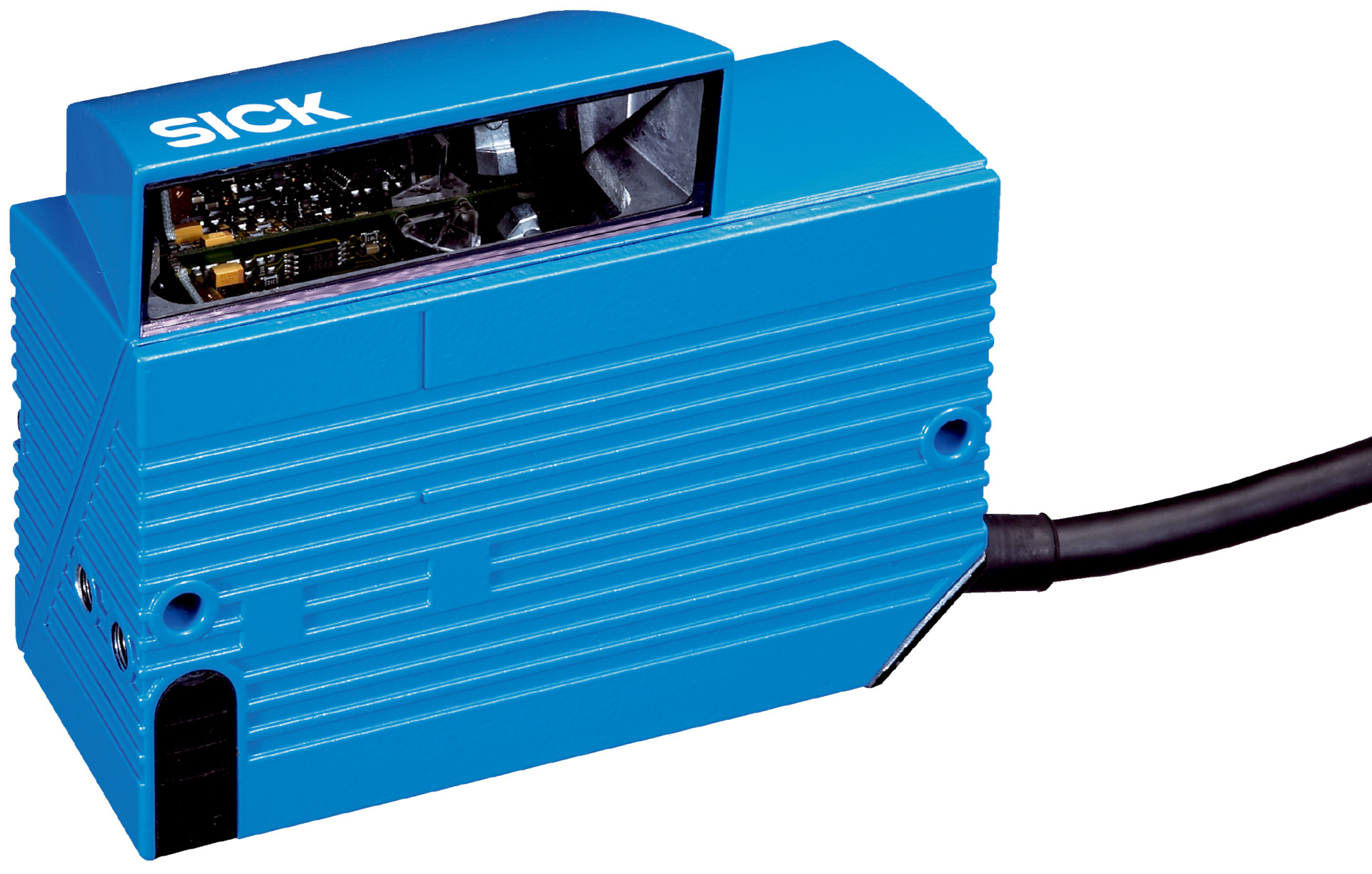

SICK CLV632-2000 Barcode Scanner | Short Range | 105° Reading Field | IP65 Rated | by SICK
The SICK CLV632-2000 barcode scanner is a short-range line scanner designed for industrial automation, logistics, and manufacturing applications. With a 105° reading field and high scanning frequency of 400 Hz to 1,200 Hz, it supports all current 1D barcode types, ensuring efficient and accurate data capture. Its robust aluminum housing with an IP65 rating guarantees durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV632-2000 Barcode Scanner | Short Range | 105° Reading Field | IP65 Rated | by SICK
Brand: SICK
SKU: 1041992
Alternatively Known As: SICK CLV632, CLV632-2000 Barcode Scanner, SICK Line Scanner, Industrial Barcode Reader
Technical Specifications
- Version: Short Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Side (105°)
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: Class 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 256 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 340 g including cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Code 39, Code 128, Code 93, Codabar, GS1-128/EAN 128, UPC/GTIN/EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.34 kg
Key Features
- Short range line scanner with fixed optical focus
- Visible red laser light spot at 655 nm
- Reading field side angle of 105°
- High scanning frequency from 400 Hz to 1,200 Hz
- Supports all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- Multiple interface options including PROFINET, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Light blue housing color (RAL 5012) with glass window
- Digital inputs and outputs for sensor and result signals
- Configuration via SOPAS ET software and optional MicroSD memory card
- Complies with laser safety class 2 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical wiring standards to ensure compliance and optimal performance.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low power consumption of 5 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CLV632-2000 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and manufacturing applications.
