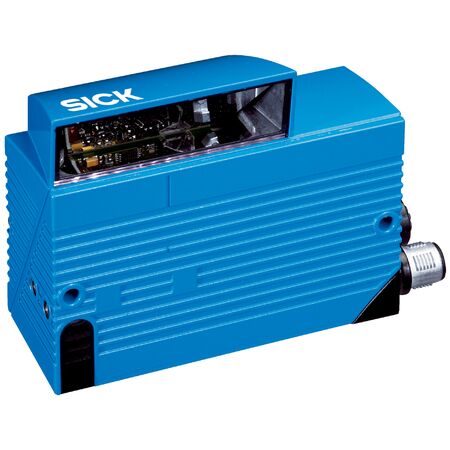

SICK CLV632-2120 Short Range Ethernet Line Scanner | IP65 Rated | 400 Hz to 1,200 Hz Scanning Frequency | by SICK
The SICK CLV632-2120 Short Range Ethernet Line Scanner is designed for efficient industrial barcode reading, featuring a robust aluminum housing and an IP65 rating for durability. With a high scanning frequency of 400 Hz to 1,200 Hz and the ability to read 1D barcodes with resolutions from 0.2 mm to 0.5 mm, it's perfect for logistics, packaging, and manufacturing applications, ensuring quality control and traceability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV632-2120 Short Range Ethernet Line Scanner | IP65 Rated | 400 Hz to 1,200 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1041993
Alternatively Known As: SICK CLV632 Barcode Scanner, SICK Ethernet Line Scanner, SICK Short Range Barcode Reader
Technical Specifications
- Version: Short Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Side (105°)
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 256 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 270 g (without cable)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1-128, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial 2,400 Baud to 115.2 kBaud
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.27 kg
Key Features
- Short range line scanner with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, and PROFIBUS DP
- Reads 1D barcodes with high resolution (0.2 mm to 0.5 mm)
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Laser class 2 with visible red light spot (655 nm)
- Multiple digital inputs and outputs with LED and acoustic indicators
- Supports up to 50 codes per reading interval and up to 5,000 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and packaging for code verification
- Manufacturing for quality control and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient 5 W power consumption reduces operational costs
- Durable IP65 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV632-2120 Short Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
