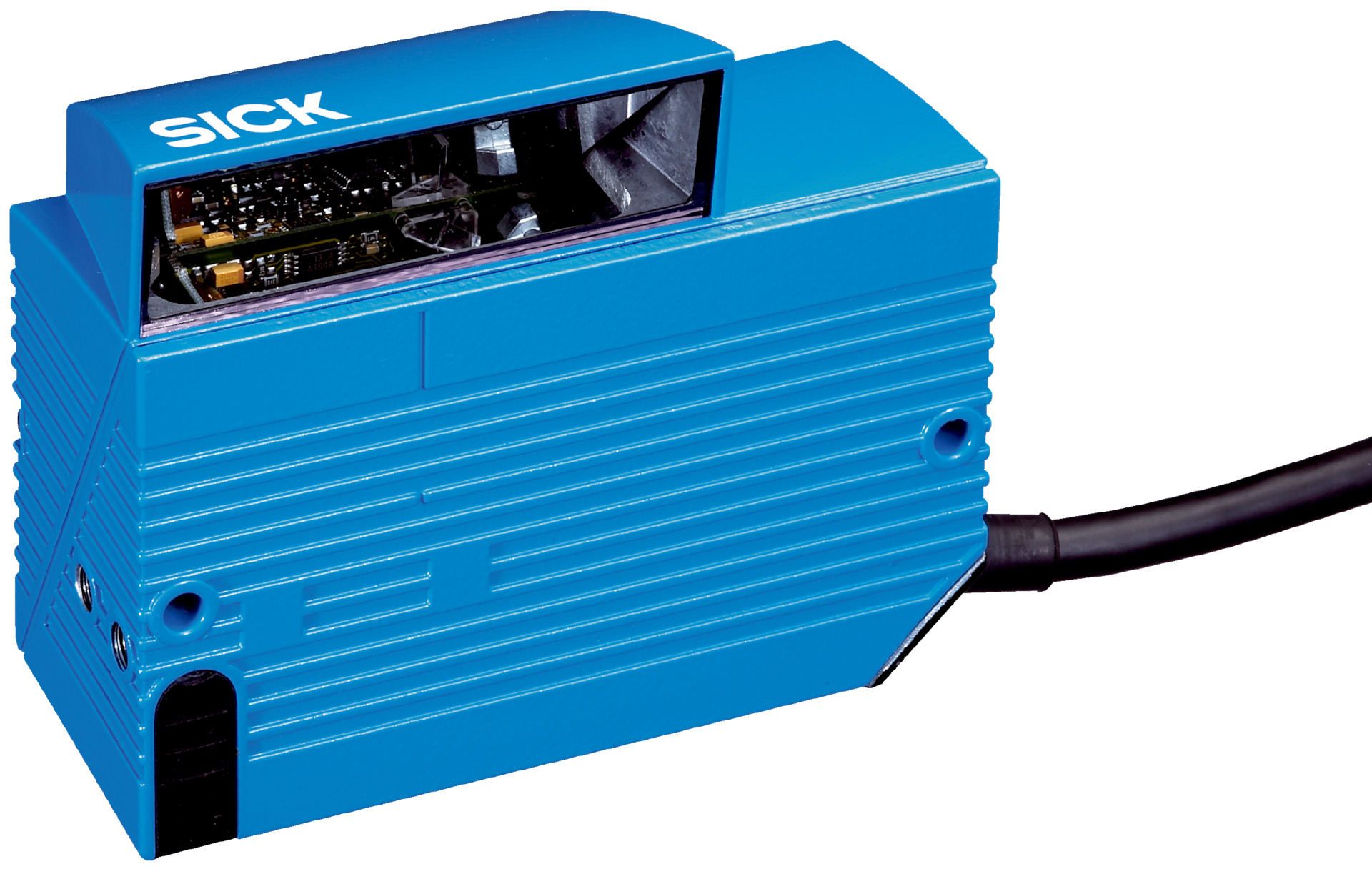

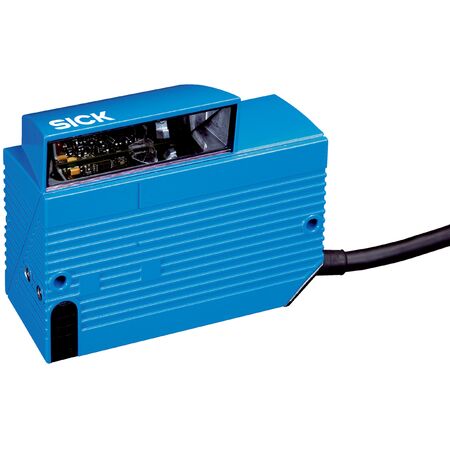

SICK CLV632-3000 Barcode Scanner | Short Range Raster Scanner | IP65 Rated | High Scanning Frequency | by SICK
The SICK CLV632-3000 Barcode Scanner is a short-range raster scanner designed for industrial automation, logistics, and manufacturing applications. With a robust aluminum die-cast housing and an IP65 rating, it ensures durability in demanding environments. This scanner reads 1D barcodes, including Code 39 and Code 128, at a high scanning frequency of 400 Hz to 1,200 Hz, making it ideal for quality control and tracking tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV632-3000 Barcode Scanner | Short Range Raster Scanner | IP65 Rated | High Scanning Frequency | by SICK
Brand: SICK
SKU: 1041994
Alternatively Known As: SICK CLV632, SICK Raster Scanner, SICK Barcode Scanner, CLV632-3000 Barcode Reader
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Reading field: Side (105°)
- Optical focus: Fixed
- Light source: Visible red laser, 655 nm
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 256 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Interfaces: PROFINET, EtherCAT, CAN, CANopen, PROFIBUS DP, Serial (RS-232, RS-422, RS-485)
- Digital inputs: 4
- Digital outputs: 4
- Operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.34 kg
Key Features
- Short range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple interface options including PROFINET, EtherCAT, CAN, and Serial
- Laser class 2 with visible red light spot at 655 nm
- Supports up to 50 codes per reading interval and 5,000 characters
- Equipped with 6 LEDs and acoustic indicators for status feedback
- Operating temperature range 0°C to +40°C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehousing for code scanning
- Manufacturing for quality control and tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 5 W reduces energy usage
- Durable housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV632-3000 Short Range Raster Scanner is available for immediate purchase, ideal for industrial barcode scanning applications.
