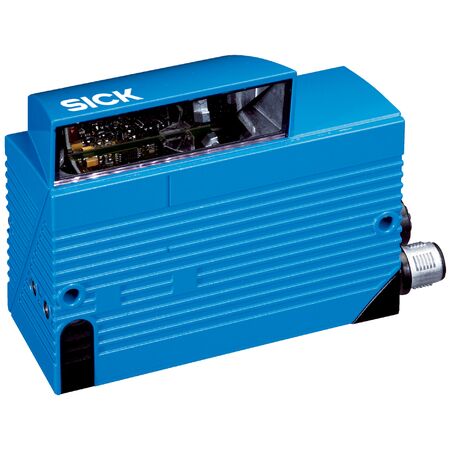

SICK CLV632-3120 Short Range Raster Scanner | Ethernet Connectivity | IP65 Rated | by SICK
The SICK CLV632-3120 Short Range Raster Scanner is designed for efficient barcode reading in industrial automation. With Ethernet connectivity and a robust IP65-rated aluminum housing, it excels in logistics and manufacturing environments. This scanner supports all current 1D barcode types and features a high scanning frequency of 400 Hz to 1200 Hz, ensuring quick and reliable performance for quality assurance and traceability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV632-3120 Short Range Raster Scanner | Ethernet Connectivity | IP65 Rated | by SICK
Brand: SICK
SKU: 1041995
Alternatively Known As: SICK CLV632 Raster Scanner, SICK Short Range Barcode Scanner, SICK Ethernet Barcode Reader
Technical Specifications
- Version: Short Range
- Connection type: Ethernet
- Reading field: Side (105°)
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Light spot: Circular
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 256 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Raster height and number of lines: 15 mm, 8 lines at 185 mm
- Connection type: 2 x M12 cylindrical connectors (12-pin male, 4-pin female)
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Housing color: Light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 270 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.27 kg
Key Features
- Short range raster scanner with fixed optical focus
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads all current 1D barcode types with high scanning frequency (400 Hz to 1200 Hz)
- Laser class 2 with visible red light spot (655 nm)
- Robust aluminum die cast housing with IP65 rating
- Multiple digital inputs and outputs with LED and acoustic indicators
- MicroSD memory card support for configuration
- High MTBF of 100,000 hours
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (5 W)
- Durable construction reduces replacement frequency and waste
- Supports digital communication reducing need for additional hardware
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV632-3120 Short Range Raster Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
