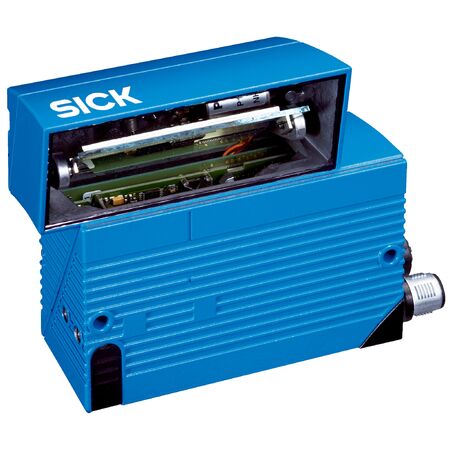

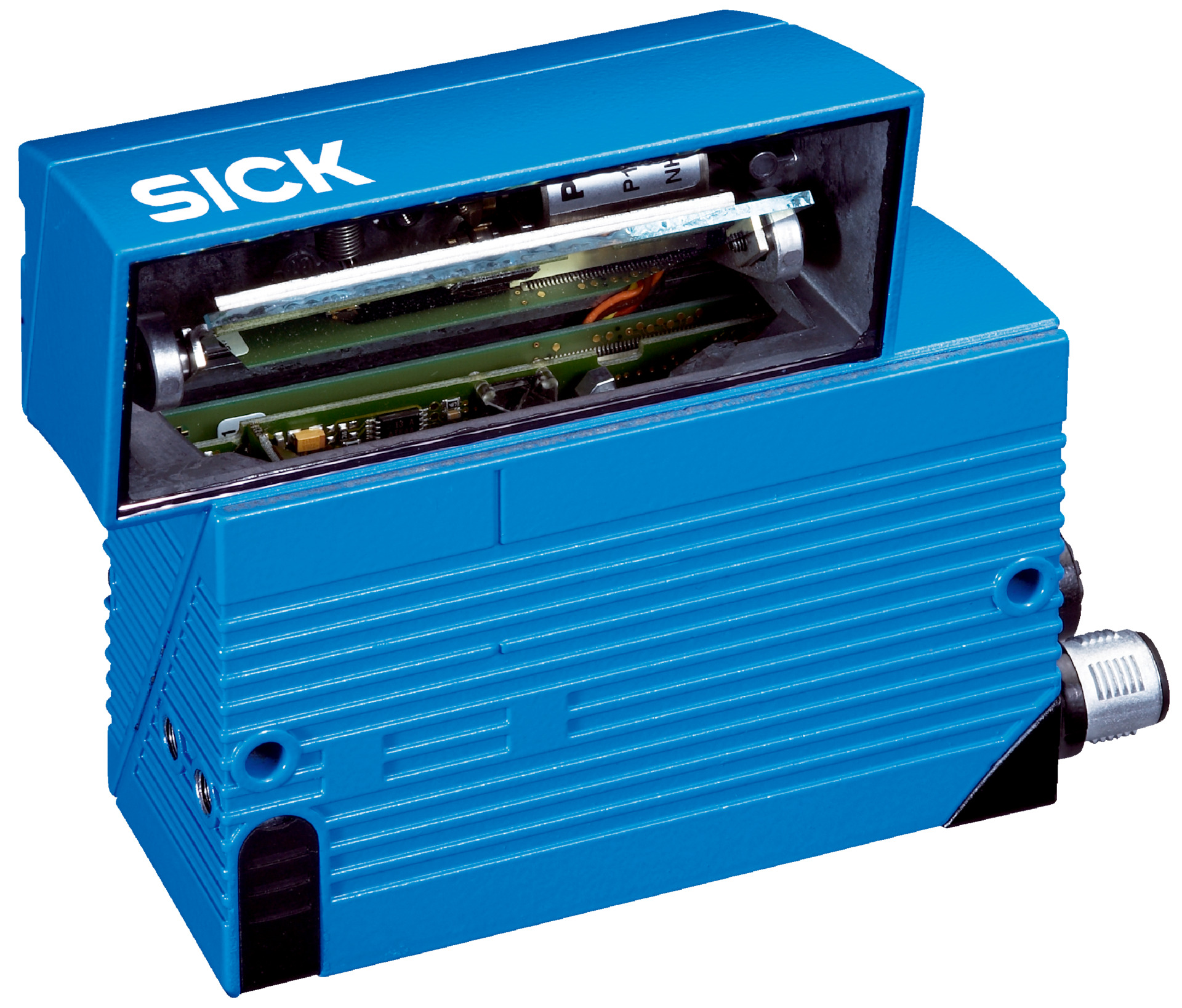

SICK CLV632-6120 Short Range Barcode Scanner | Ethernet Connection | IP65 Rated | by SICK
The SICK CLV632-6120 Short Range Barcode Scanner is designed for efficient industrial automation, featuring a robust Ethernet connection and an IP65-rated aluminum housing. With a high scanning frequency of 400 Hz to 1200 Hz and the ability to read all current 1D barcode types, it's perfect for logistics, packaging, and manufacturing applications, ensuring quality control and traceability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV632-6120 Short Range Barcode Scanner | Ethernet Connection | IP65 Rated | by SICK
Brand: SICK
SKU: 1041997
Alternatively Known As: SICK CLV632 Barcode Scanner, SICK Ethernet Line Scanner, SICK Short Range Barcode Reader
Technical Specifications
- Version: Short Range
- Connection type: Ethernet, 2 x M12 connectors
- Reading field: Oscillating mirror
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 45 mm to 245 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Oscillating mirror functions: Fixed (adjustable), oscillating (variable/fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 350 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, Pharmacode, MSI/Plessey
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, EtherCAT, Serial (RS-232/422/485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.35 kg
Key Features
- Short range line scanner with fixed optical focus
- Oscillating mirror with adjustable position and variable amplitude
- Reads all current 1D barcode types including Code 39, Code 128, GS1 DataBar
- High scanning frequency from 400 Hz to 1200 Hz
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Laser class 2 with visible red light spot at 655 nm
- Supports up to 50 codes per reading interval and 5000 characters
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and packaging for code verification
- Manufacturing for quality control and traceability
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV632-6120 Short Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
