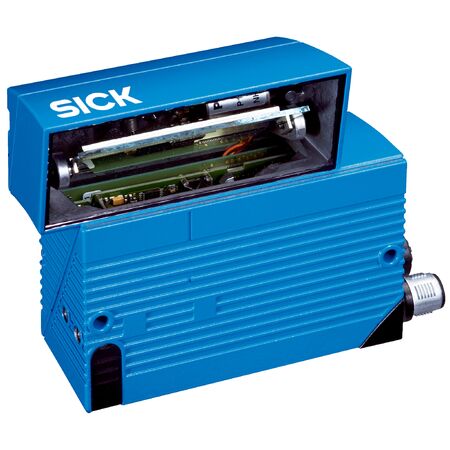

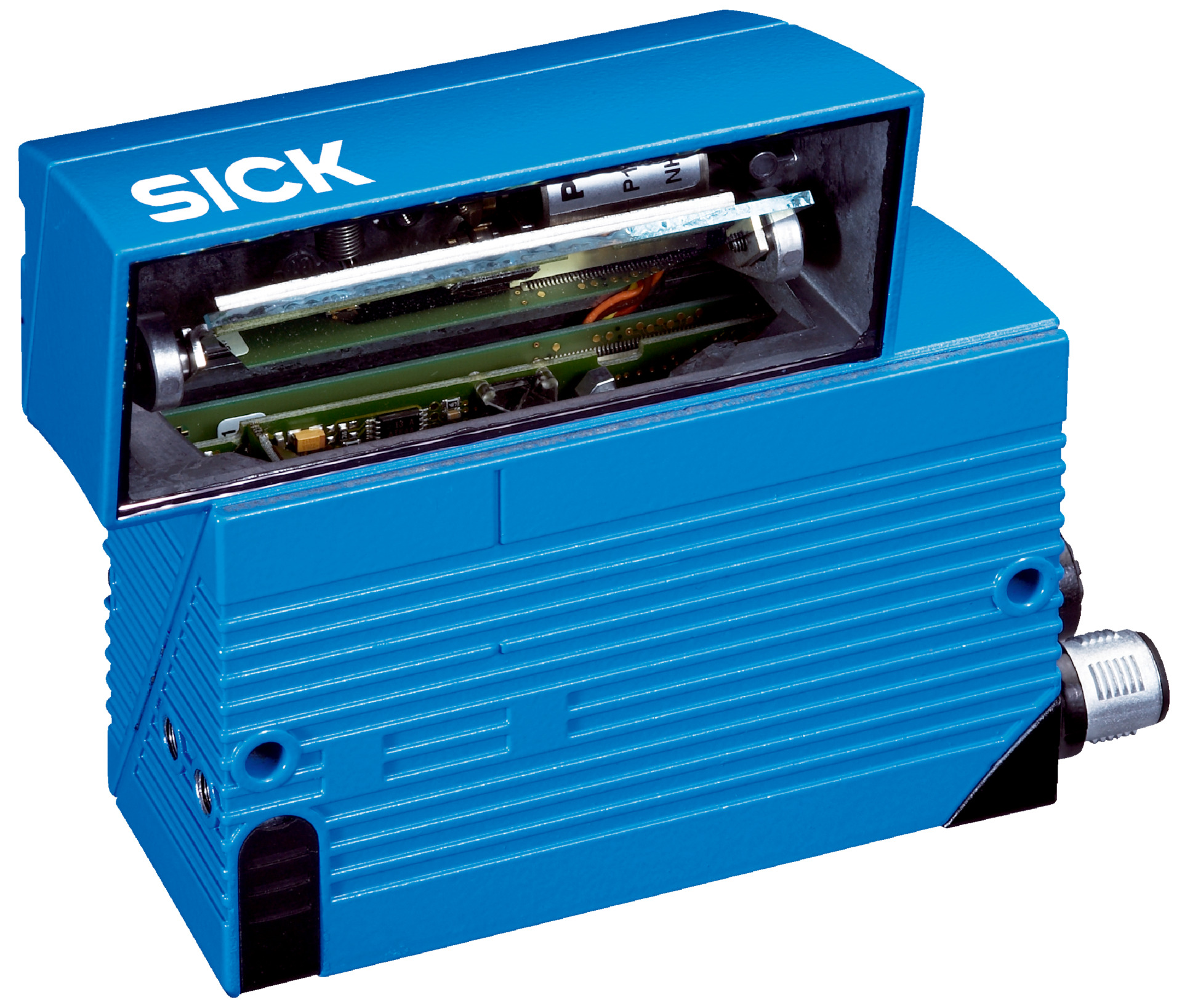

SICK CLV632-6121 Short Range Line Scanner | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
The SICK CLV632-6121 Short Range Line Scanner is designed for efficient barcode reading in industrial automation. With a high scanning frequency of 400 Hz to 1200 Hz and the ability to read all current 1D barcode types, it’s perfect for logistics, packaging, and quality control applications. Its robust IP65 rated aluminum housing ensures durability in demanding environments, making it a reliable choice for your barcode scanning needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV632-6121 Short Range Line Scanner | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1046368
Alternatively Known As: SICK CLV632 Barcode Scanner, SICK Short Range Line Scanner, SICK Ethernet Barcode Reader
Technical Specifications
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Oscillating mirror
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm, Class 2
- Aperture angle: ≤ 50°
- Reading distance: 45 mm to 245 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Oscillating mirror functions: Fixed (adjustable), oscillating (variable/fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 350 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Bar code types: Code 39, Code 128, Code 93, Codabar, GS1-128, UPC, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5000 (500 for multiplexer function)
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.35 kg
Key Features
- Short range line scanner with fixed optical focus
- Oscillating mirror with adjustable position and variable amplitude
- Reads all current 1D barcode types including Code 39, Code 128, GS1 DataBar
- High scanning frequency from 400 Hz to 1200 Hz
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, PROFIBUS DP
- IP65 rated aluminum die cast housing for robust industrial use
- Laser class 2 with visible red light spot at 655 nm
- Supports up to 50 codes per reading interval and 5000 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and packaging for 1D code scanning
- Quality control in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient 6 W power consumption reduces operational costs
- Durable IP65 housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV632-6121 Short Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
