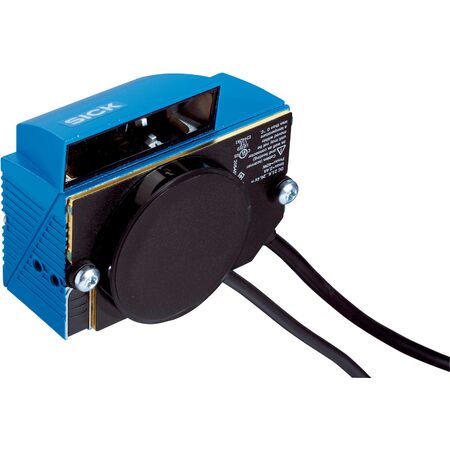

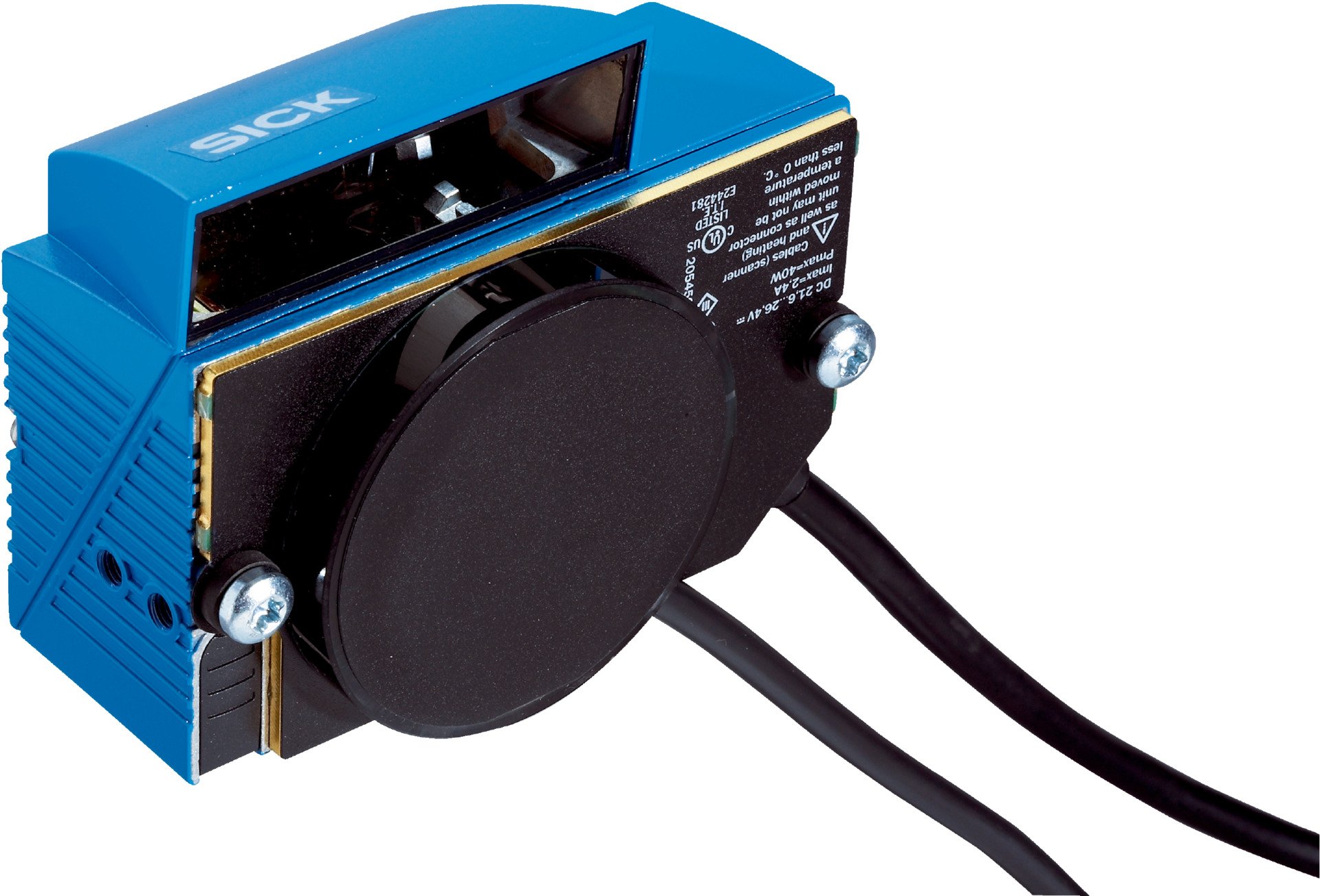

SICK CLV632 Barcode Scanner | Short Range Line Scanner | IP65 Rated | 105° Reading Field | by SICK
The SICK CLV632 Barcode Scanner is a short-range line scanner designed for industrial automation and cold storage applications. With a fixed optical focus and a reading field side angle of 105°, it efficiently reads all current 1D barcode types. Its robust aluminum housing and IP65 rating ensure durability, while the high scanning frequency of 400 Hz to 1200 Hz enhances productivity in manufacturing and logistics environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Short Range
- Connection type: Cable with 15-pin D-Sub HD male connector and open-ended cable
- Reading field: Side 105°
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: Class 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 256 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Heating: Included for cold storage
- Supply voltage: ≤ 24 V DC, ±10%
- Power consumption: 40 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 540 g including cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1-128, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 50mm x 80mm x 96mm
- Weight: 0.54 kg
Key Features
- Short range line scanner with fixed optical focus
- Visible red laser light spot at 655 nm
- Reading field side angle of 105°
- High scanning frequency from 400 Hz to 1200 Hz
- Supports all current 1D barcode types
- Heating for cold storage applications
- Robust aluminum die cast housing with IP65 rating
- Multiple fieldbus interfaces including PROFINET, EtherCAT, CAN, PROFIBUS DP
- Digital inputs and outputs for sensor and result integration
- LED and acoustic indicators for status and results
- Configuration via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial barcode scanning systems and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Cold storage barcode scanning
- Label and package code verification
- Manufacturing and logistics code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable housing extends product life and reduces waste
- Supports cold storage applications reducing need for multiple devices
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV632-2000F0 barcode scanner is available for immediate purchase, ideal for industrial automation and cold storage barcode reading applications.
