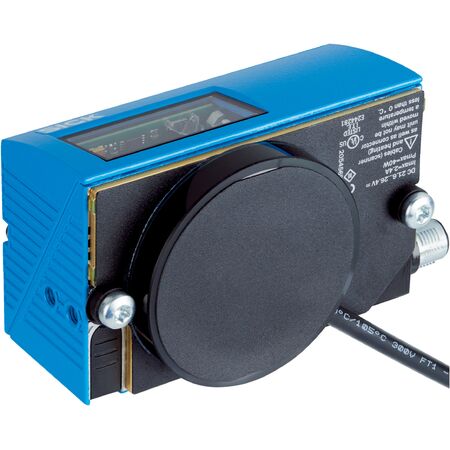

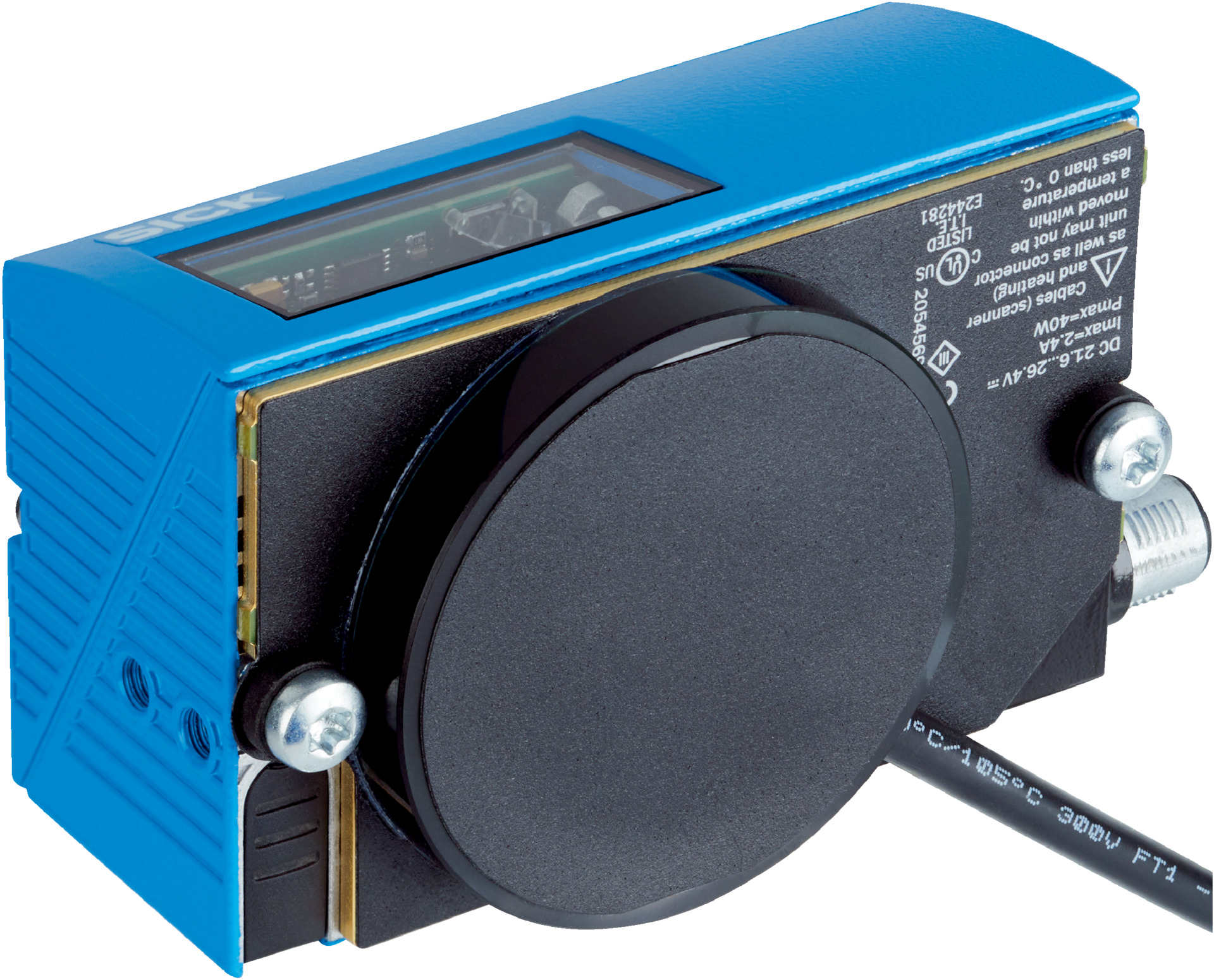

SICK CLV632 Raster Scanner | Short Range | Ethernet Connectivity | IP65 Rated | by SICK
The SICK CLV632 raster scanner is designed for short-range barcode reading, featuring Ethernet connectivity and a robust IP65-rated aluminum housing. Ideal for industrial automation and cold storage applications, it offers high scanning frequencies from 400 Hz to 1200 Hz and supports all current 1D barcode types, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Short Range
- Connection type: Ethernet, 2 x M12 connectors, 1 x 3-wire cable
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser spot, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 285 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Raster height: 15 mm at 8 lines, 200 mm distance
- Heating: Included for cold storage
- Supply voltage: ≤ 24 V DC ± 10%
- Power consumption: 40 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 450 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 Mbit/s, CAN 20 kbit/s to 1 Mbit/s, Serial 2,400 to 115.2 kBaud
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 50mm x 61mm x 96mm
- Weight: 0.45 kg
Key Features
- Short range raster scanner with fixed optical focus
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Laser class 2 with visible red light spot at 655 nm
- High scanning frequency from 400 Hz to 1200 Hz
- Heating for cold storage applications
- Robust aluminum die cast housing with IP65 rating
- Multiple digital and acoustic indicators for status and results
- Supports reading of all current 1D barcode types
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Cold storage environments
- High-speed scanning in manufacturing lines
- Logistics and warehouse code verification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable housing reduces need for frequent replacements
- Energy-efficient operation with low power consumption of 40 W
- Supports cold storage applications reducing need for additional heating equipment
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK CLV632-1120F0 raster scanner is available for immediate purchase, ideal for industrial barcode scanning applications including cold storage and manufacturing environments.
