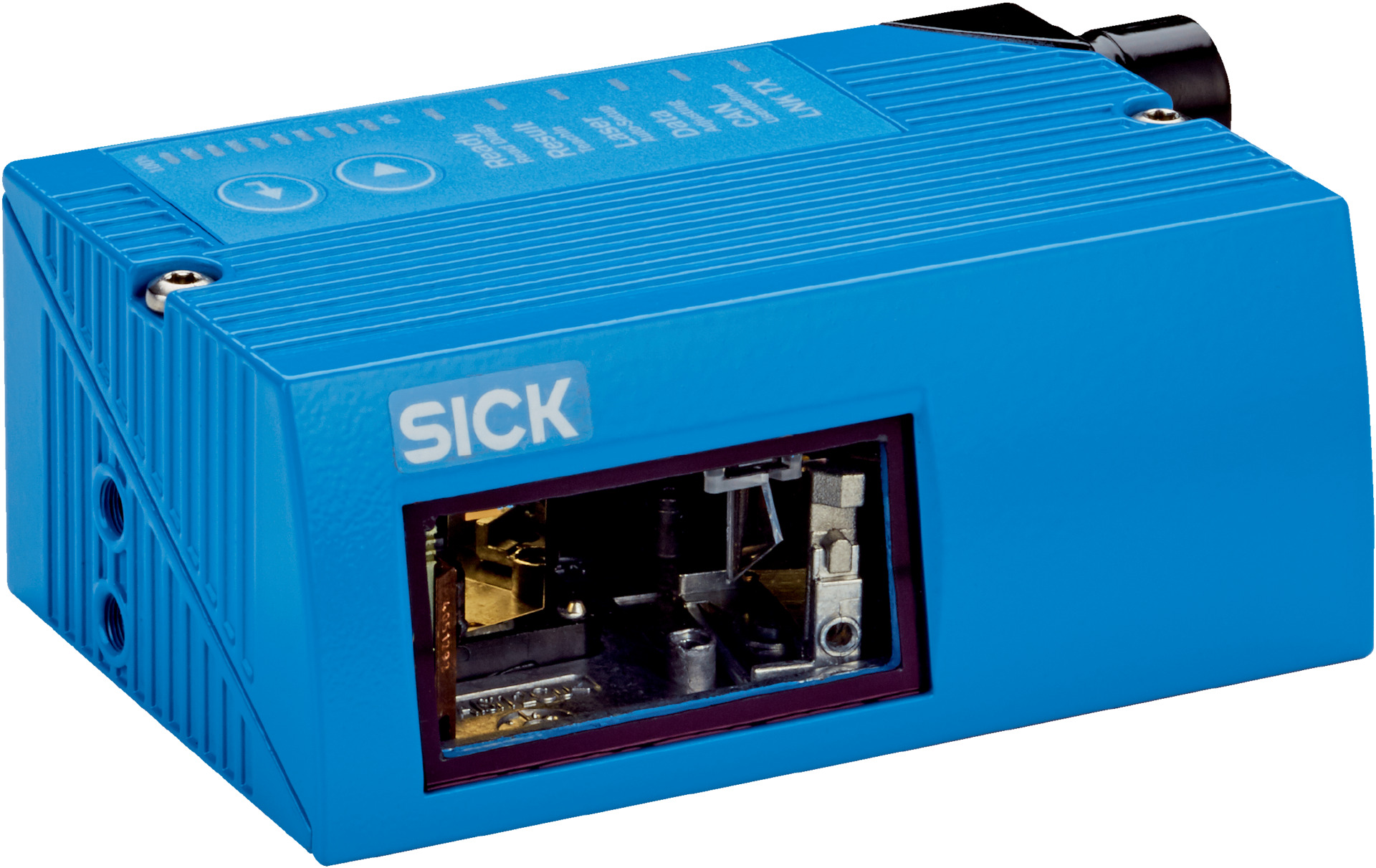

SICK CLV632 Short Range Ethernet Line Scanner | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
The SICK CLV632 Short Range Ethernet Line Scanner is designed for efficient barcode reading in industrial automation. With a robust aluminum housing and an IP65 rating, it ensures durability in demanding environments. This scanner features a high scanning frequency of 400 to 1200 Hz and reads 1D barcodes with resolutions from 0.2 mm to 0.5 mm, making it ideal for logistics, packaging, and manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV632 Short Range Ethernet Line Scanner | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1047280
Alternatively Known As: SICK CLV632 Barcode Scanner, SICK Ethernet Line Scanner, SICK Short Range Barcode Reader
Technical Specifications
- Version: Short Range
- Connection type: Ethernet, 2 x M12 connectors
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 285 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 Mbit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Short range line scanner with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes with high resolution (0.2 mm to 0.5 mm)
- Laser class 2 with visible red light spot (655 nm)
- High scanning frequency from 400 Hz to 1200 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple digital and acoustic indicators for status and results
- Supports up to 50 codes per reading interval and 5000 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and packaging for code verification
- Manufacturing for quality control and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 5 W reduces energy usage
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

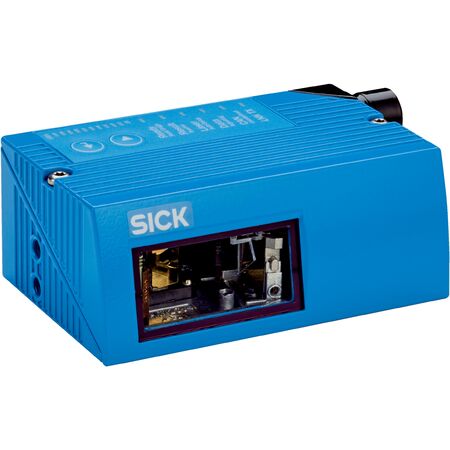

The SICK CLV632-0121 Short Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
